IGNITION COIL AND SPARK PLUG (for Sedan): Components: Illustration

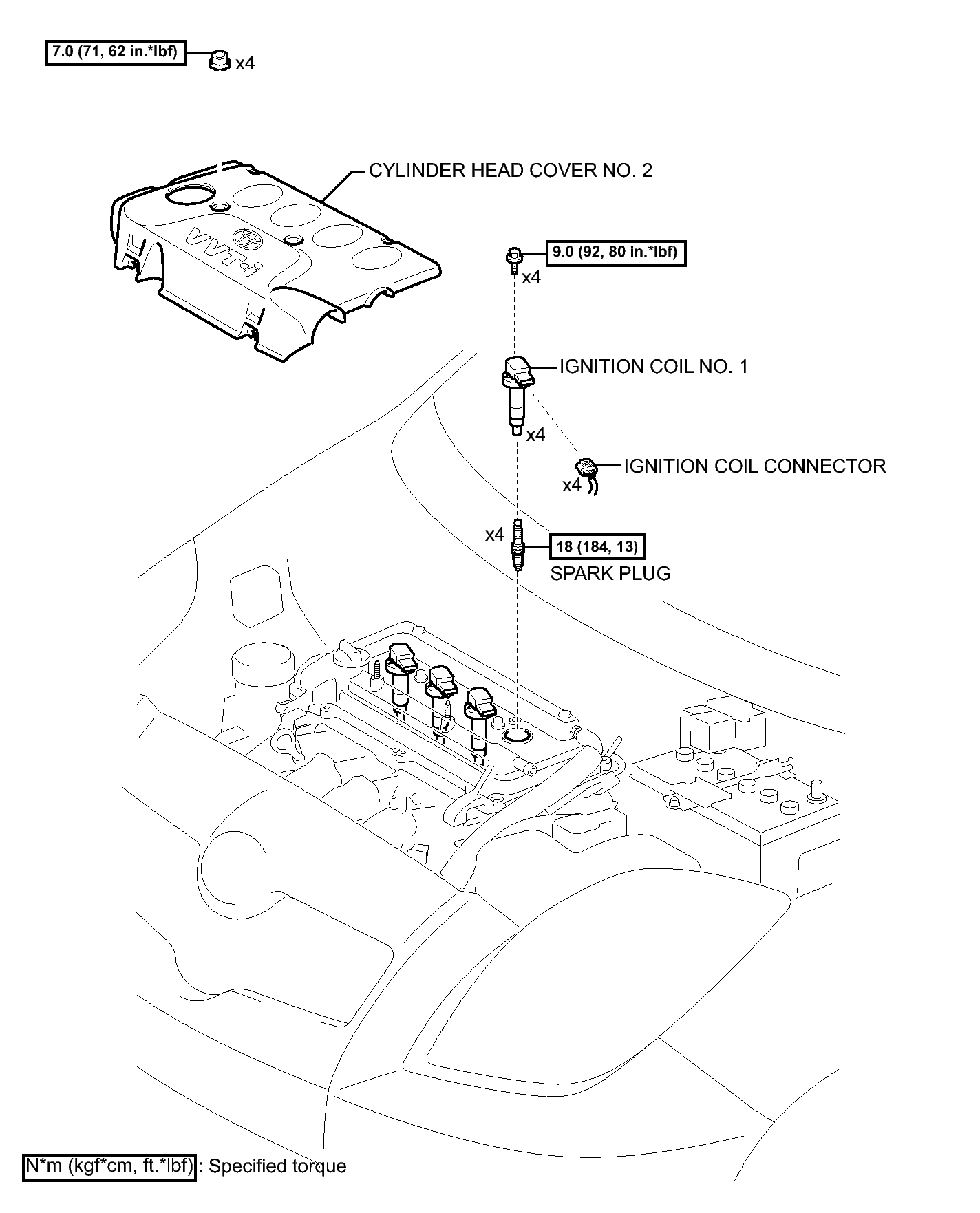

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (For Sedan)
GTY325169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
