ENGINE COOLANT TEMPERATURE SENSOR (for Hatchback): Components: Illustration

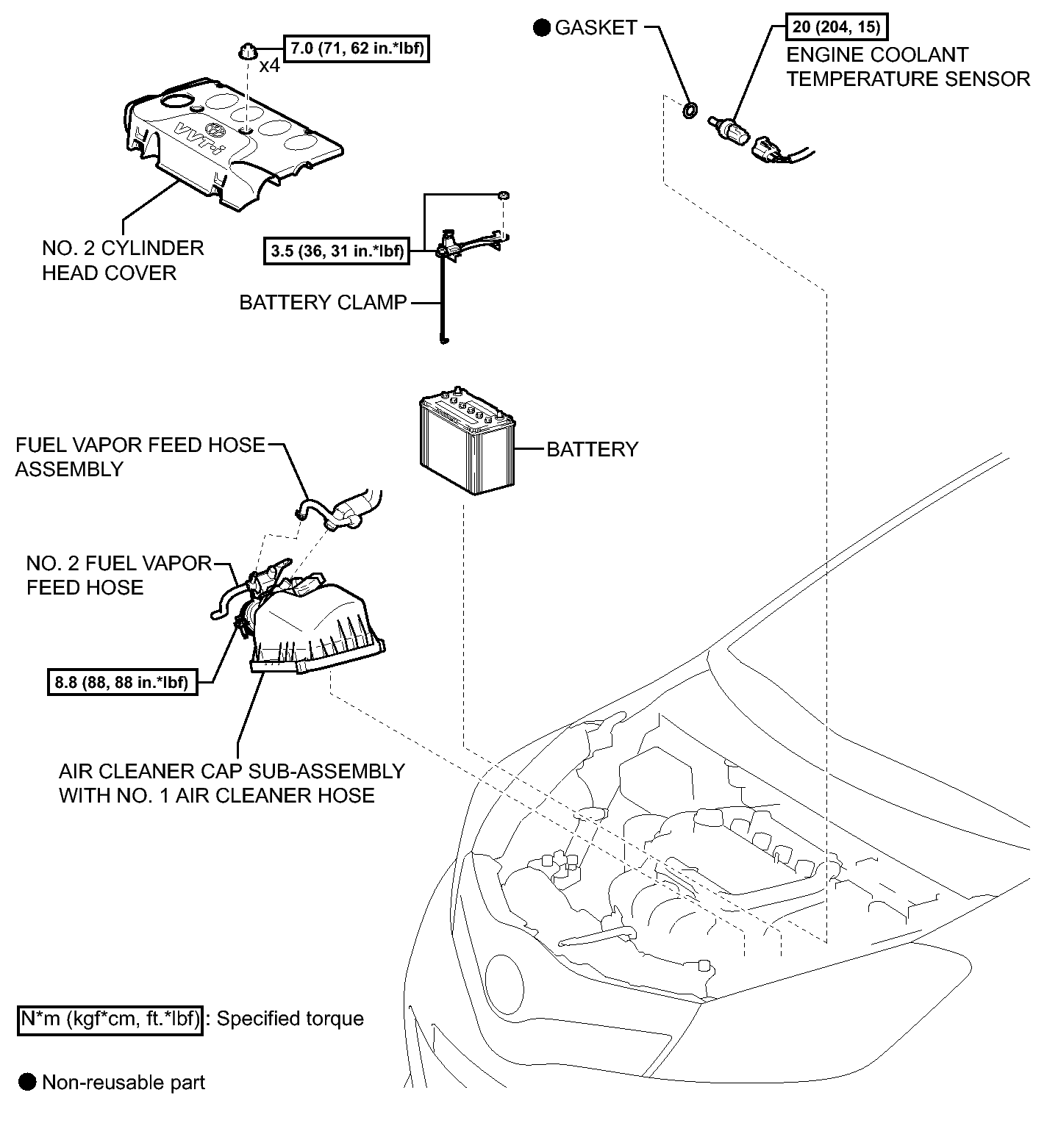

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (For Hatchback)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
