Multiplex Communication System (CAN) (S/D): Notes

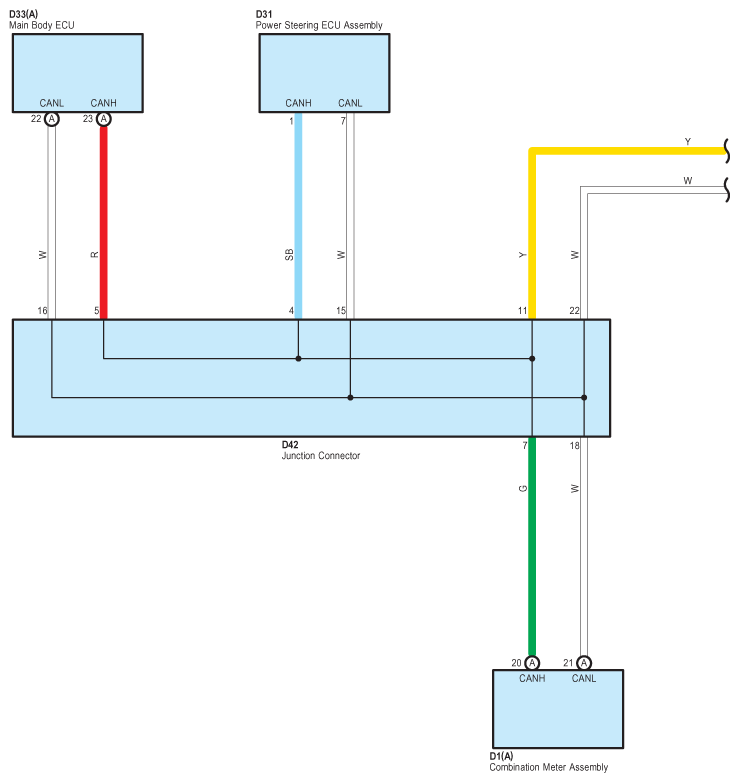

Fig 1: Multiplex Communication System (CAN) (S/D) Wiring Diagram (1 Of 2)
G09112702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

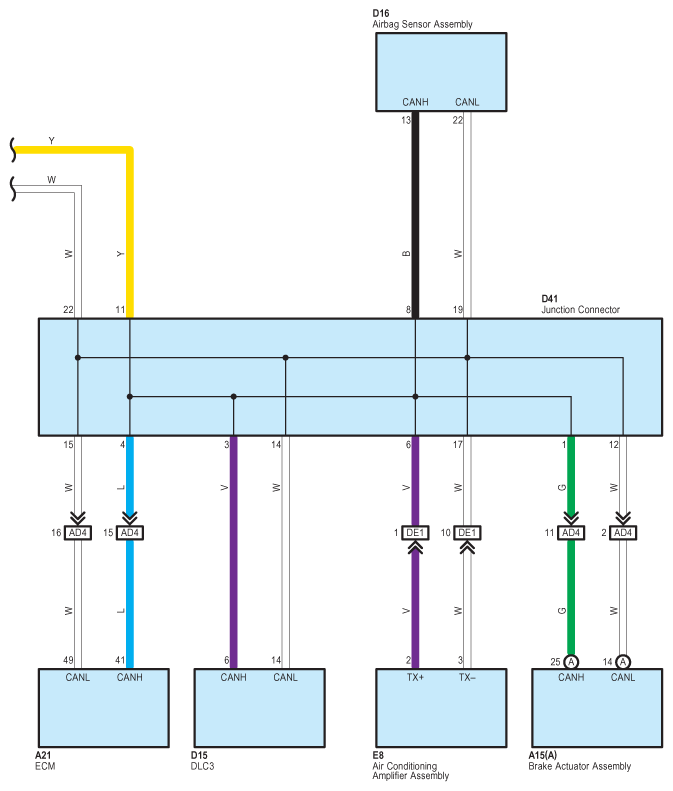

Fig 2: Multiplex Communication System (CAN) (S/D) Wiring Diagram (2 Of 2)
G09112703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
