Toyota
>>
2013
>>
Yaris SE, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Front Fog Light (S/D)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front Fog Light (S/D): Notes

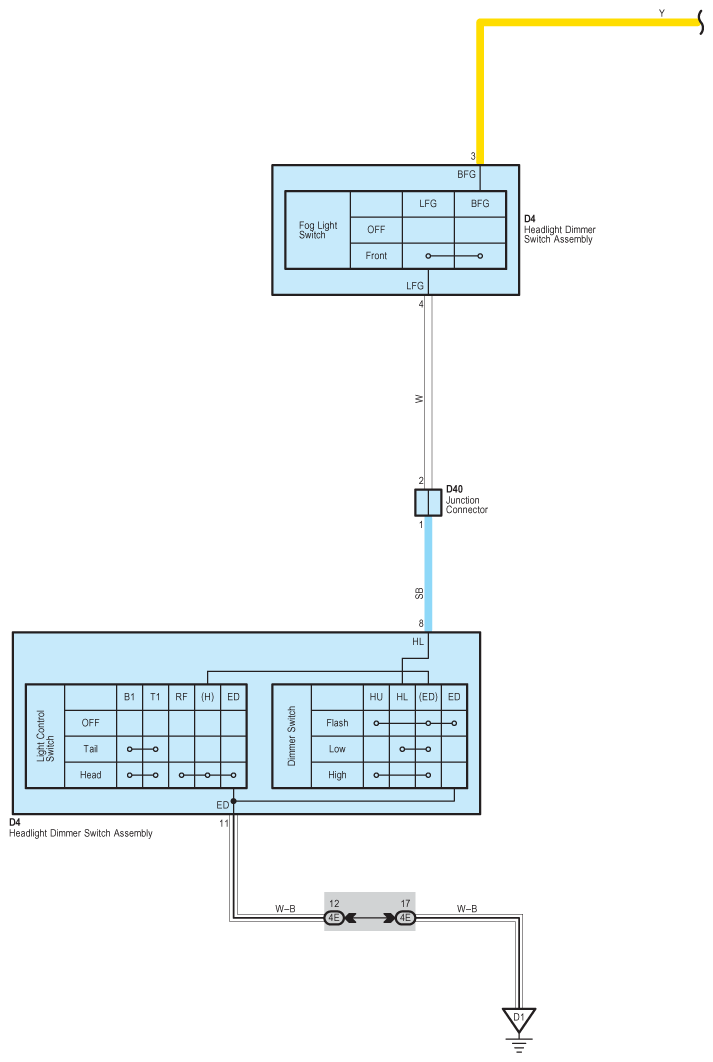

Fig 1: Front Fog Light (S/D) System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

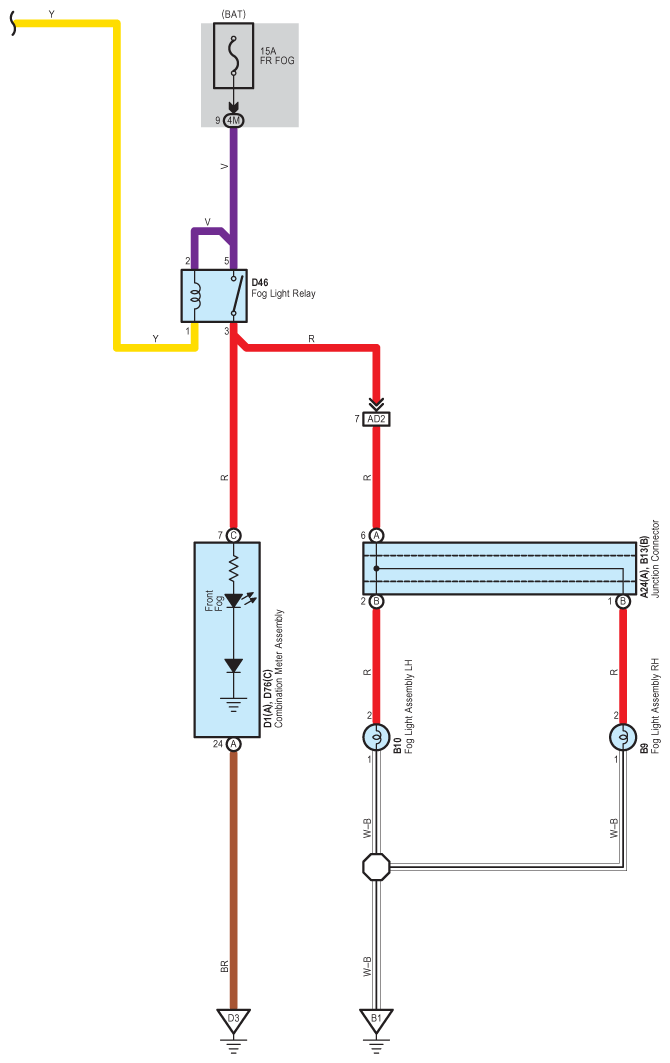

Fig 2: Front Fog Light (S/D) System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
