CRANKSHAFT POSITION SENSOR (for Hatchback): Removal: Removal

  1. REMOVE ENGINE UNDER COVER RH
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

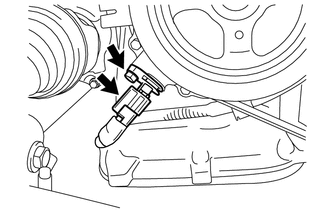

      Fig 1: Identifying Crankshaft Position Sensor Connector & Bolt
      GTY342867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor.
