Power Window Control System
>>
Parts Location
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parts Location: Illustration

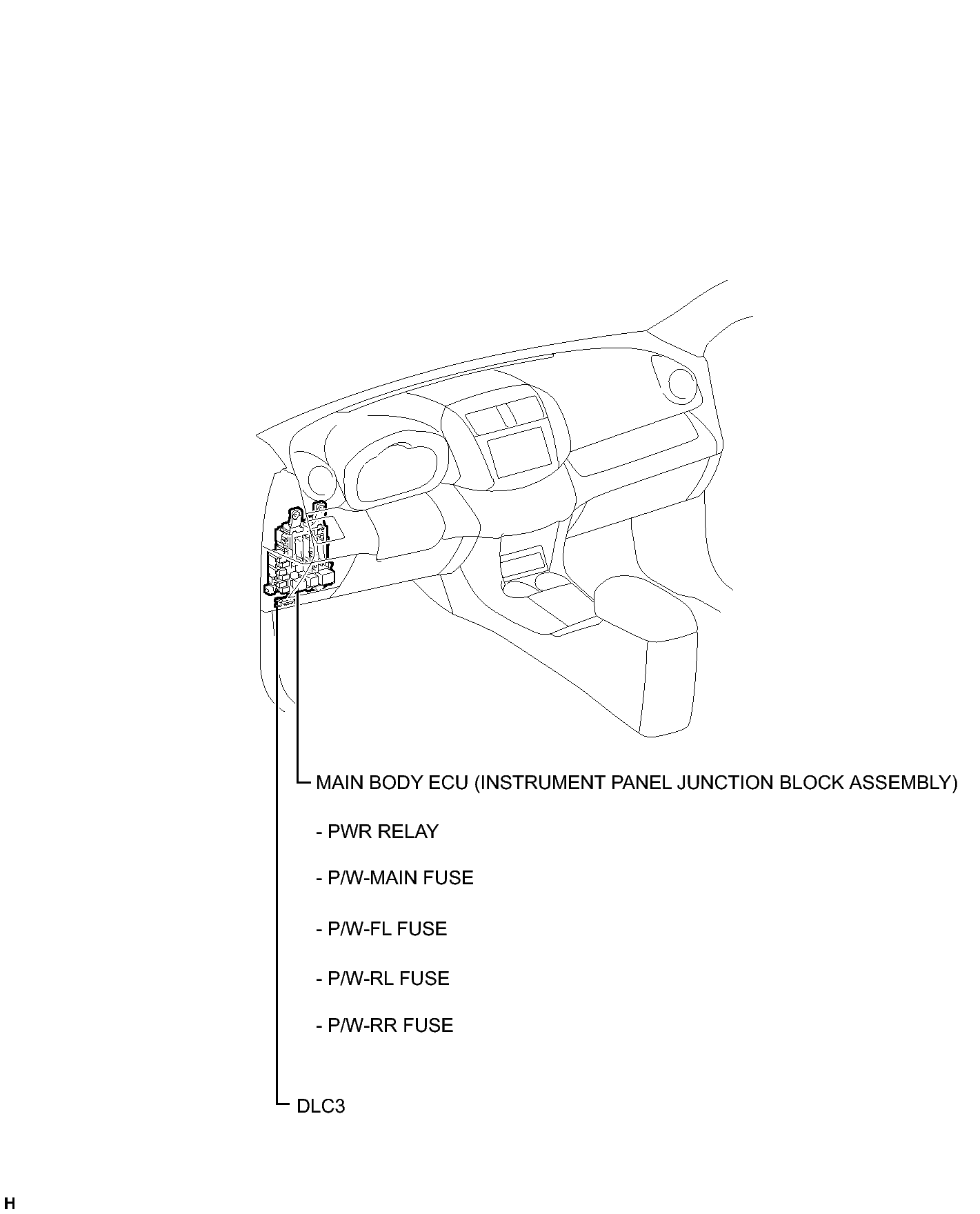

Fig 1: Identifying Power Window Control System Component Locations (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

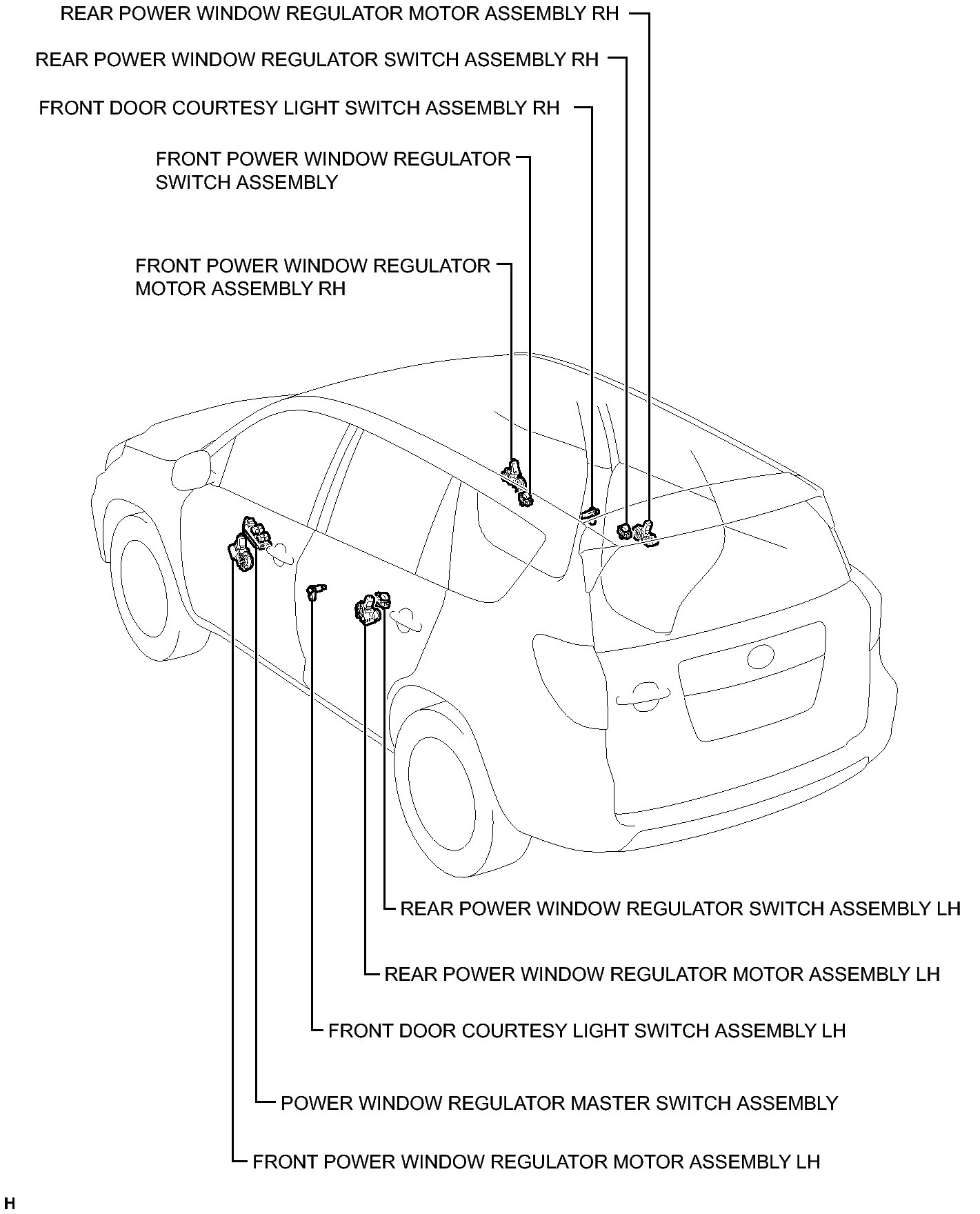

Fig 1: Identifying Power Window Control System Component Locations (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
