Ambient Temperature Sensor: Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT AMBIENT TEMPERATURE SENSOR
    1. Measure the resistance according to the value(s) in the table below.

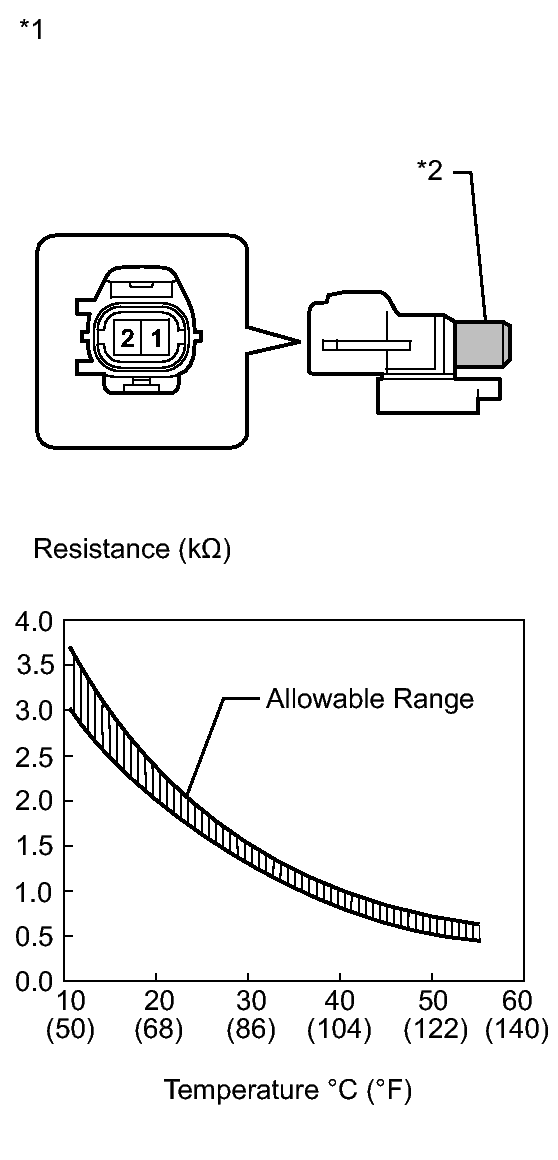

      Fig 1: Identifying Ambient Temperature Sensor Sensing Portion & Allowable Range Of Resistance Graph
      GTY225407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 10°C (50°F) 3.00 to 3.73 kΩ
      1 - 2 15°C (59°F) 2.45 to 2.88 kΩ
      1 - 2 20°C (68°F) 1.95 to 2.30 kΩ
      1 - 2 25°C (77°F) 1.60 to 1.80 kΩ
      1 - 2 30°C (86°F) 1.28 to 1.47 kΩ
      1 - 2 35°C (95°F) 1.00 to 1.22 kΩ
      1 - 2 40°C (104°F) 0.80 to 1.00 kΩ
      1 - 2 45°C (113°F) 0.65 to 0.85 kΩ
      1 - 2 50°C (122°F) 0.50 to 0.70 kΩ
      1 - 2 55°C (131°F) 0.44 to 0.60 kΩ
      1 - 2 60°C (140°F) 0.36 to 0.50 kΩ
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Ambient Temperature Sensor)
      *2 Sensing Portion
      NOTE:
      • Hold the sensor only by its connector. Touching the sensor may change the resistance value.
      • When measuring, the sensor temperature must be the same as the ambient temperature.

      HINT:

      As the temperature increases, the resistance decreases (see the graphFig 1).

      If the resistance is not as specified, replace the ambient temperature sensor.
