System Diagram

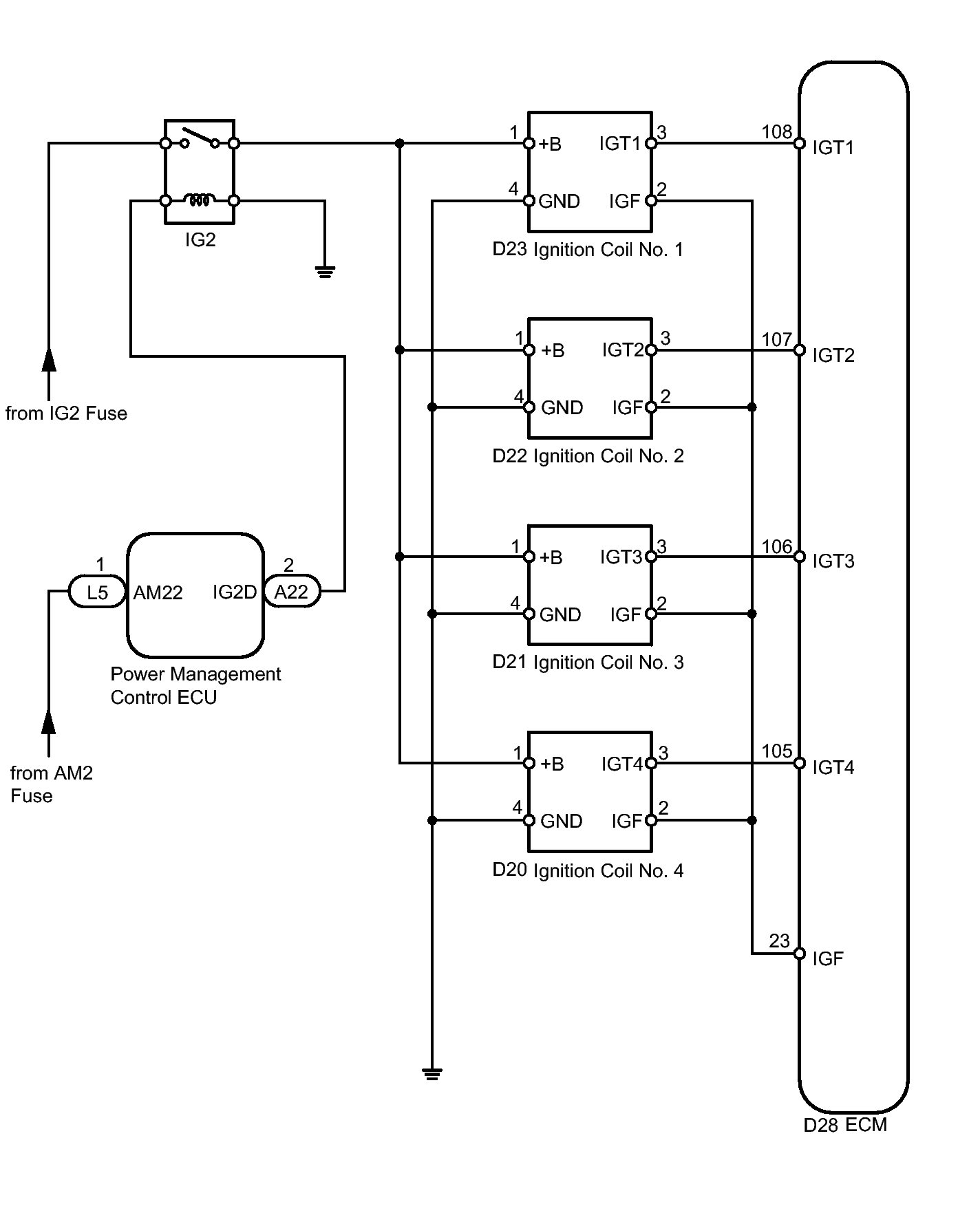

Fig 1: Ignition System Wiring Diagram
GTY229544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
