Shift lock: Notes

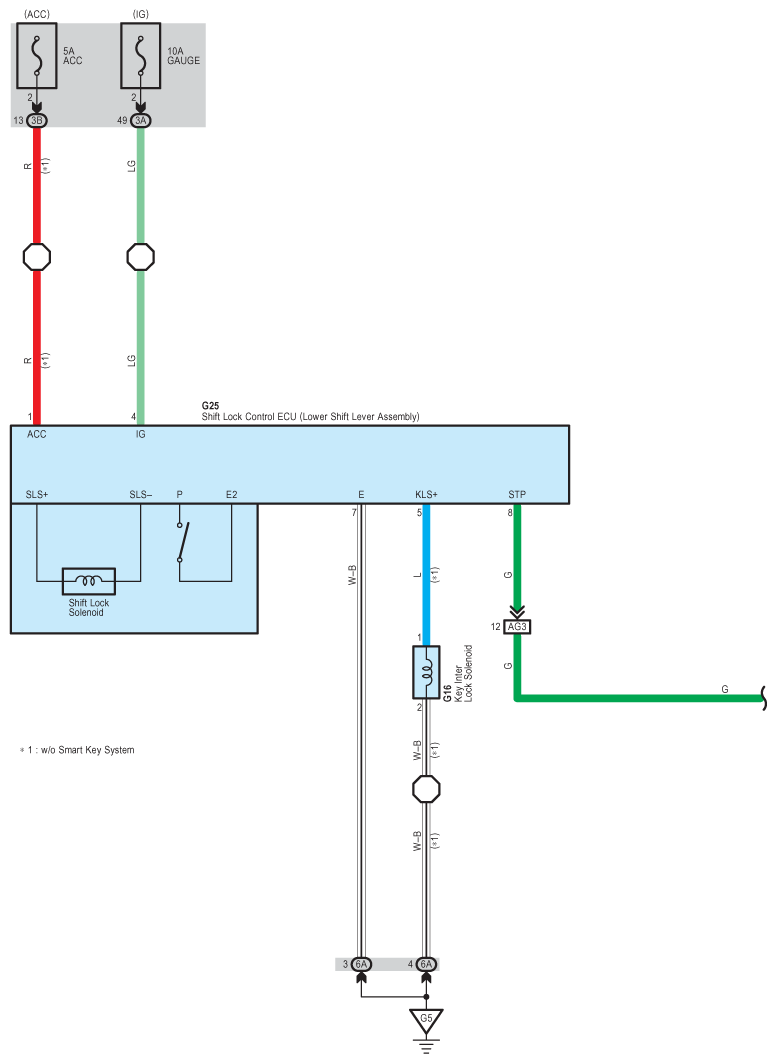

Fig 1: Shift Lock Wiring Diagram (1 Of 2)

Fig 2: Shift Lock Wiring Diagram (2 Of 2)
