Key Reminder and Light Reminder: Notes

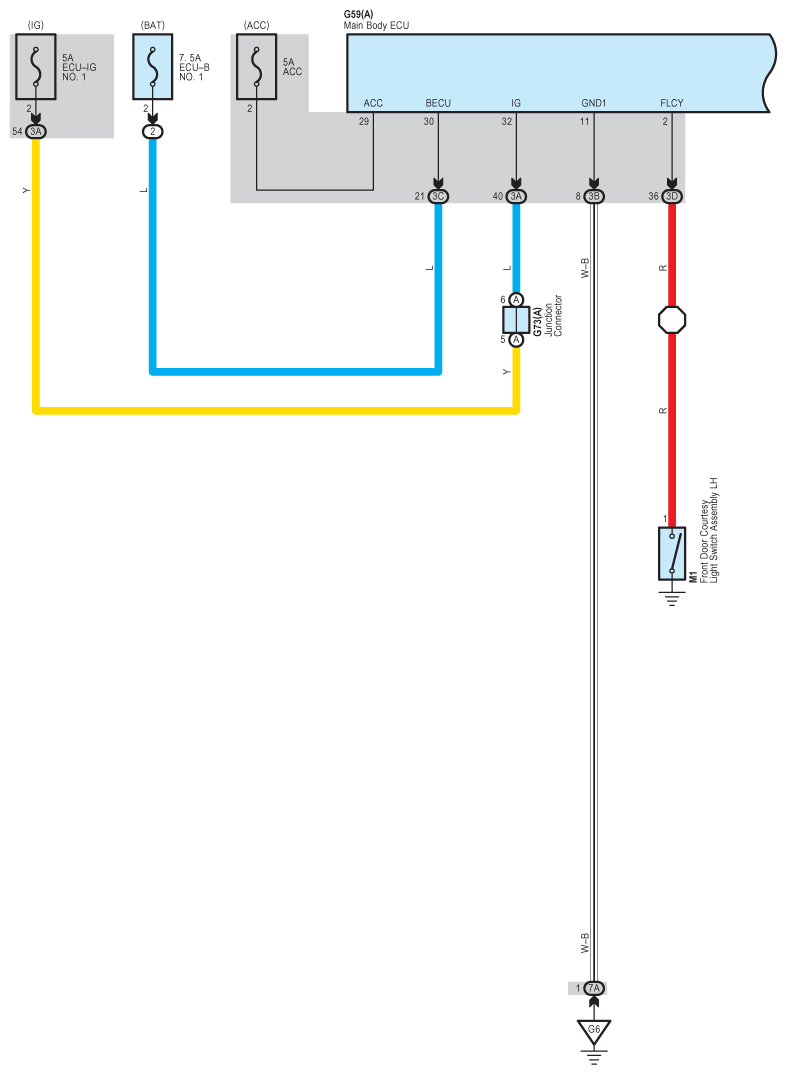

Fig 1: Key Reminder And Light Reminder Wiring Diagram (1 Of 3)
G09101142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

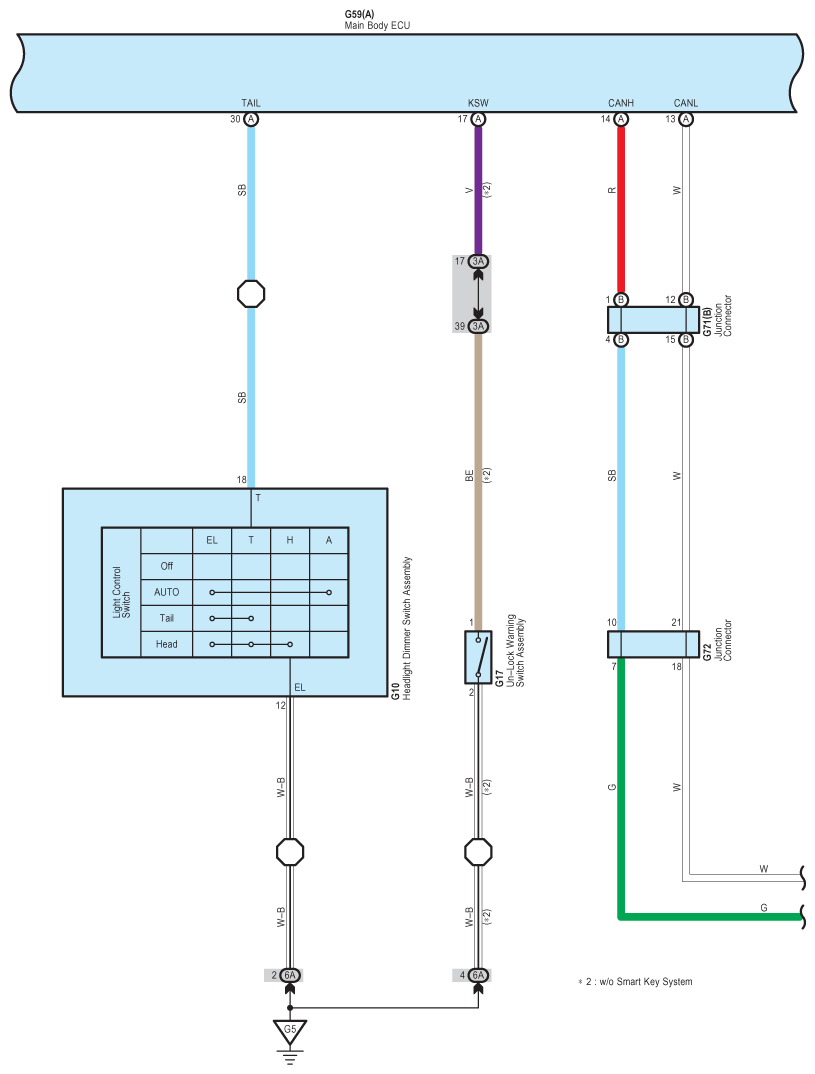

Fig 2: Key Reminder And Light Reminder Wiring Diagram (2 Of 3)
G09101143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Key Reminder And Light Reminder Wiring Diagram (3 Of 3)
G09101144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
