Hybrid System, Shift Control System and Starting (w/o Smart Key System): Notes

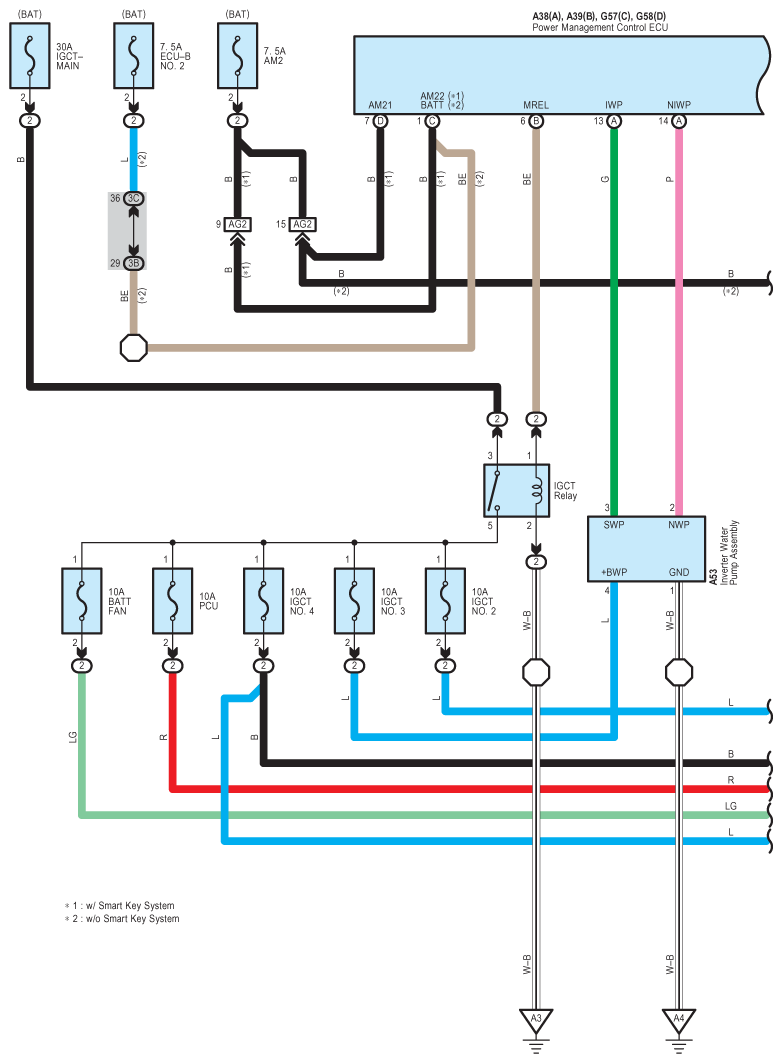

Fig 1: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (1 Of 20)

G09101016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

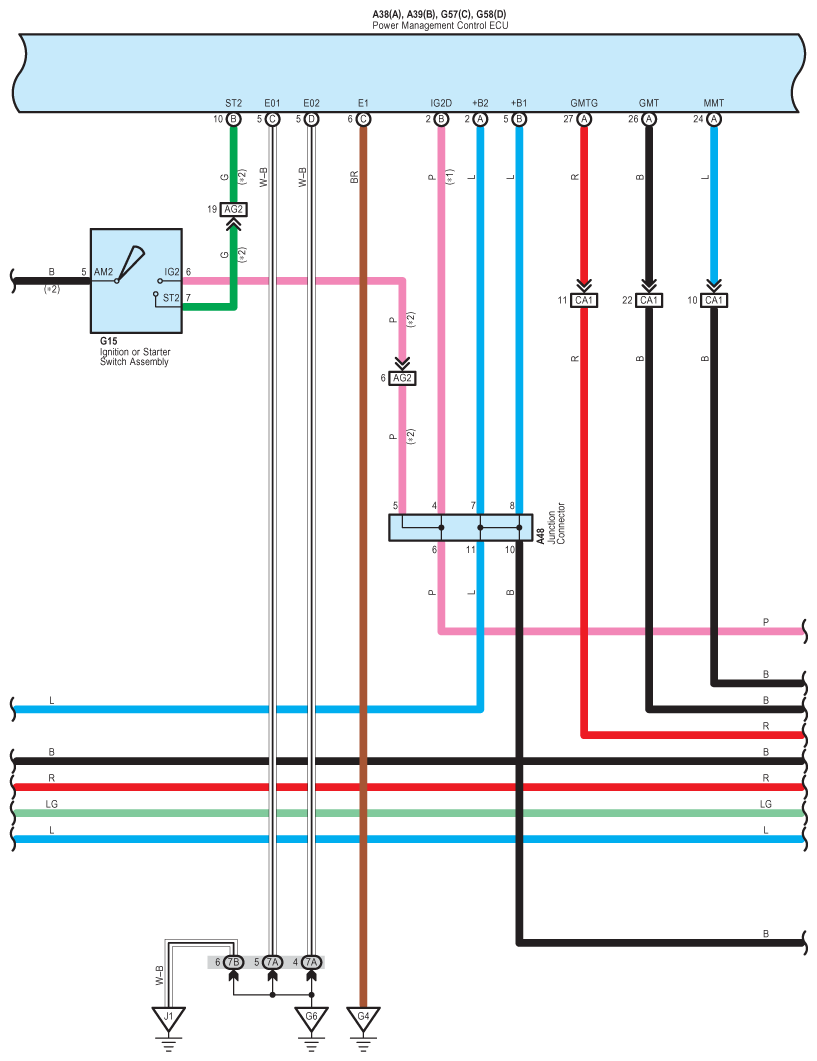

Fig 2: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (2 Of 20)

G09101017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

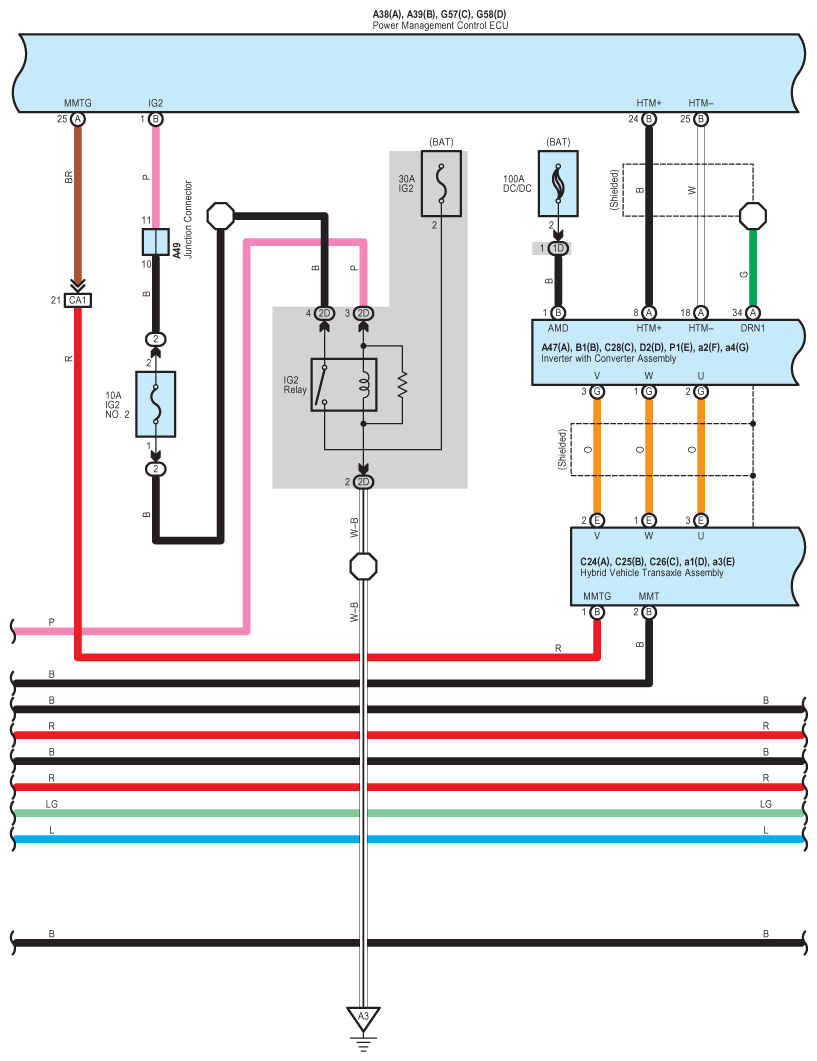

Fig 3: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (3 Of 20)

G09101018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

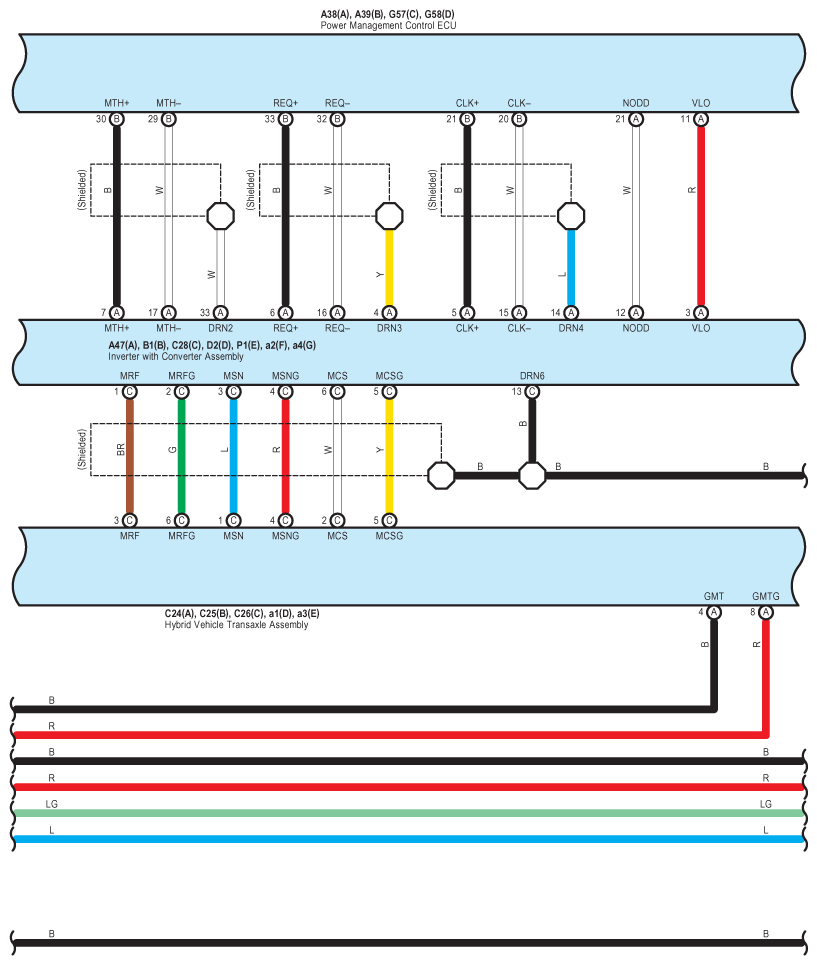

Fig 4: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (4 Of 20)

G09101019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

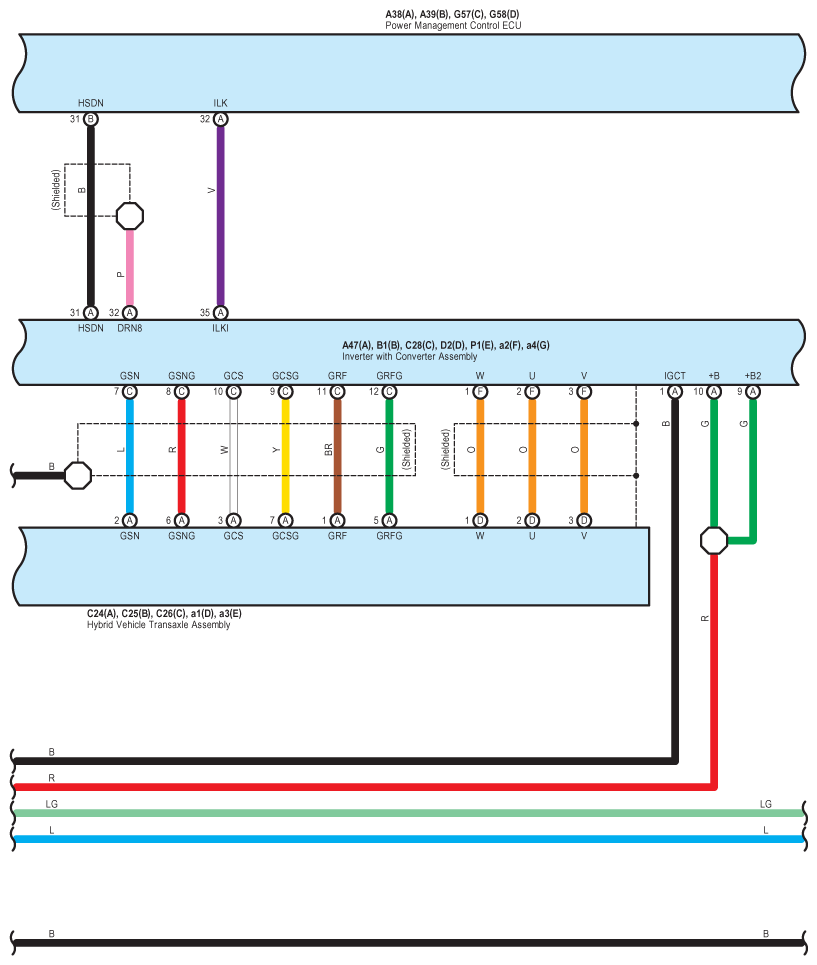

Fig 5: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (5 Of 20)

G09101020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

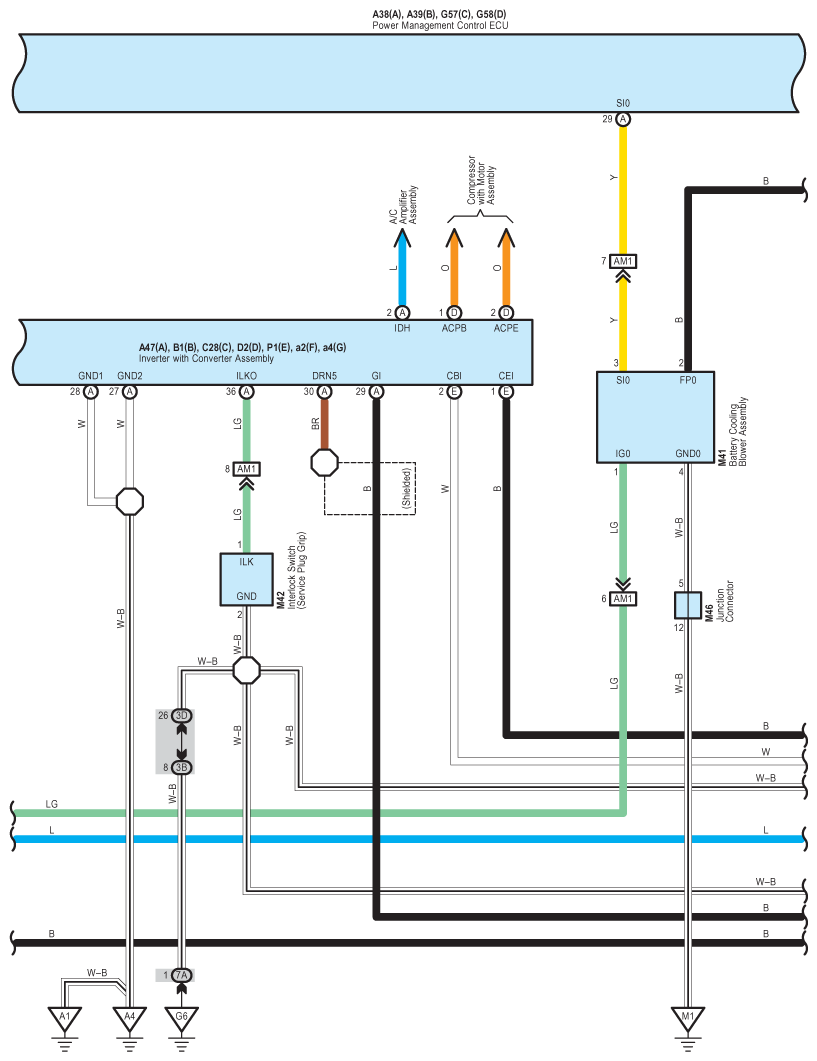

Fig 6: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (6 Of 20)

G09101021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

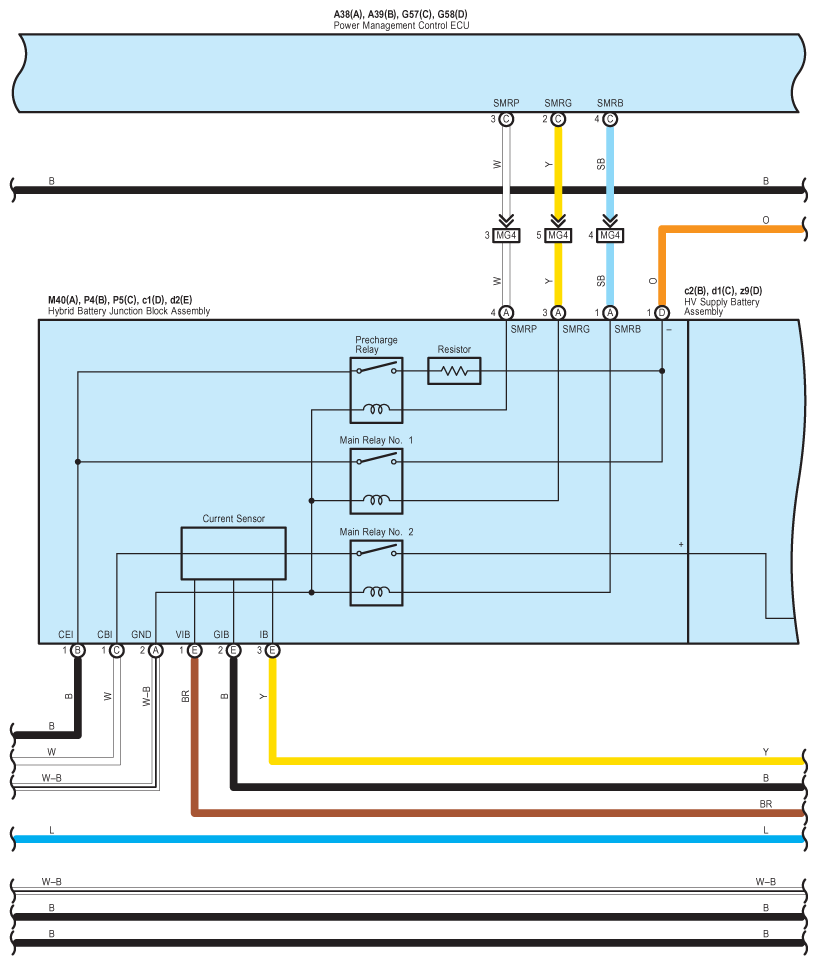

Fig 7: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (7 Of 20)

G09101022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

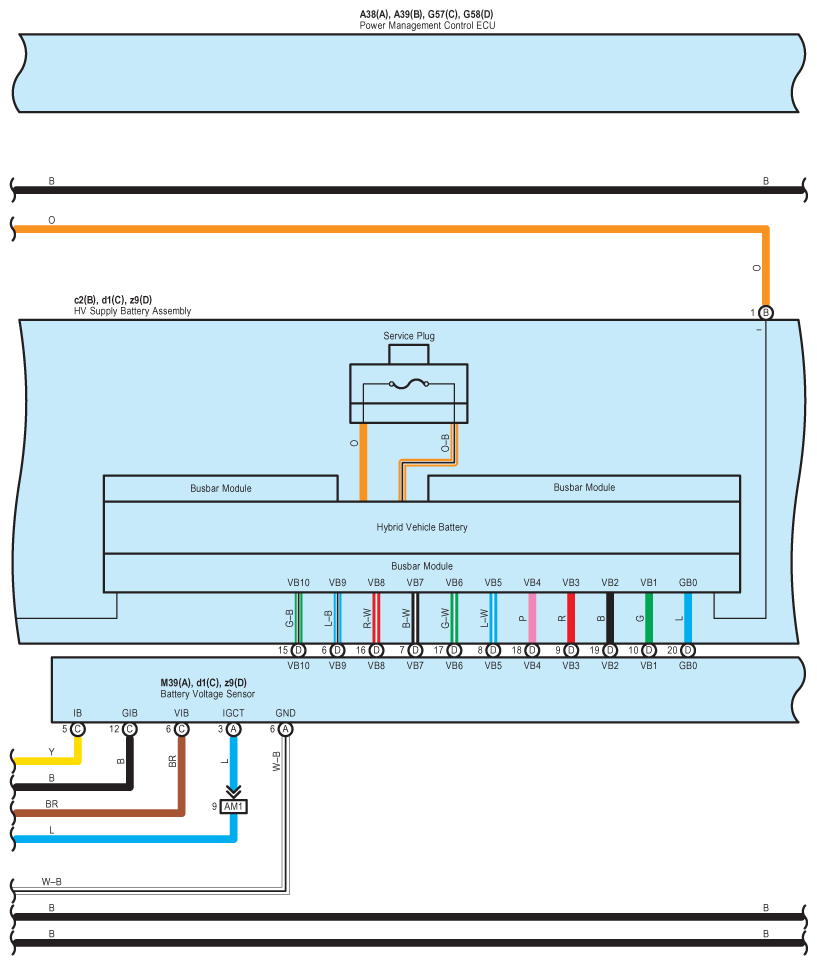

Fig 8: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (8 Of 20)

G09101023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

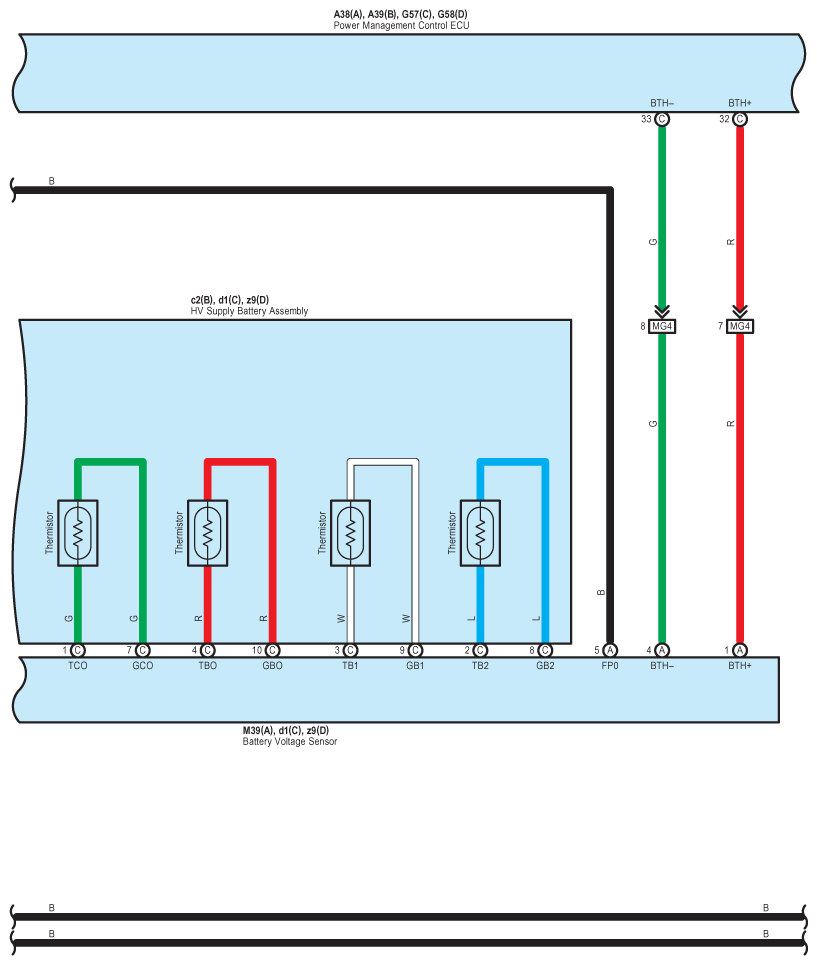

Fig 9: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (9 Of 20)

G09101024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

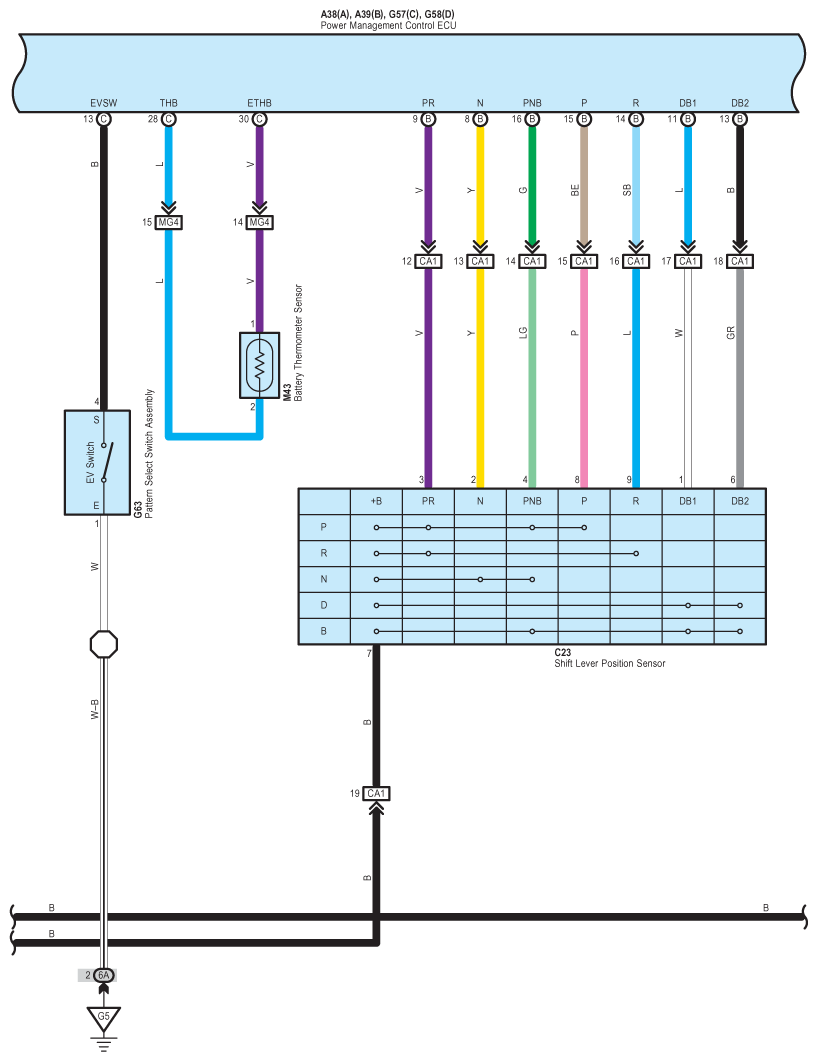

Fig 10: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (10 Of 20)

G09101025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

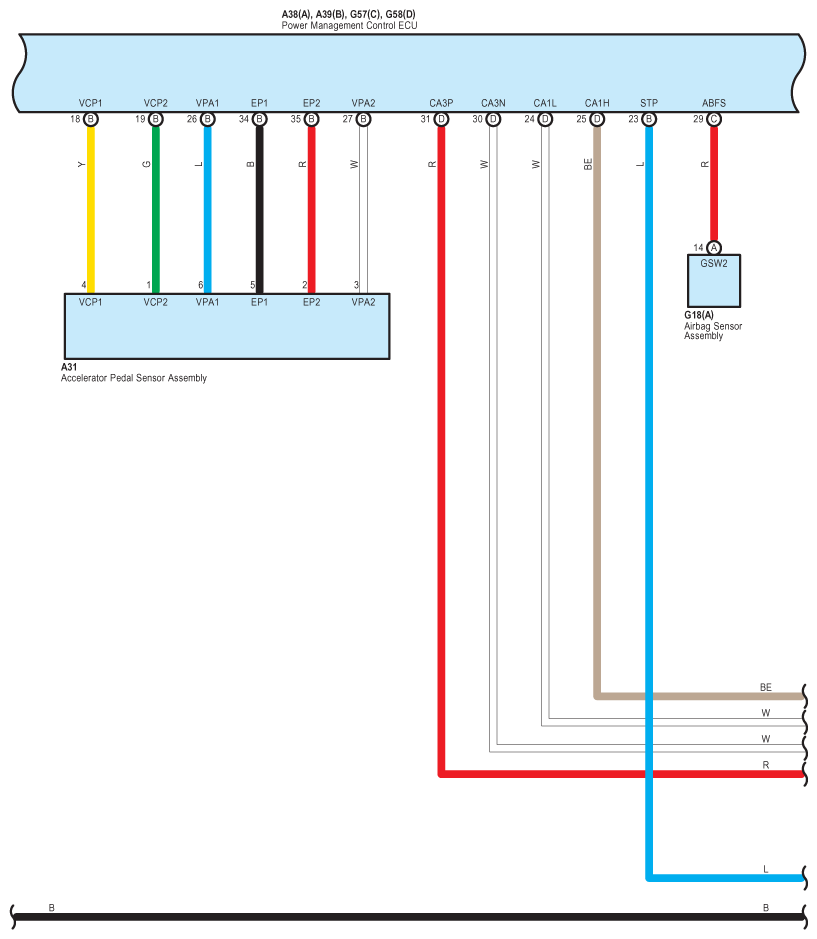

Fig 11: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (11 Of 20)

G09101026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

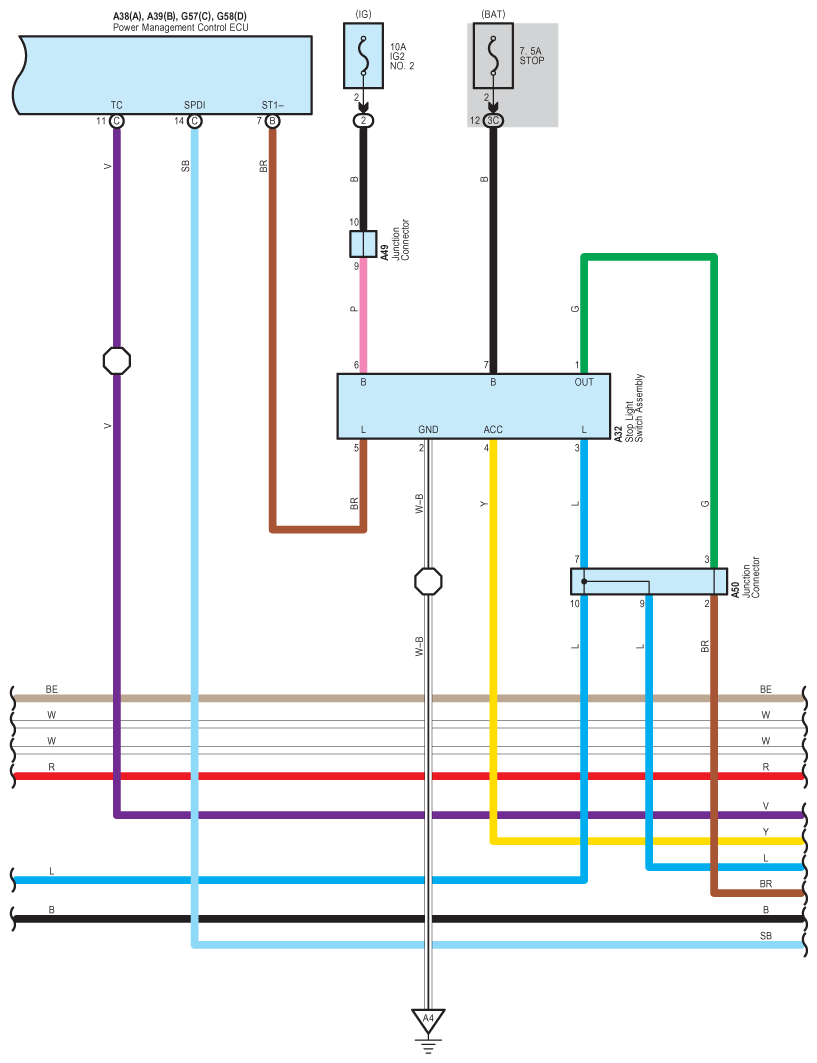

Fig 12: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (12 Of 20)

G09101027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

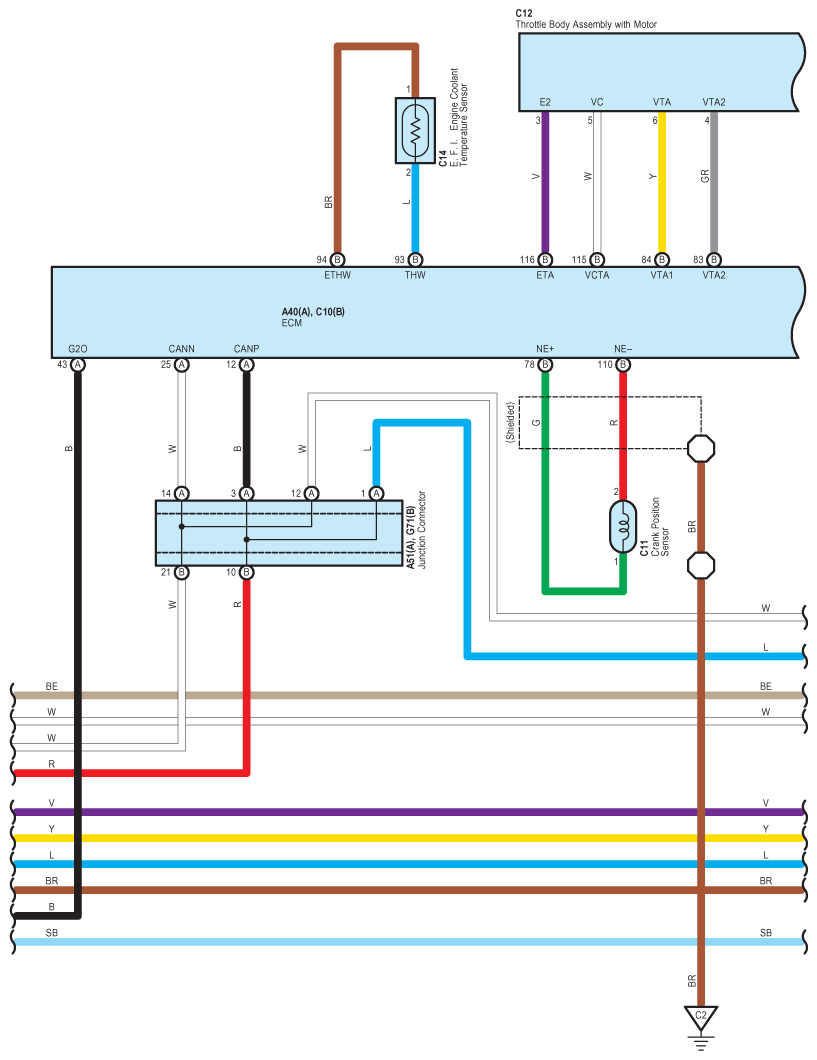

Fig 13: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (13 Of 20)

G09101028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

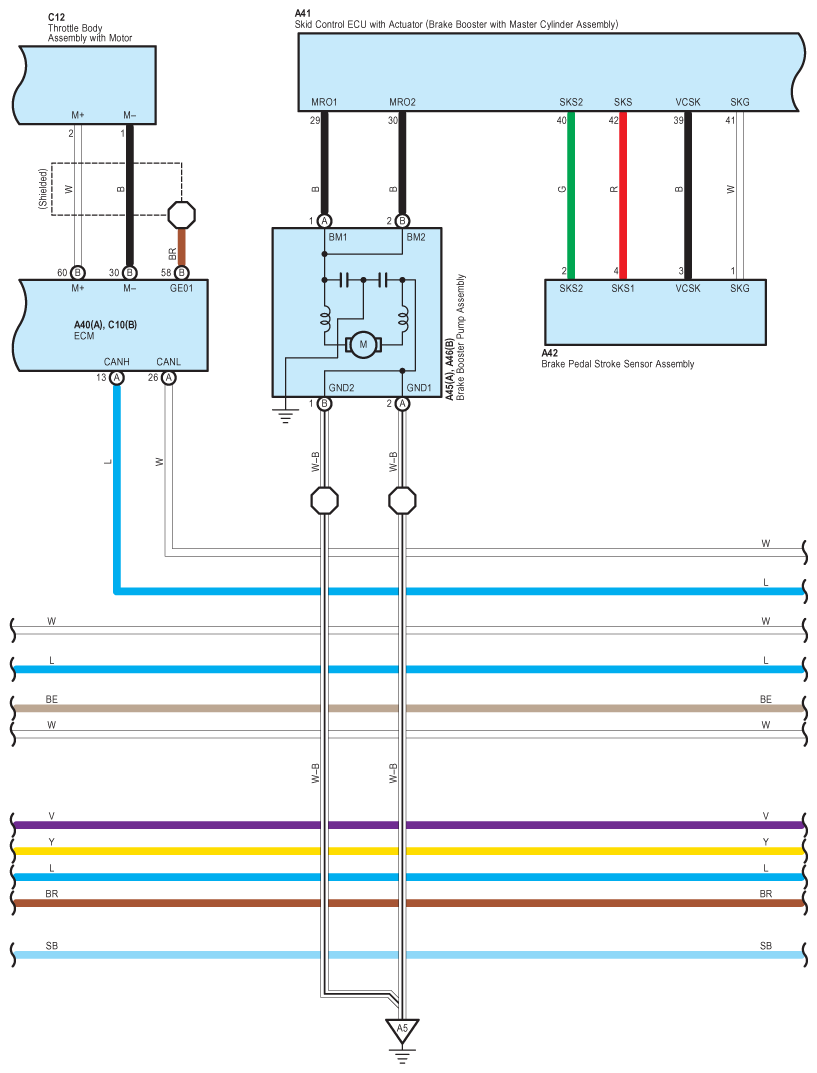

Fig 14: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (14 Of 20)

G09101029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

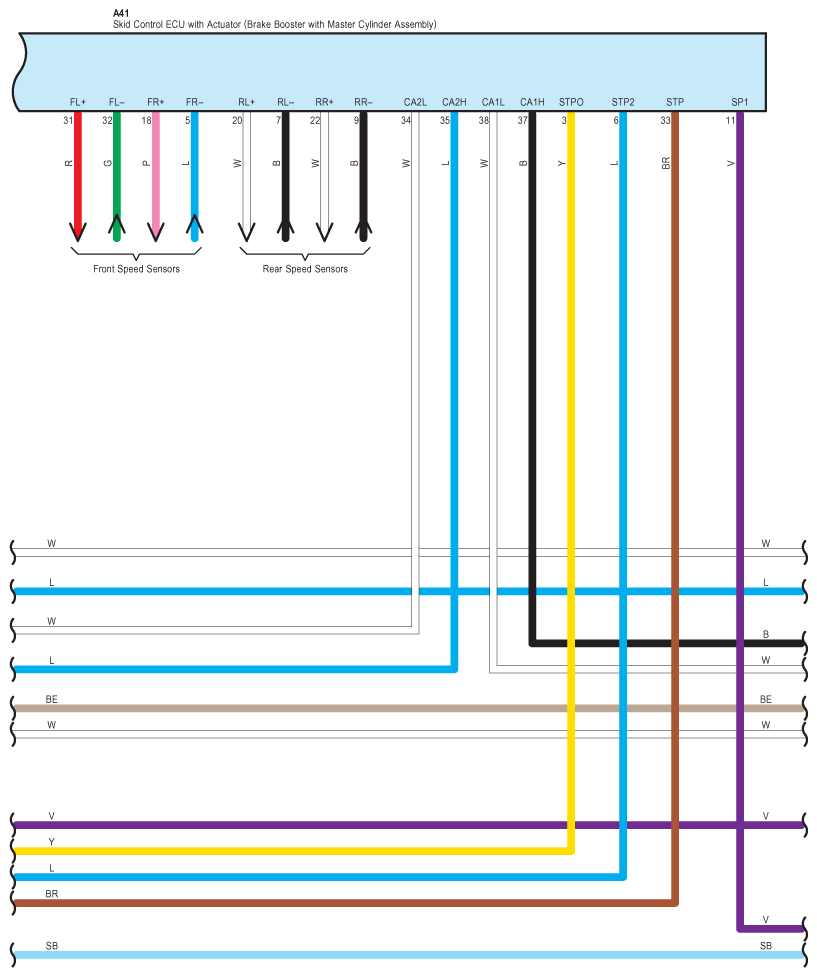

Fig 15: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (15 Of 20)

G09101030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

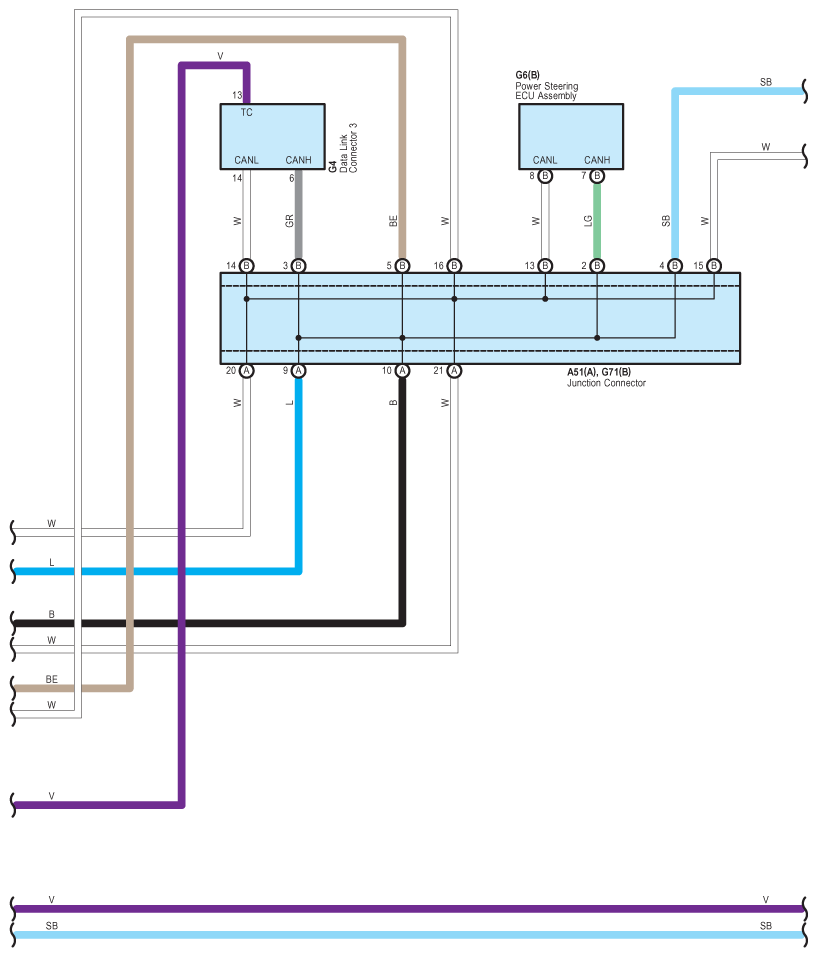

Fig 16: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (16 Of 20)

G09101031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

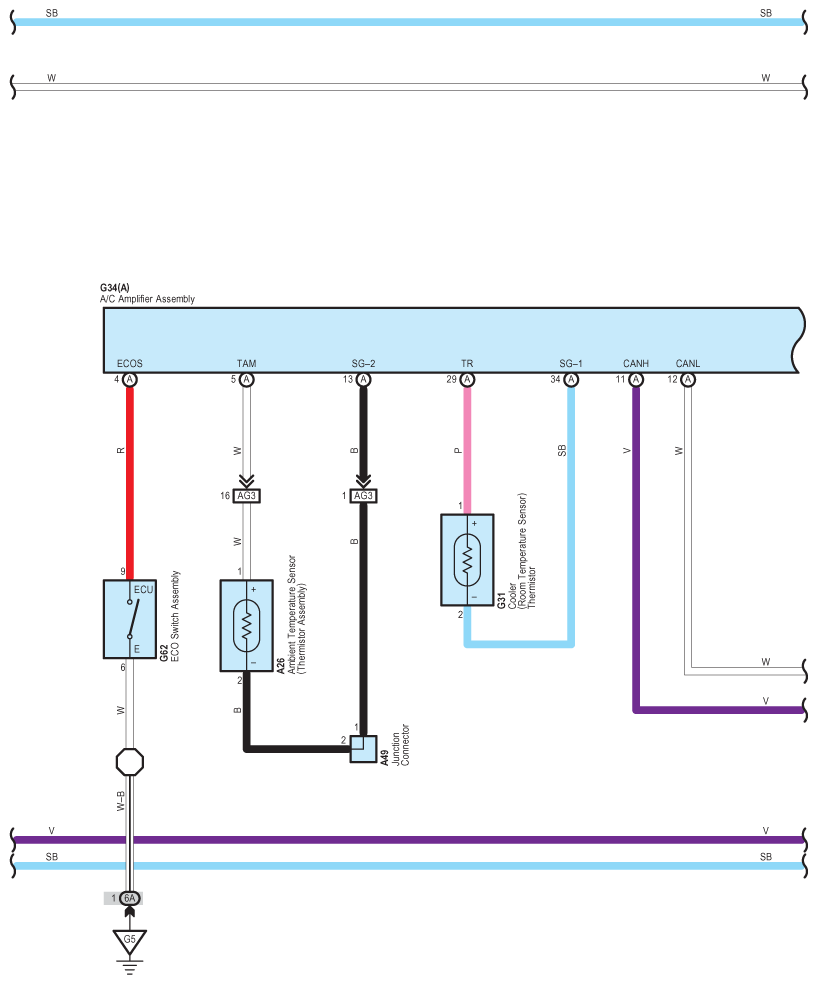

Fig 17: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (17 Of 20)

G09101032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

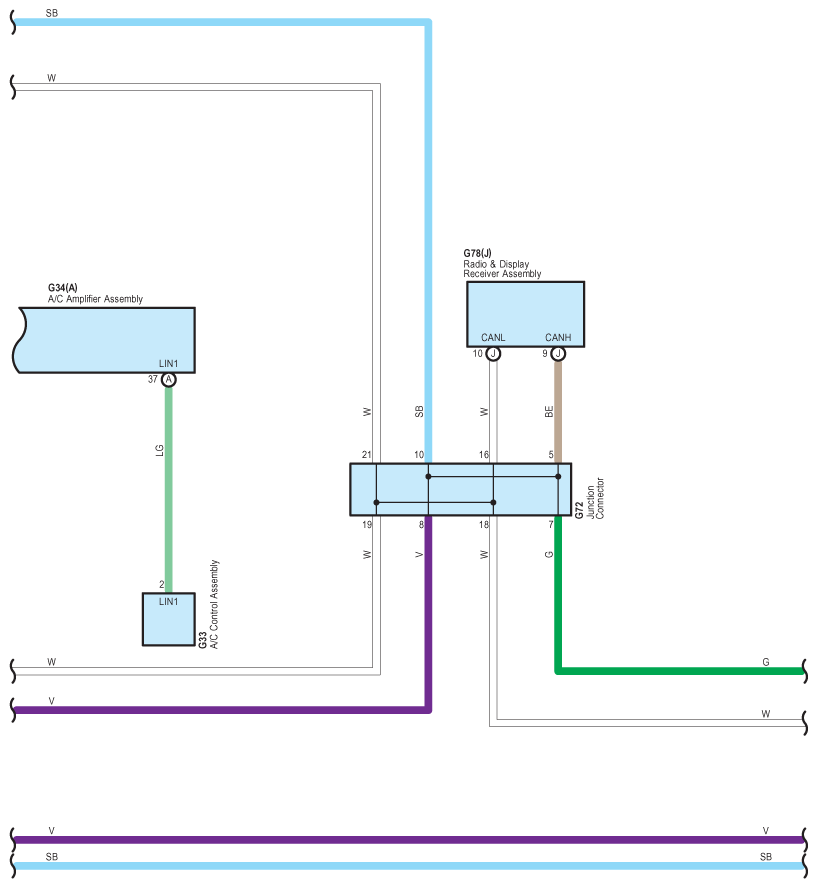

Fig 18: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (18 Of 20)

G09101033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

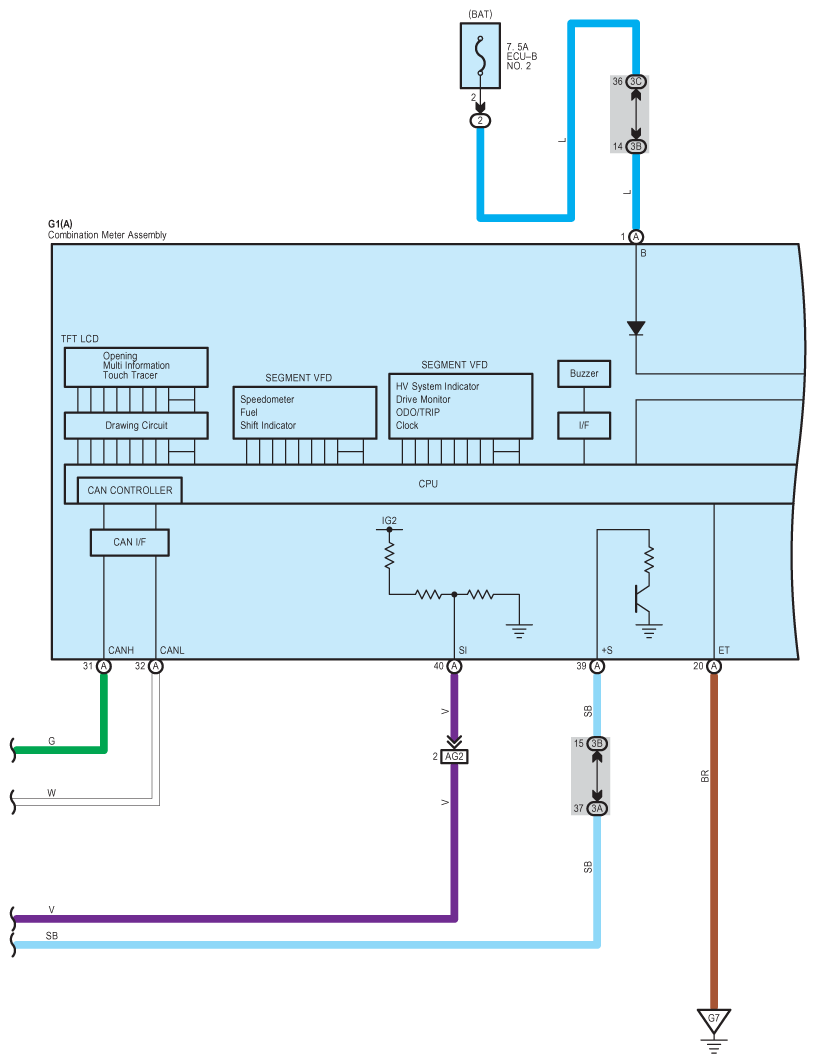

Fig 19: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (19 Of 20)

G09101034

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

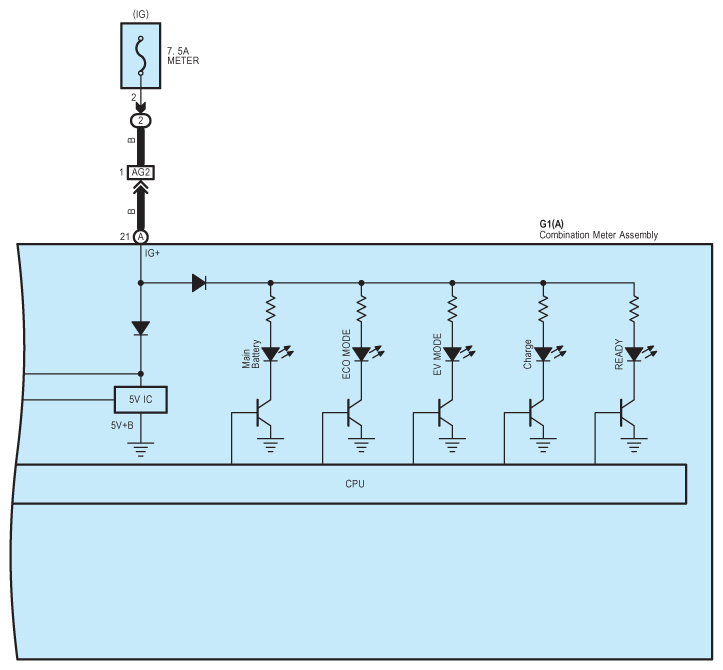

Fig 20: Hybrid, Shift Control And Starting System (W/O Smart Key System) Wiring Diagram (20 Of 20)

G09101035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
