Cooling Fan: Notes

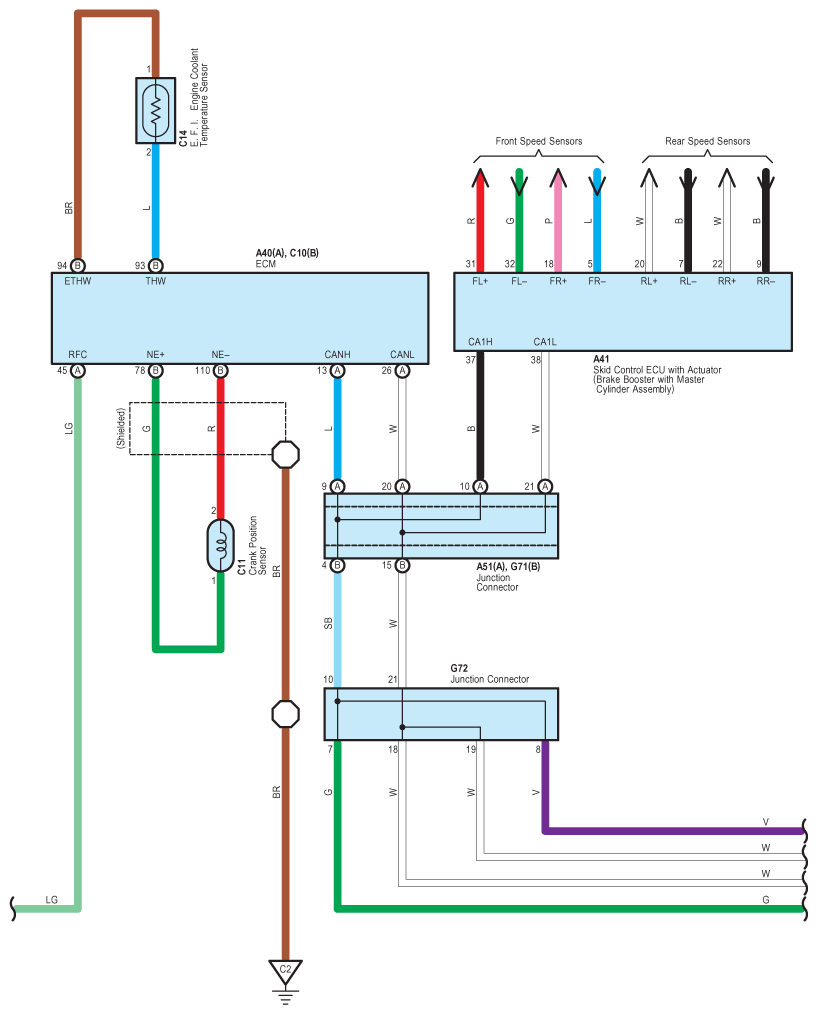

Fig 1: Cooling Fan Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

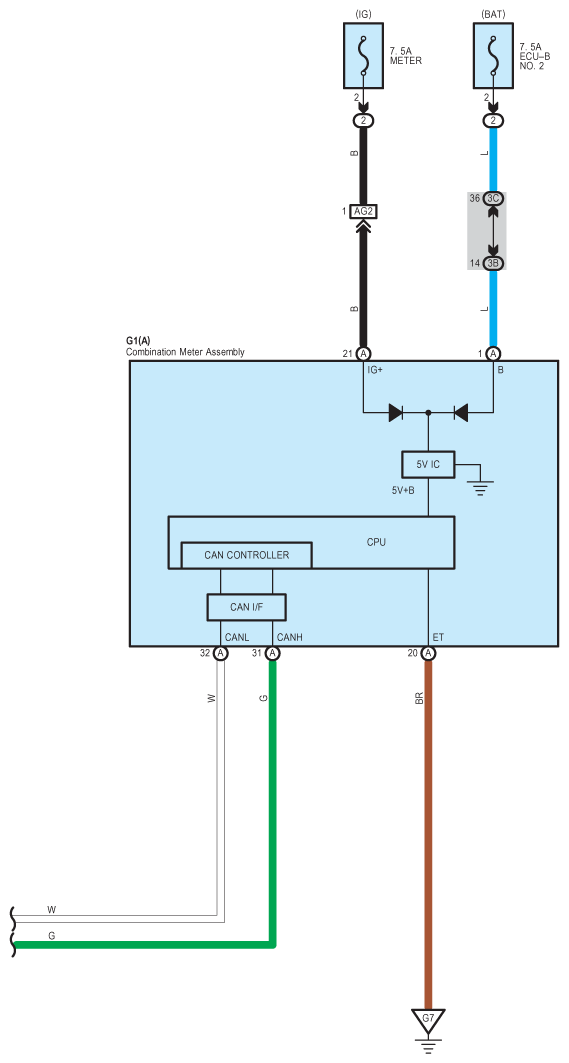

Fig 2: Cooling Fan Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

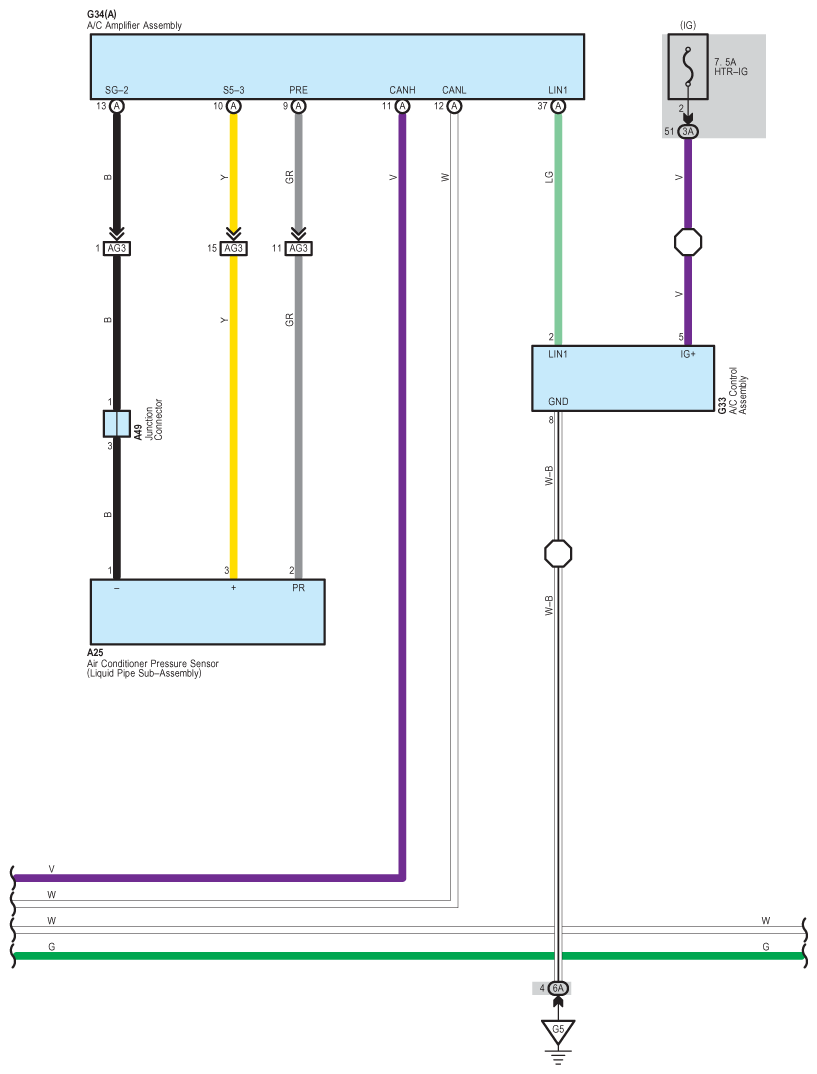

Fig 3: Cooling Fan Wiring Diagram (3 Of 4)

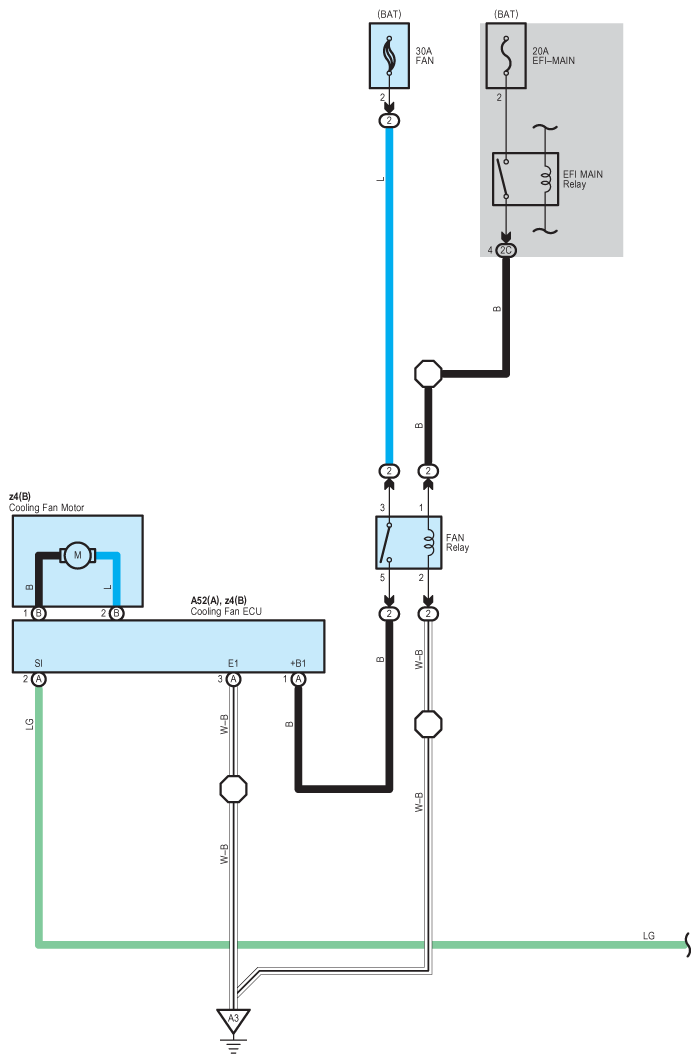

Fig 4: Cooling Fan Wiring Diagram (4 Of 4)
