Automatic Transaxle Assembly: Installation: Installation

  1. INSPECT TORQUE CONVERTER ASSEMBLY  See step  1
  2. INSTALL TORQUE CONVERTER ASSEMBLY
    1. Install the torque converter assembly to the automatic transaxle.
    2. Using a vernier caliper and a straightedge, measure dimension A between the transaxle contact surface of the engine and the torque converter assembly contact surface of the drive plate.
      Fig 1: Measuring Dimension A
      GTY226508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a vernier caliper and a straightedge, measure dimension B shown in the illustration and check that dimension B is greater than dimension A.
      Fig 2: Measuring Dimension B
      GTY221868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard dimension

      A + 1 mm (0.0394 in.) or more

      NOTE:

      Subtract the thickness of the straightedge from the measured value to obtain dimension B.

  3. INSTALL SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
    1. Coat a new O-ring with ATF WS, and install it to the hole cover.
    2. Install the hole cover to the transaxle case with the bolt.
      Fig 3: Locating Hole Cover O-Ring
      GTY220295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  4. INSTALL OIL COOLER TUBE
    1. Connect the 2 oil cooler hoses to the 2 unions with the 2 hose clamps.
      Fig 4: Locating Hose Clamps And Bolt
      GTY187414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil cooler tube to the automatic transaxle with the bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  5. INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
    1. Coat a new O-ring with ATF WS, and install it to the oil filler tube.
      Fig 5: Locating Bolt And Transmission Oil Filler Tube Sub-Assembly
      GTY171204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil filler tube to the automatic transaxle with the bolt.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    3. Install the transmission oil level gauge sub-assembly.
  6. INSTALL NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Install the cable bracket with the 2 bolts.
      Fig 6: Locating No. 1 Transmission Control Cable Bracket Bolts
      GTY186483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  7. INSTALL TRANSFER ASSEMBLY  . Refer to INSTALLATION - Step 1
  8. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
    NOTE:

    Confirm that 2 knock pins are on the transaxle contact surface of the engine block before the transaxle installation.

    1. Install the automatic transaxle with the 5 upper side mounting bolts to the engine.
      Fig 7: Locating Automatic Transaxle Assembly Bolts
      GTY243465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt A

      Torque: 64 N*m (652 kgf*cm, 47 ft.*lbf)

      Bolt B

      Torque: 46 N*m (469 kgf*cm, 34 ft.*lbf)

      Bolt C

      Torque: 46 N*m (469 kgf*cm, 34 ft.*lbf)

    2. Install the 4 lower side mounting bolts.
      Fig 8: Locating Lower Side Mounting Bolts
      GTY243464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt D

      Torque: 44 N*m (448 kgf*cm, 32 ft.*lbf)

  9. INSTALL TRANSFER STIFFENER PLATE RH  . Refer to INSTALLATION - Step 3
  10. INSTALL DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
    1. Apply a few drops of adhesive to 2 or 3 threads of the 6 torque converter assembly mounting bolt tips.
      Fig 9: Applying Adhesive To End Of Threads Of Bolts
      GTY175679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent.

    2. Install the 6 torque converter assembly mounting bolts.
      Fig 10: Installing Torque Converter Clutch Mounting Bolts
      GTY164273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 41 N*m (418 kgf*cm, 30 ft.*lbf)

      NOTE:

      Install the black colored bolt first, and then the silver colored 5 bolts.

    3. Install the flywheel housing under cover.
  11. INSTALL ENGINE MOUNTING BRACKET LH
    1. Install the mounting bracket with the 3 bolts.
      Fig 11: Locating Engine Mounting Bracket Bolts - LH
      GTY212465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

  12. INSTALL FRONT ENGINE MOUNTING BRACKET
    1. Install the mounting bracket with the 3 bolts.
      Fig 12: Locating Front Engine Mounting Bracket Bolts
      GTY244788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 64 N*m (652 kgf*cm, 47 ft.*lbf)

  13. INSTALL REAR ENGINE MOUNTING BRACKET
    1. Install the mounting bracket with the 2 bolts.
      Fig 13: Locating Rear Engine Mounting Bracket Bolts
      GTY244787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

  14. CONNECT WIRE HARNESS
    1. Install the wire harness bracket and transmission control cable support with the 2 bolts.

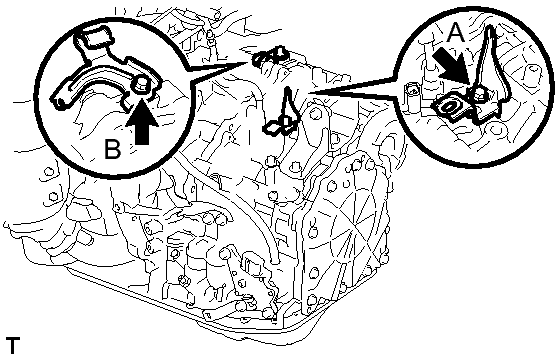

      Fig 14: Locating Transmission Control Cable Support Bolts
      GTY244786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt A

      Torque: 13 N*m (132 kgf*cm, 10 ft.*lbf)

      Bolt B

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    2. Connect the 5 wire harness clamps.

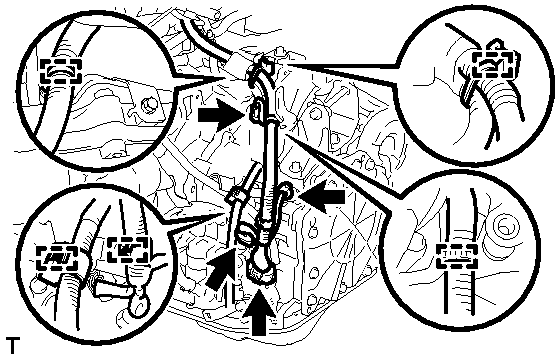

      Fig 15: Locating Park/Neutral Position Switch And Transmission Wire Connectors
      GTY244785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the 2 speed sensor connectors.
    4. Connect the transmission wire connector.
    5. Connect the park/neutral position switch connector.
  15. INSTALL STARTER ASSEMBLY  . Refer to INSTALLATION - Step 2
  16. TEMPORARILY TIGHTEN FRONT ENGINE MOUNTING INSULATOR  . Refer to INSTALLATION - Step 11
  17. TEMPORARILY TIGHTEN REAR ENGINE MOUNTING INSULATOR  . Refer to INSTALLATION - Step 13
  18. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

    HINT:

    See the steps from "Engine Assembly with Transaxle" through "Check Speed Sensor Signal". Refer to INSTALLATION .

  19. RESET MEMORY

    HINT:

    Perform RESET MEMORY (AT initialization) when replacing the automatic transaxle assembly. Refer to INITIALIZATION .
