Automatic Transaxle Unit: Components: Illustration

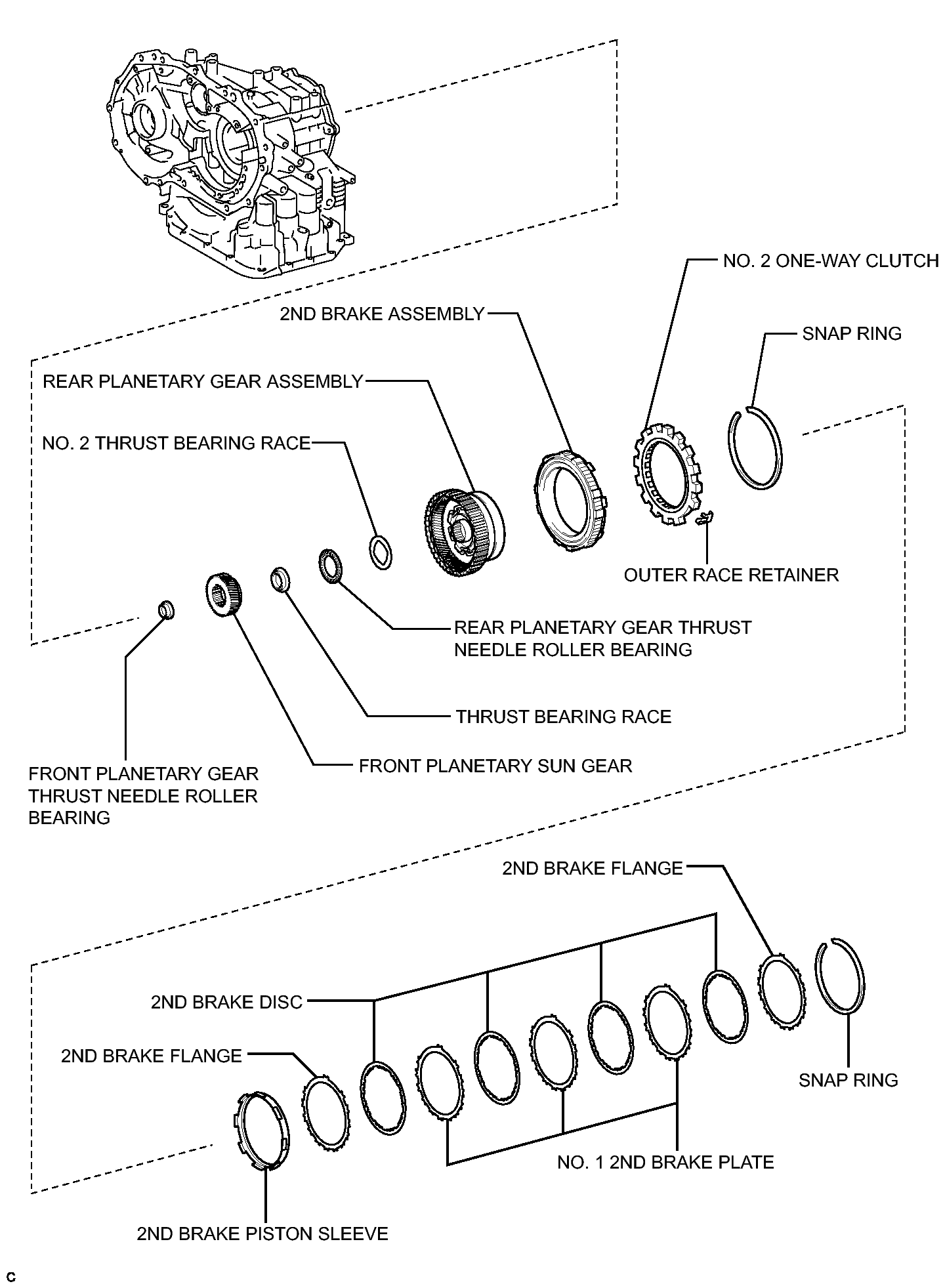

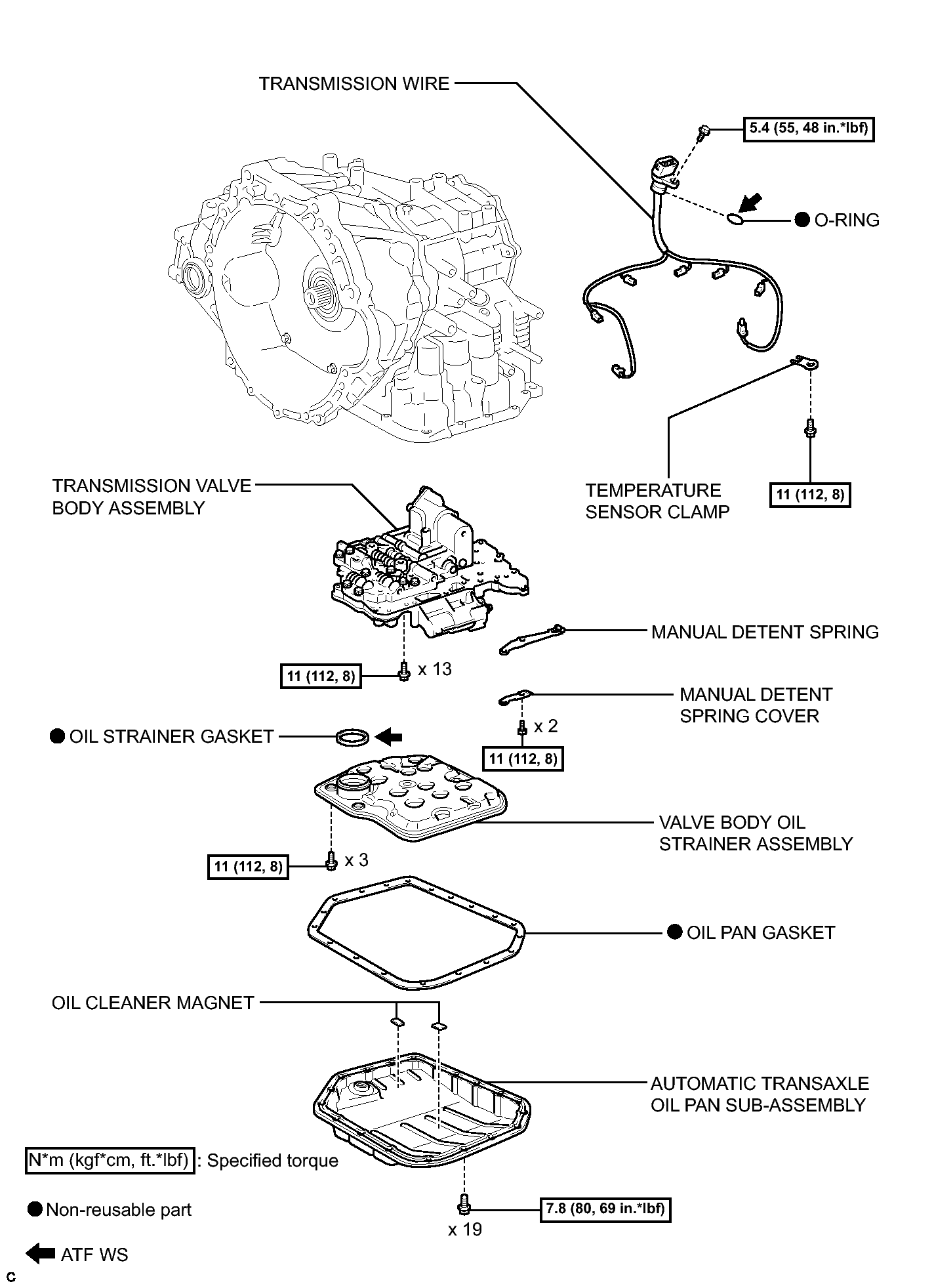

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

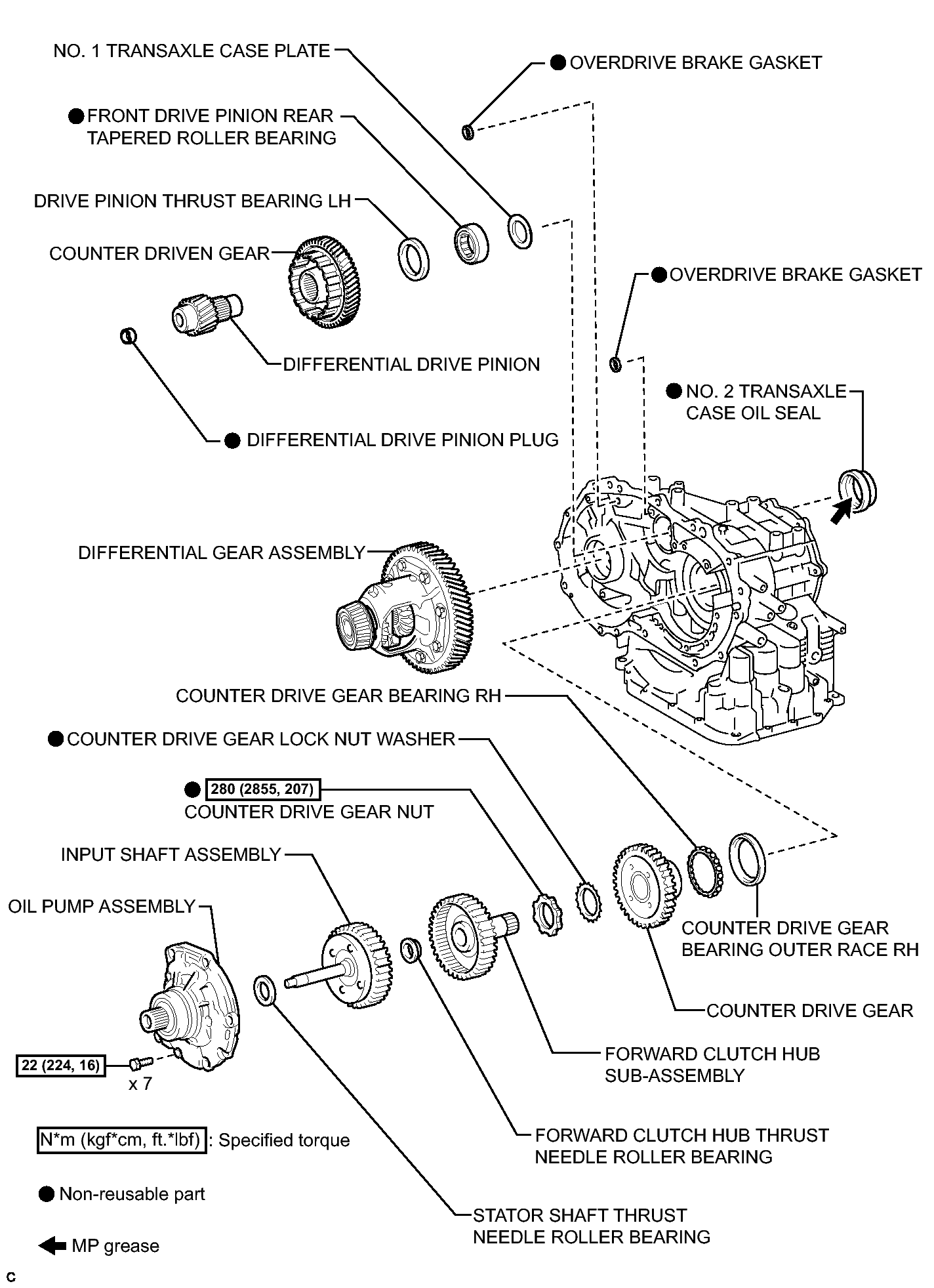

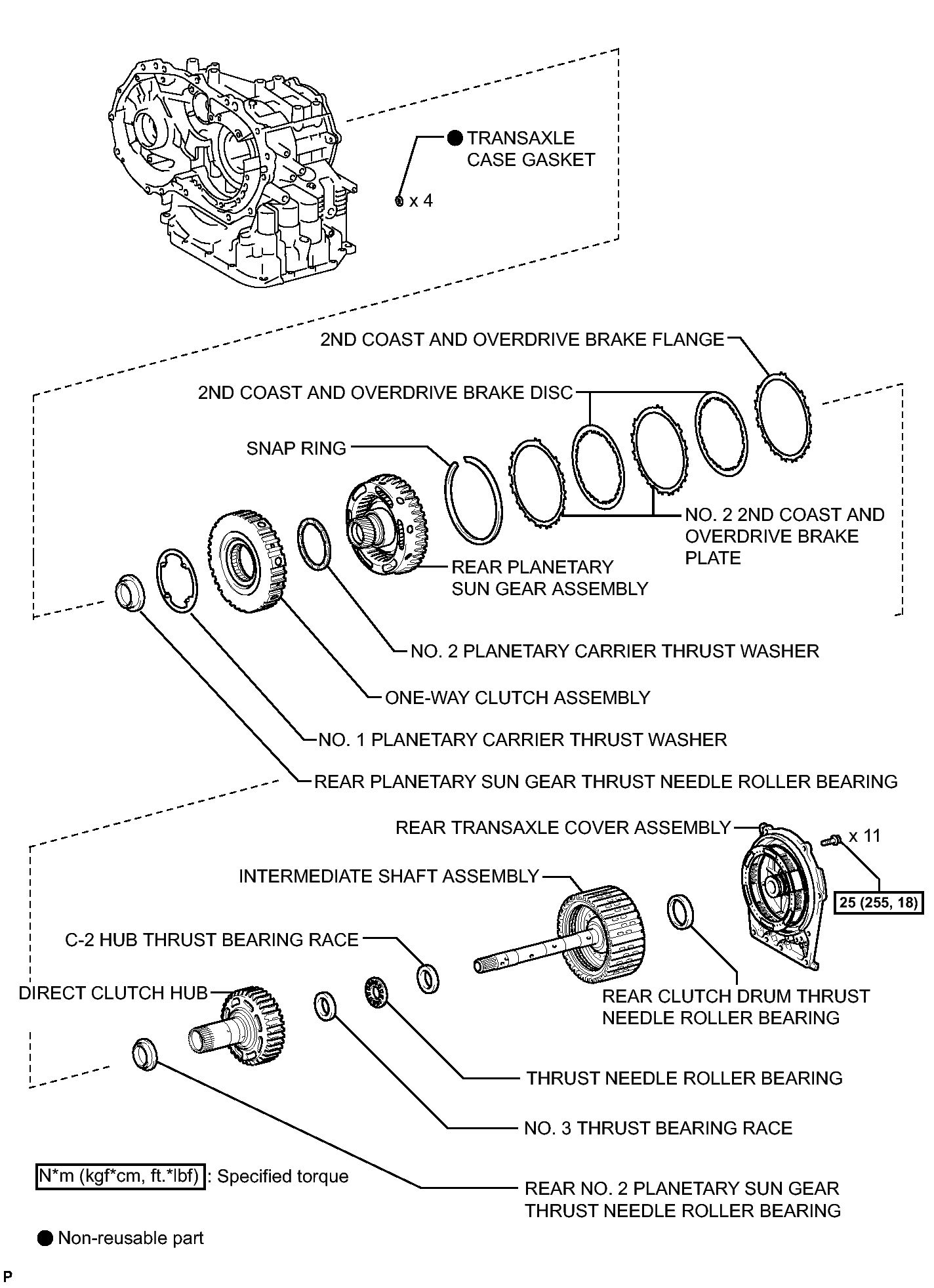

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

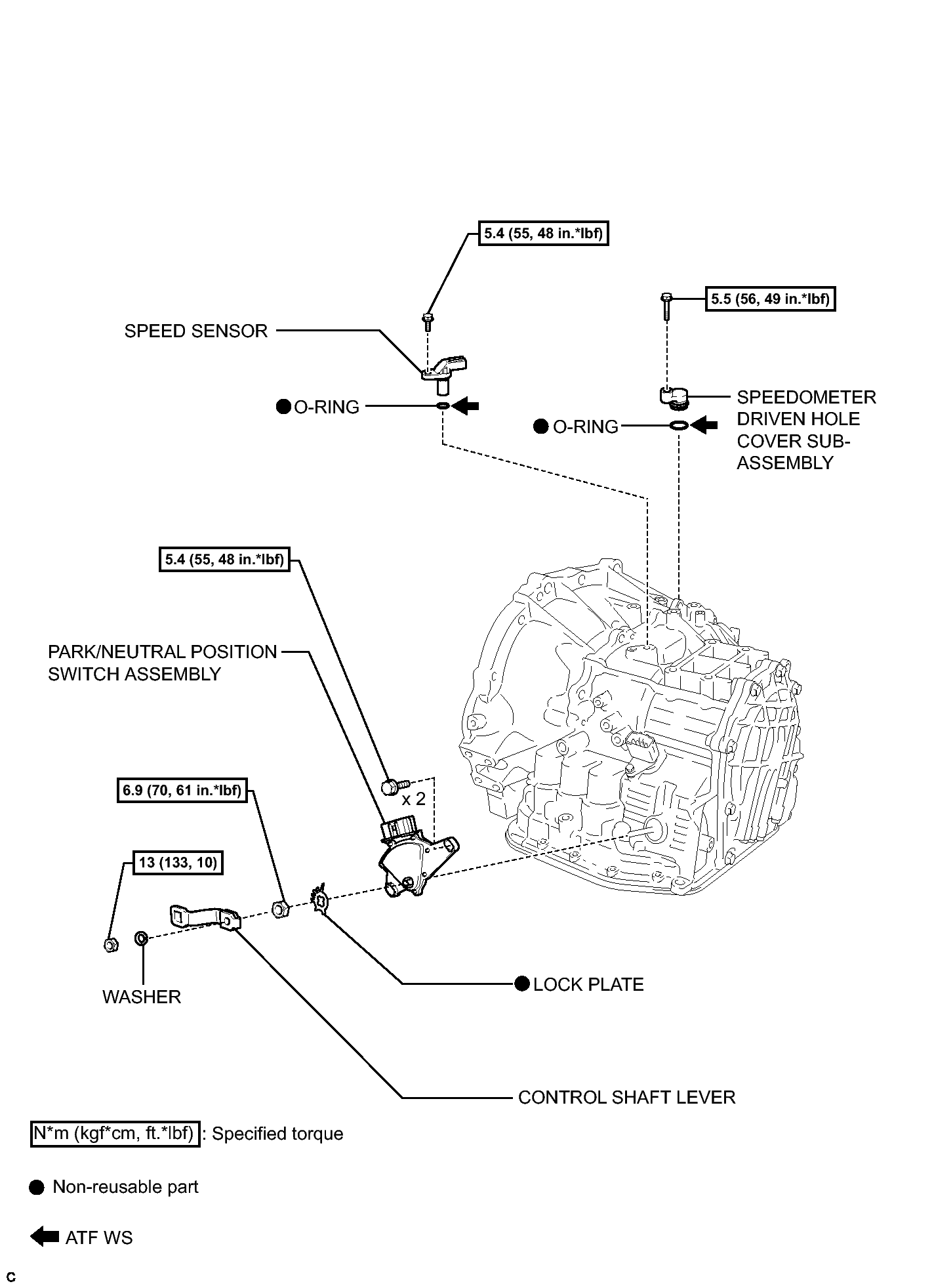

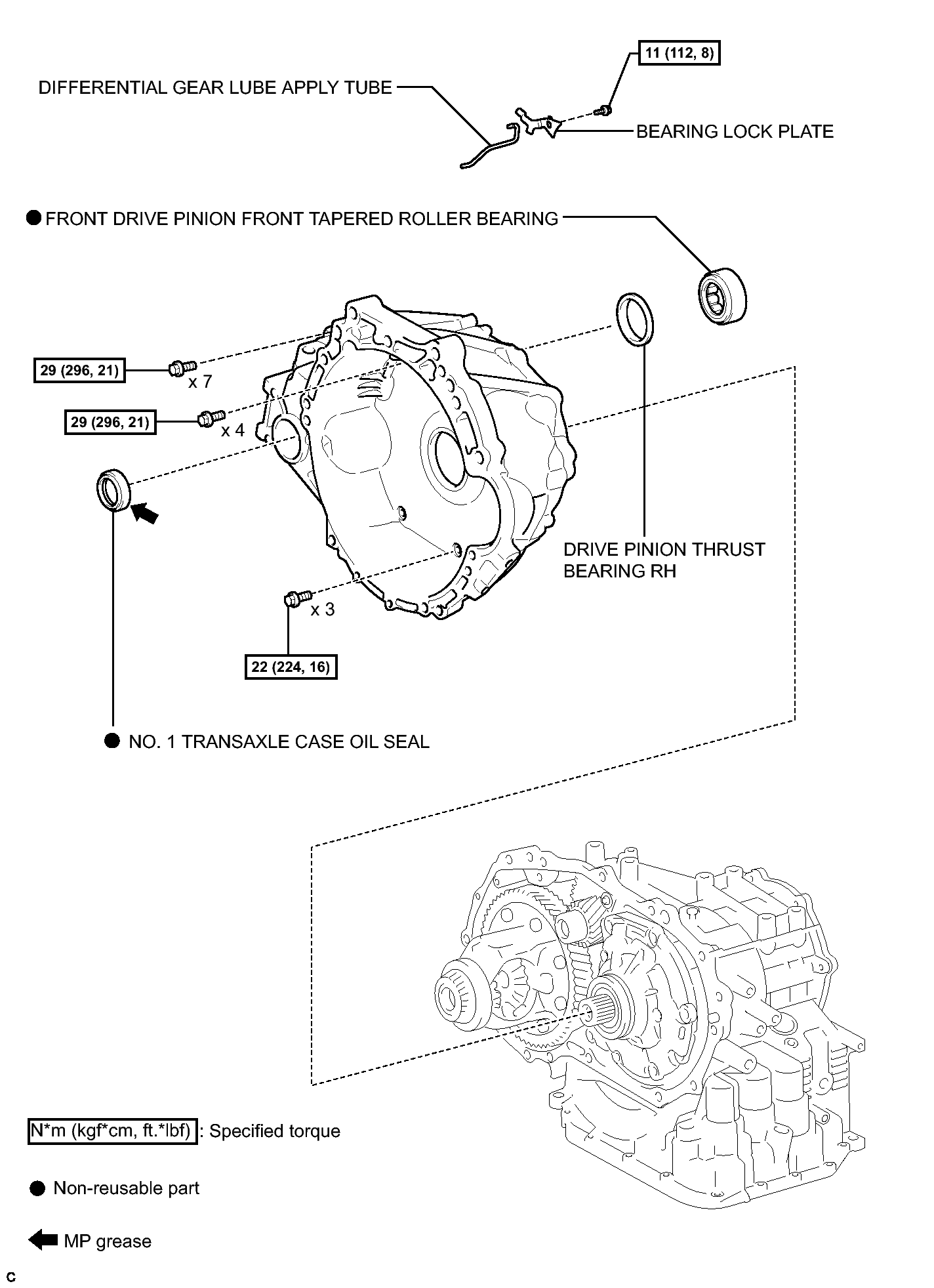

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

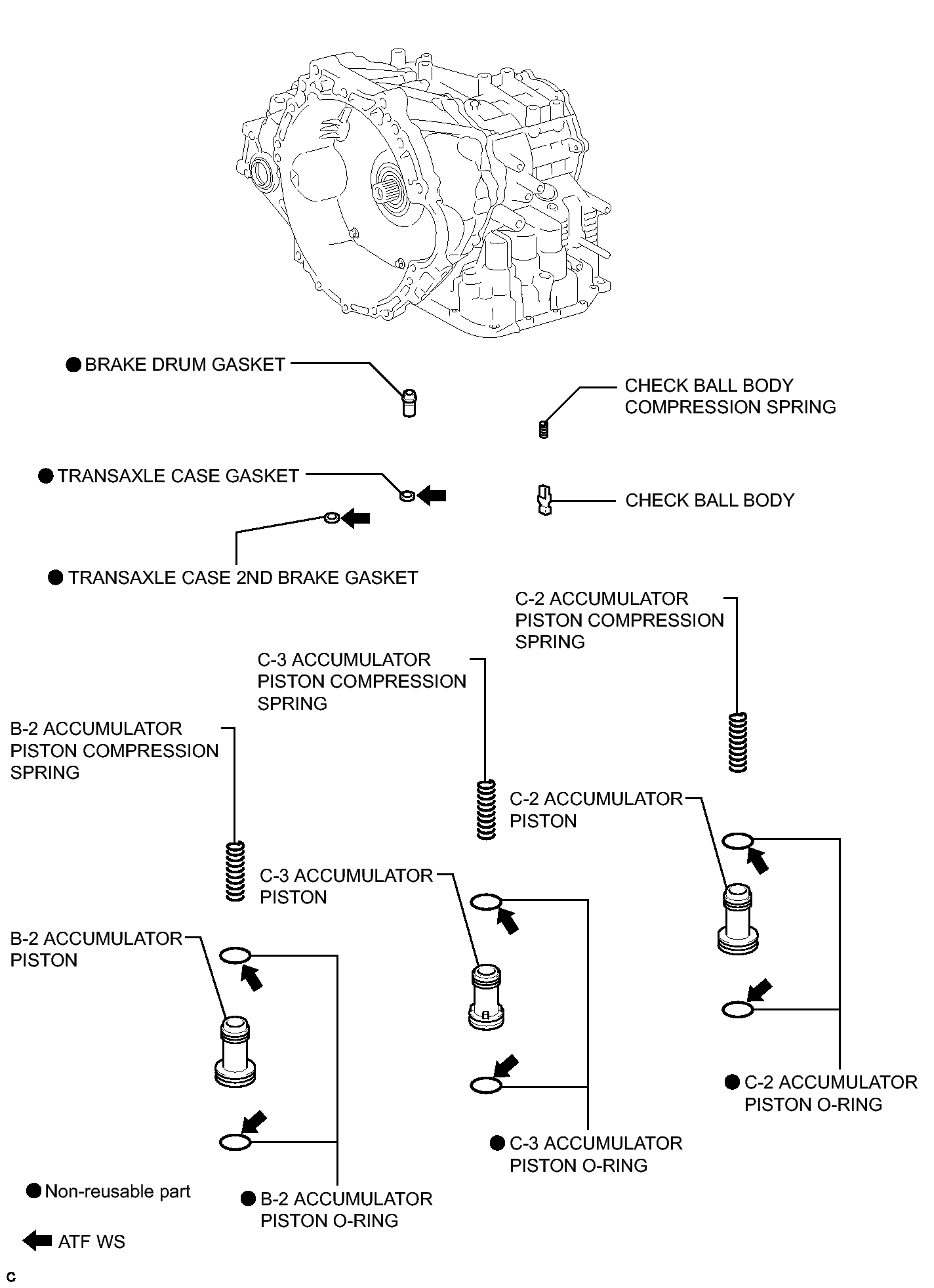

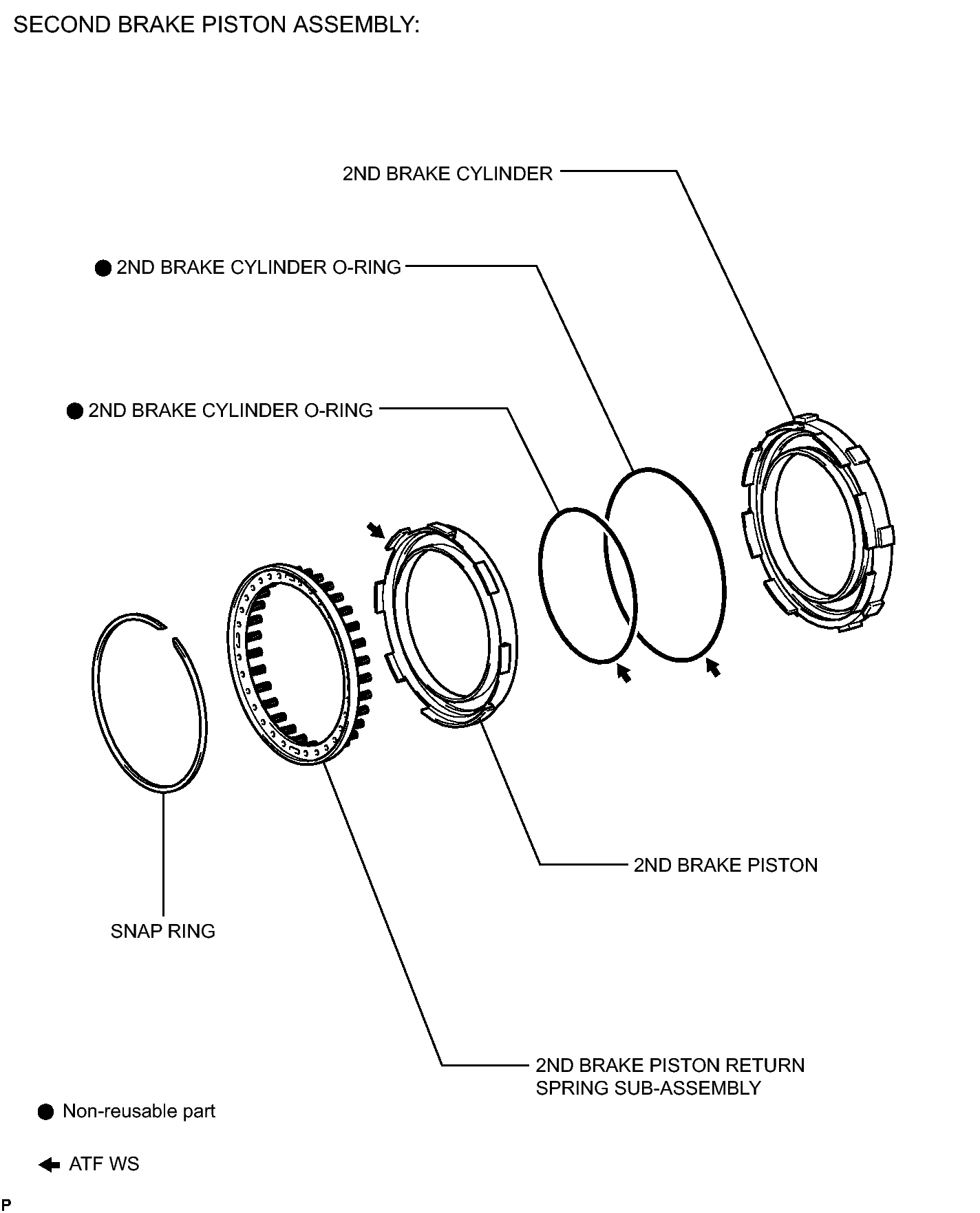

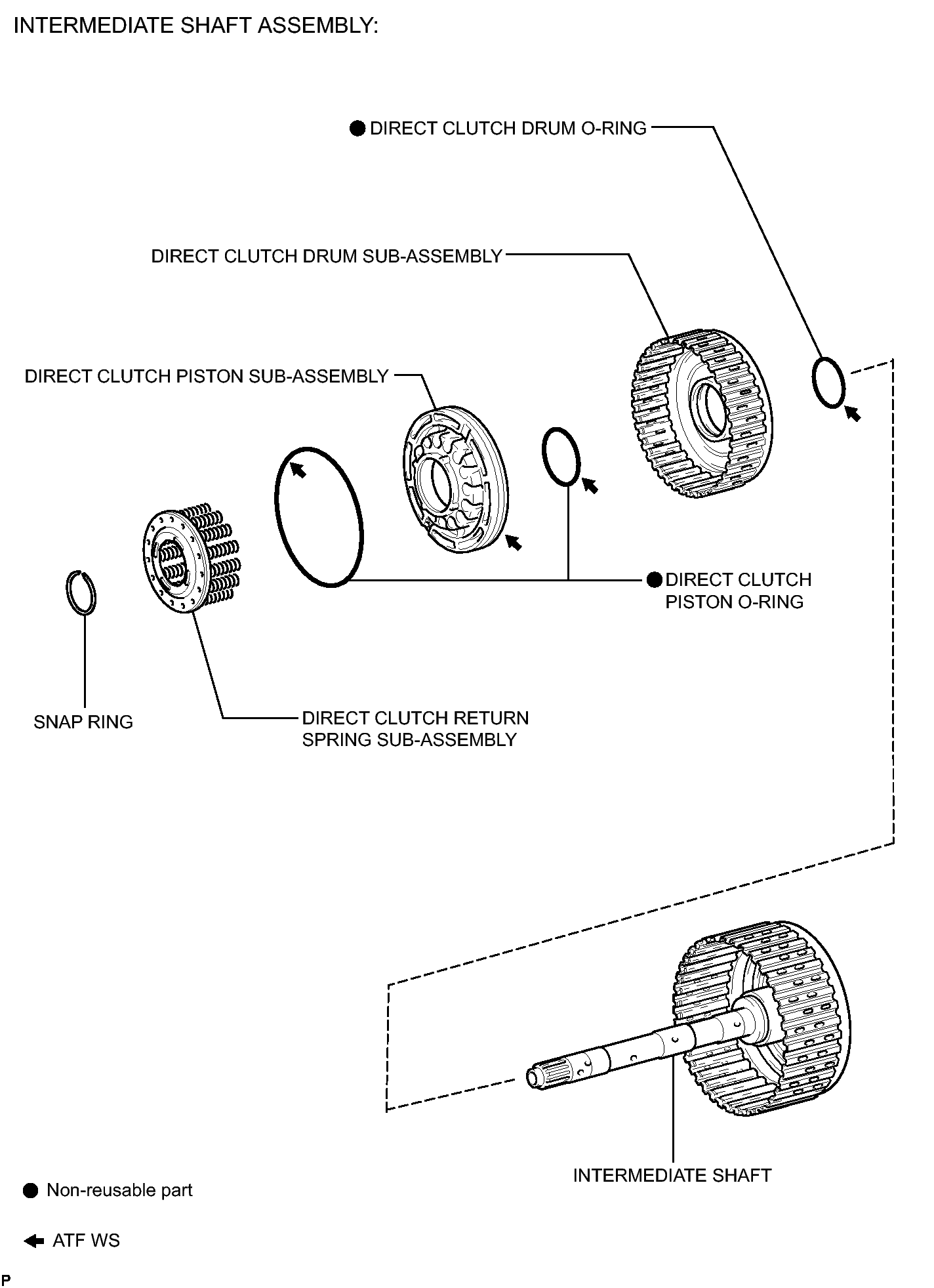

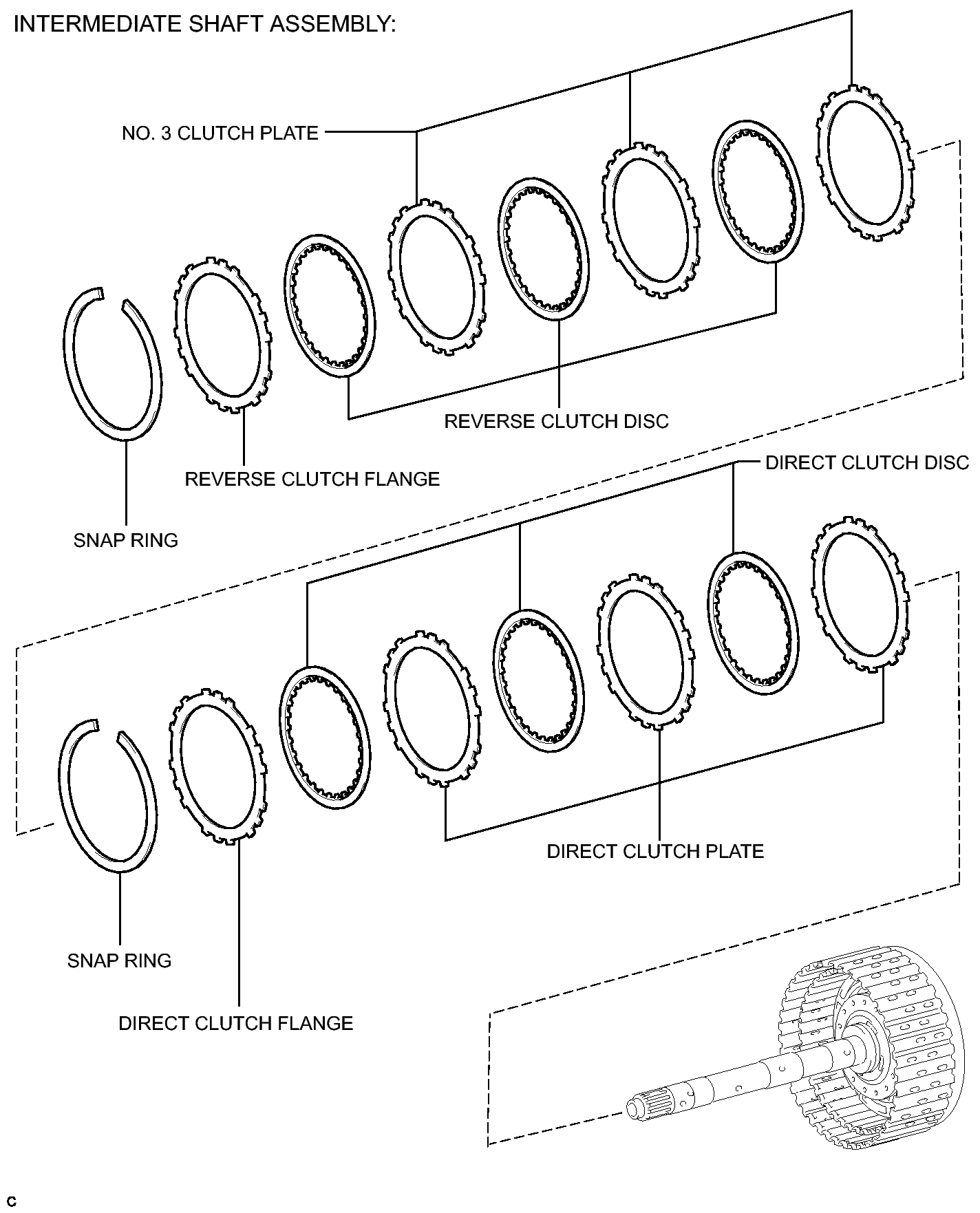

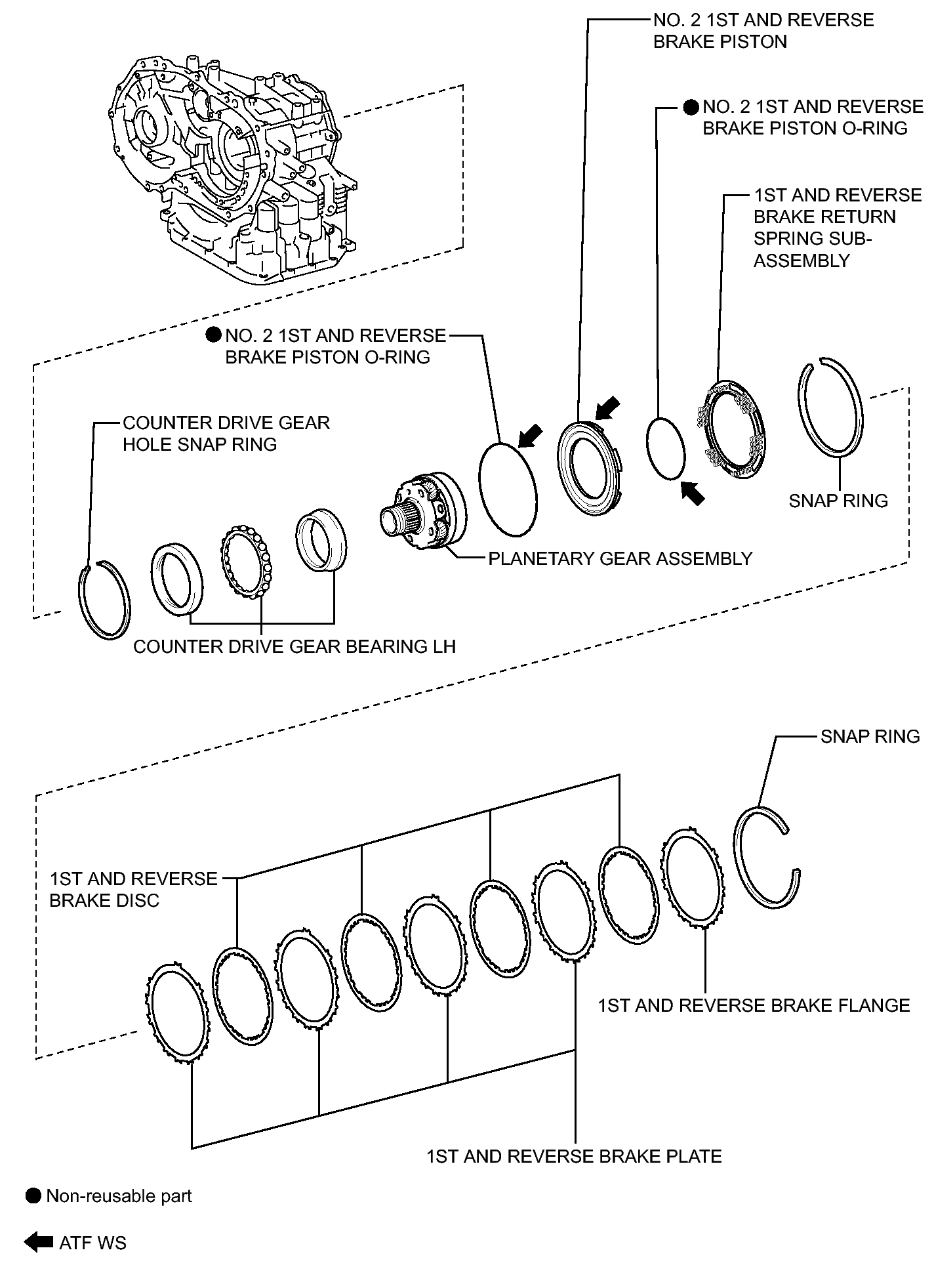

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

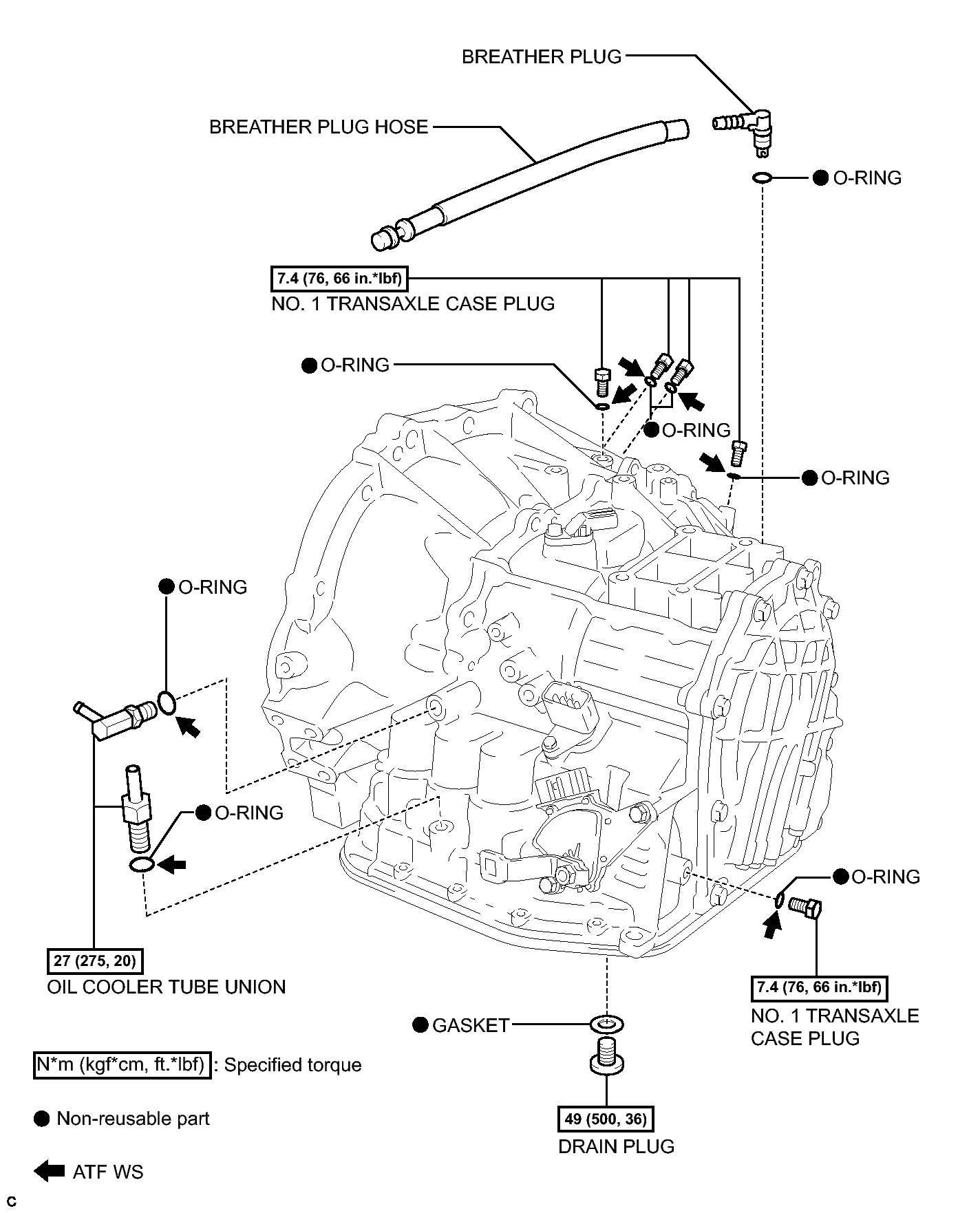

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

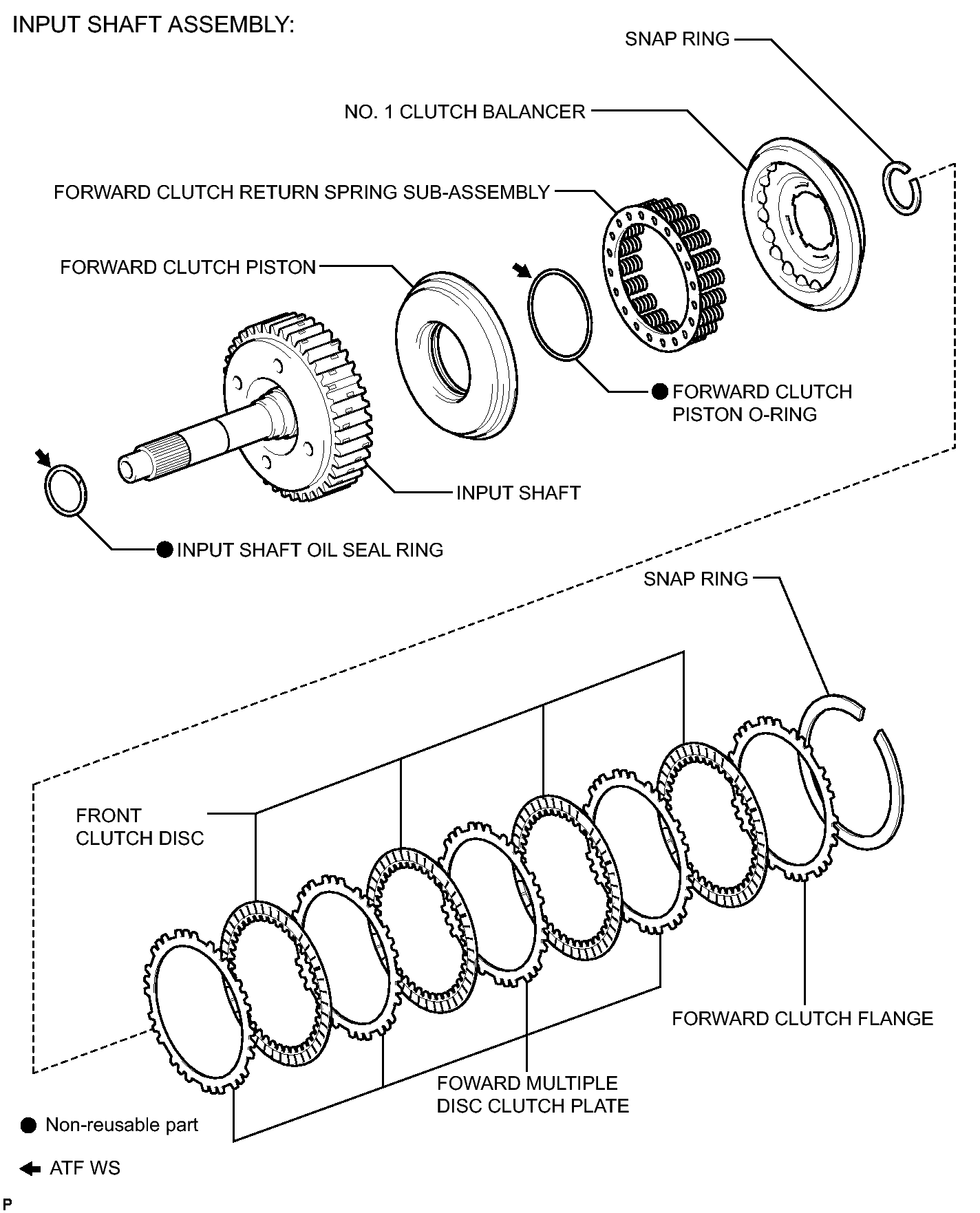

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

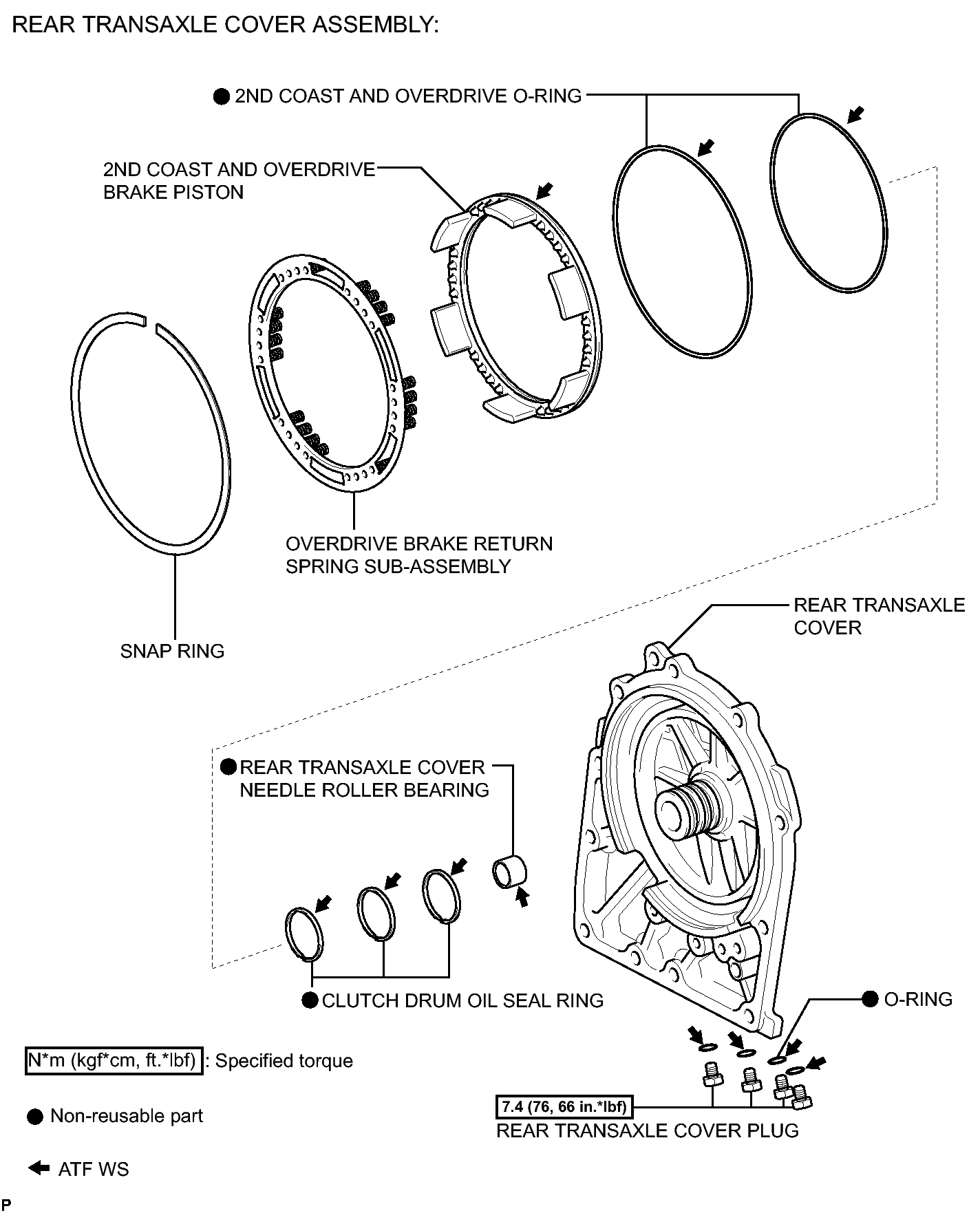

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

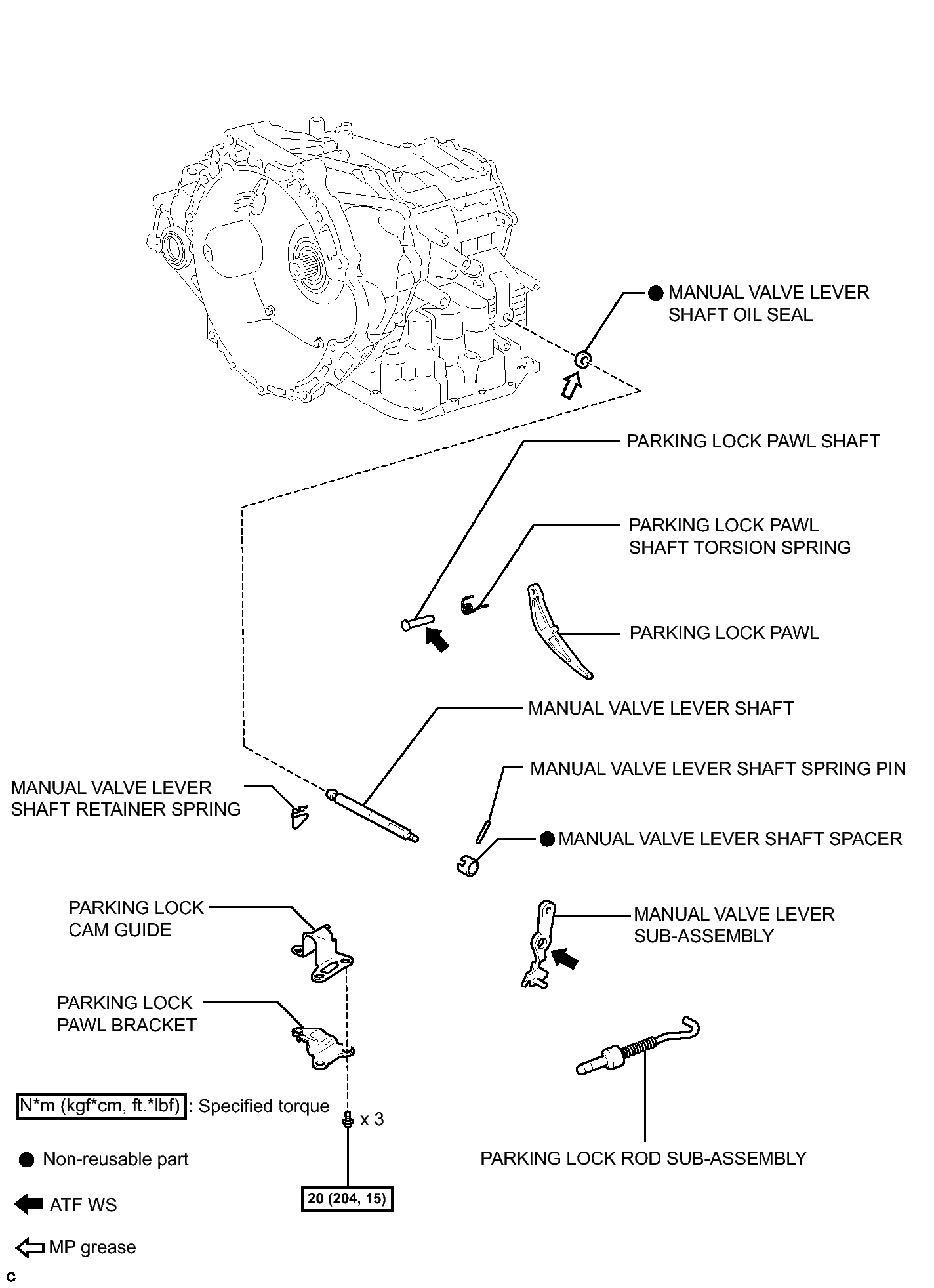

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (11 Of 15)

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (12 Of 15)

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (13 Of 15)

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (14 Of 15)

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (15 Of 15)
