Engine Immobilizer System (w/ Smart Key System), Smart Key System, Starting (w/ Smart Key System), Steering Lock (w/ Smart Key System) and Wireless Door Lock Control (w/ Smart Key System) (Except TMC Made): Notes

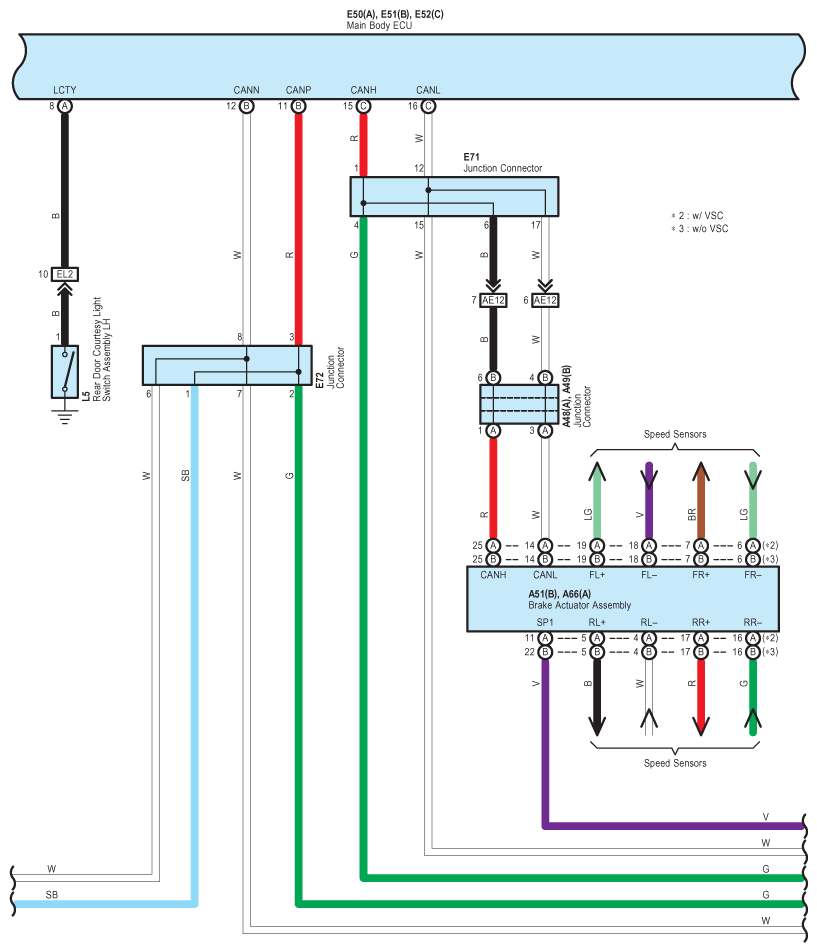

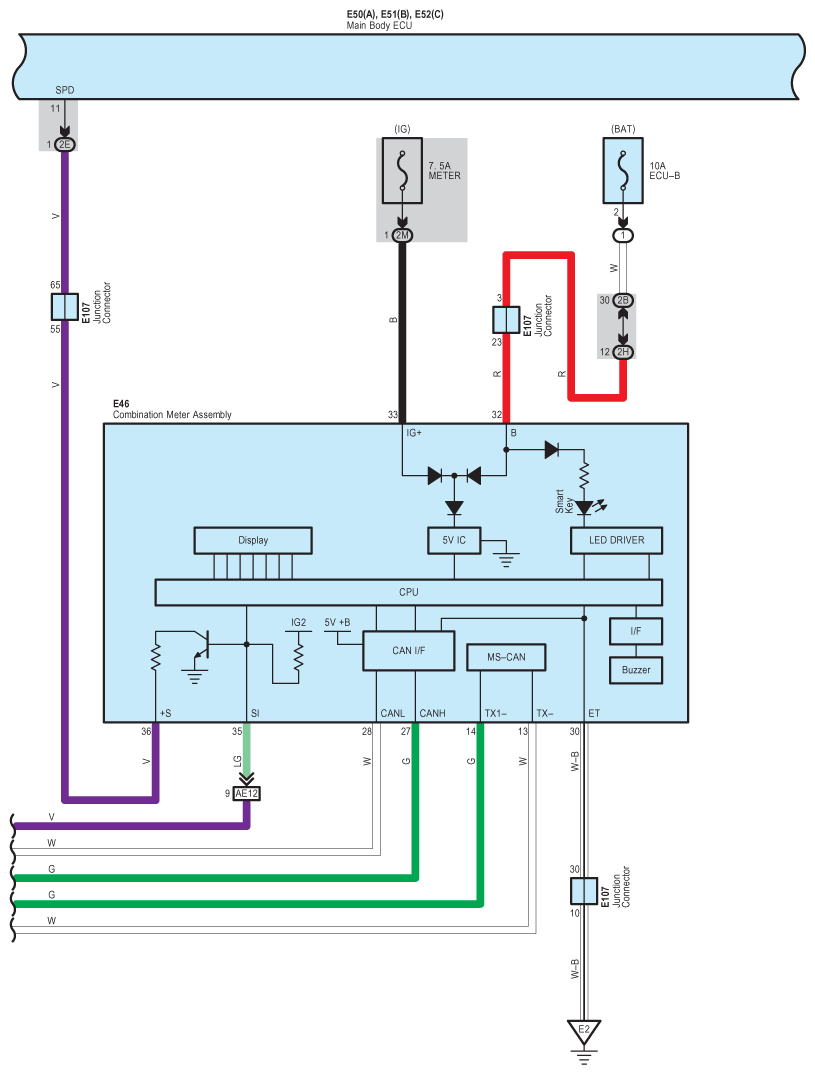

Fig 1: Engine Immobilizer System (Except TMC Made; 1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

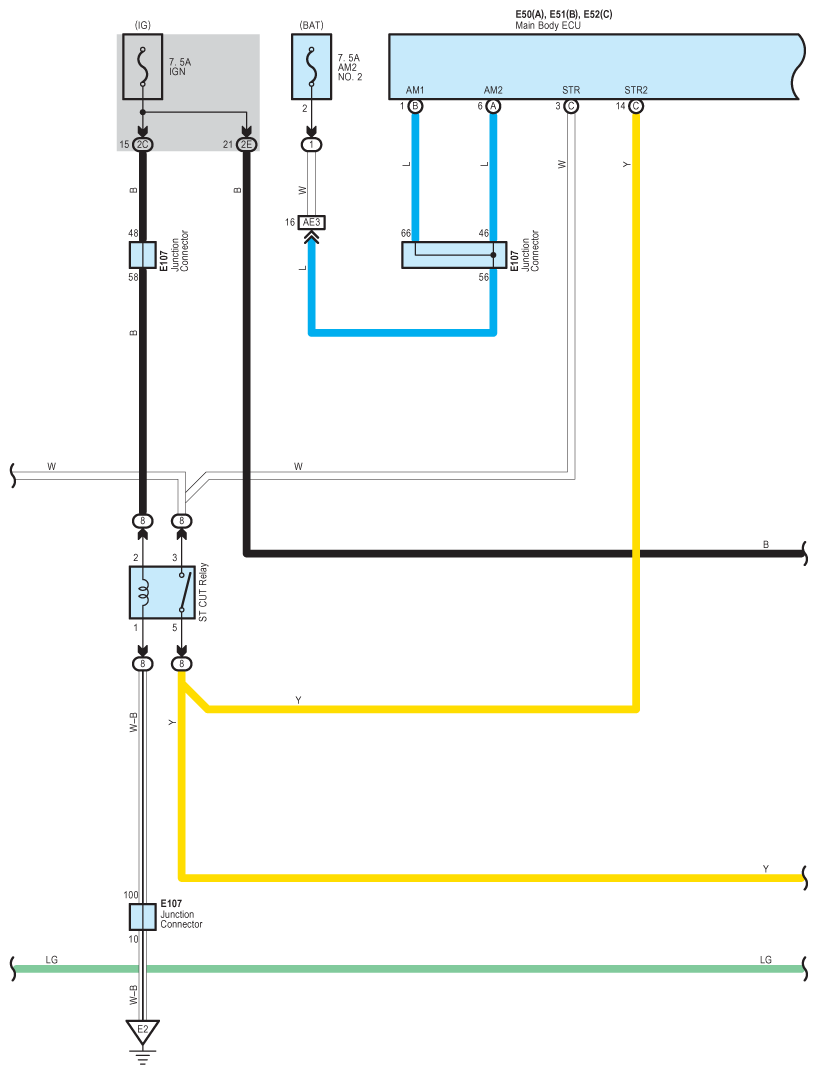

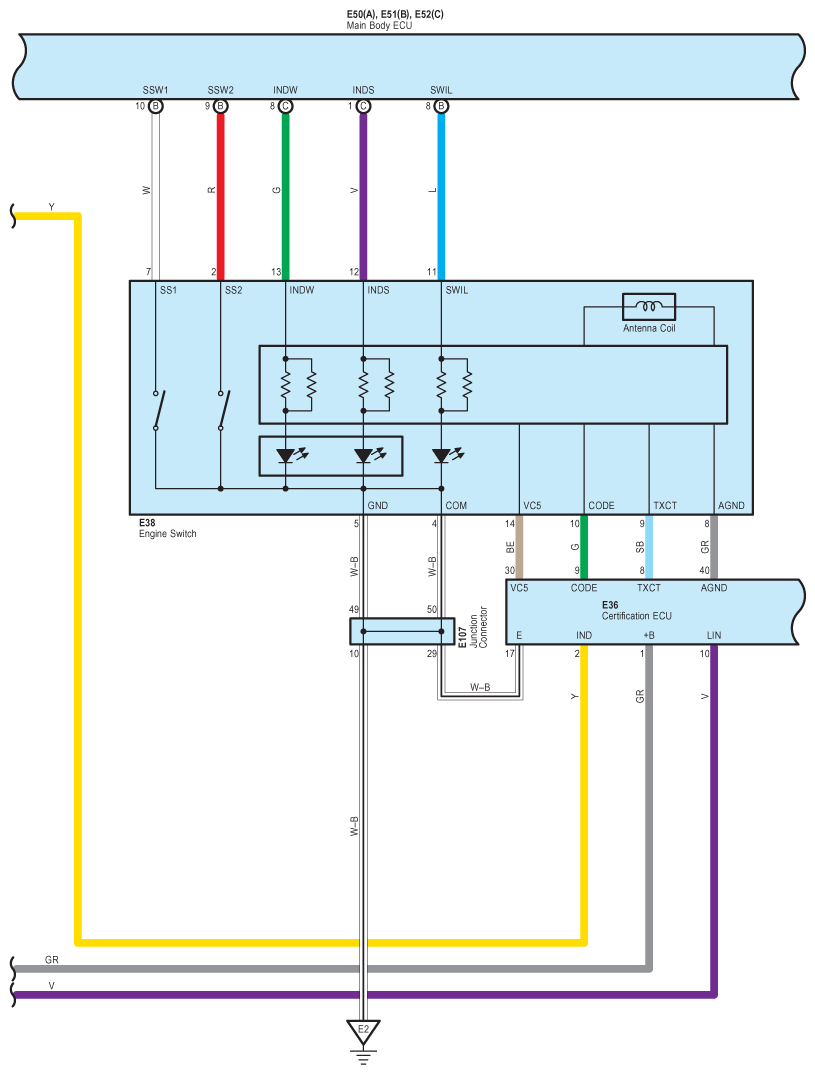

Fig 2: Engine Immobilizer System (Except TMC Made; 2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

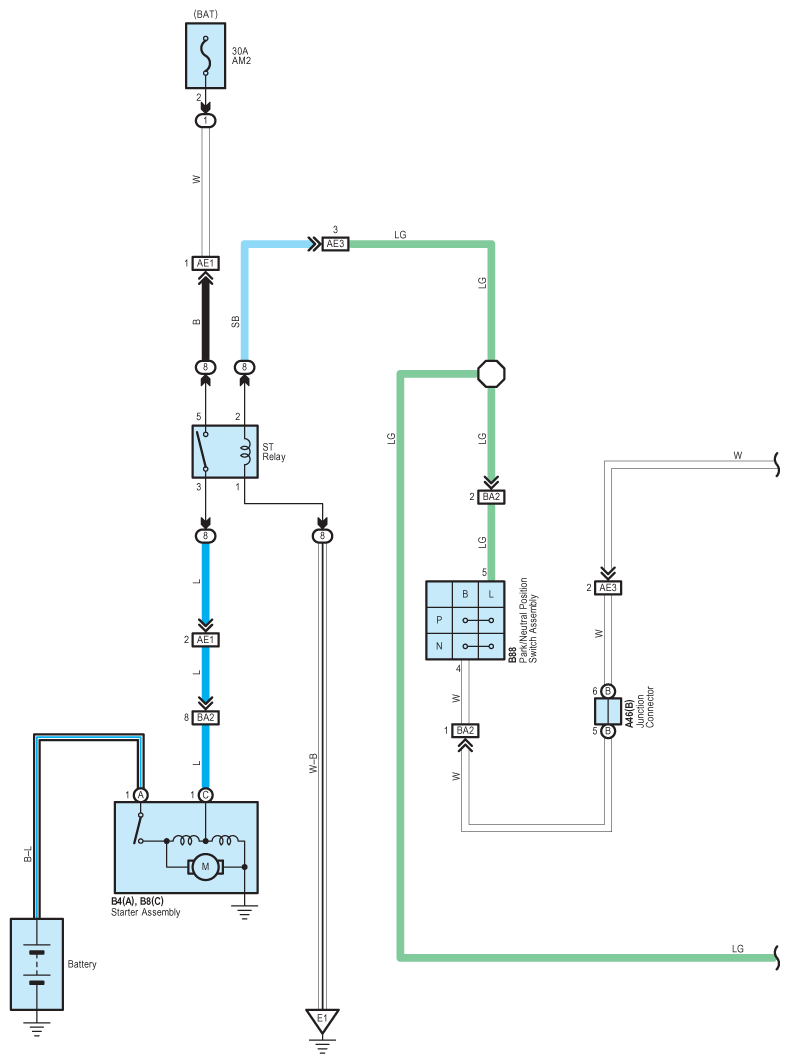

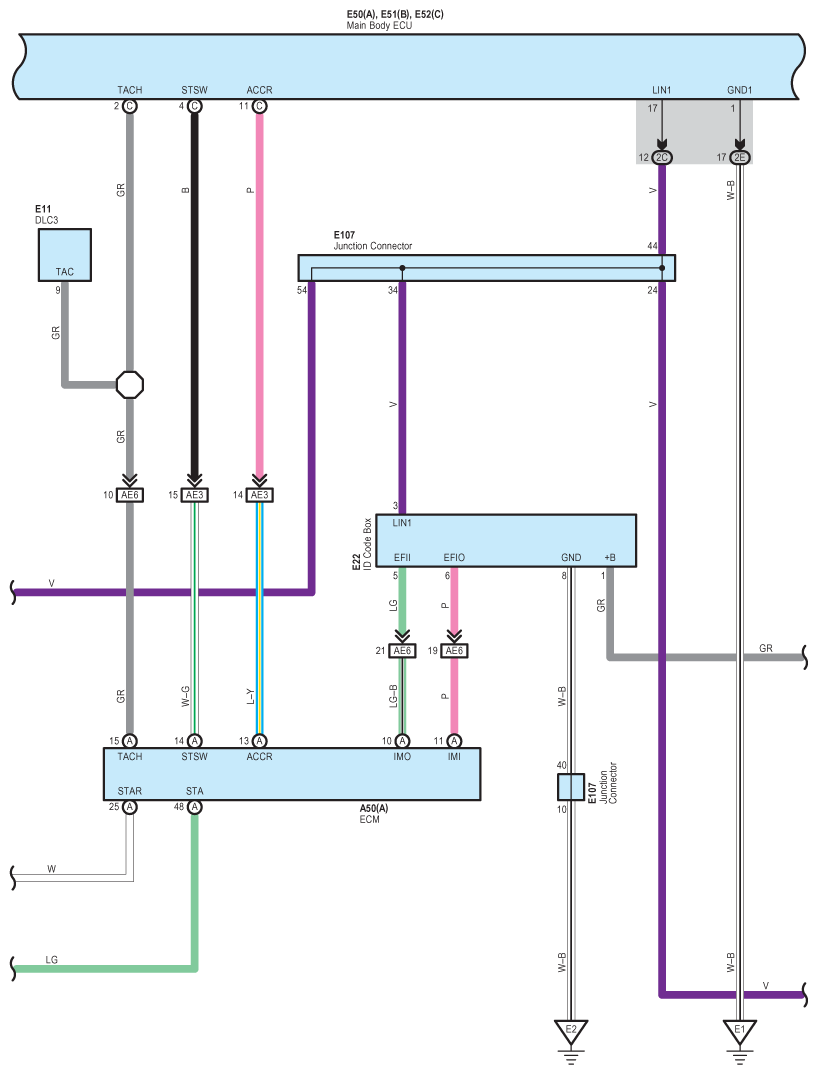

Fig 3: Engine Immobilizer System (Except TMC Made; 3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

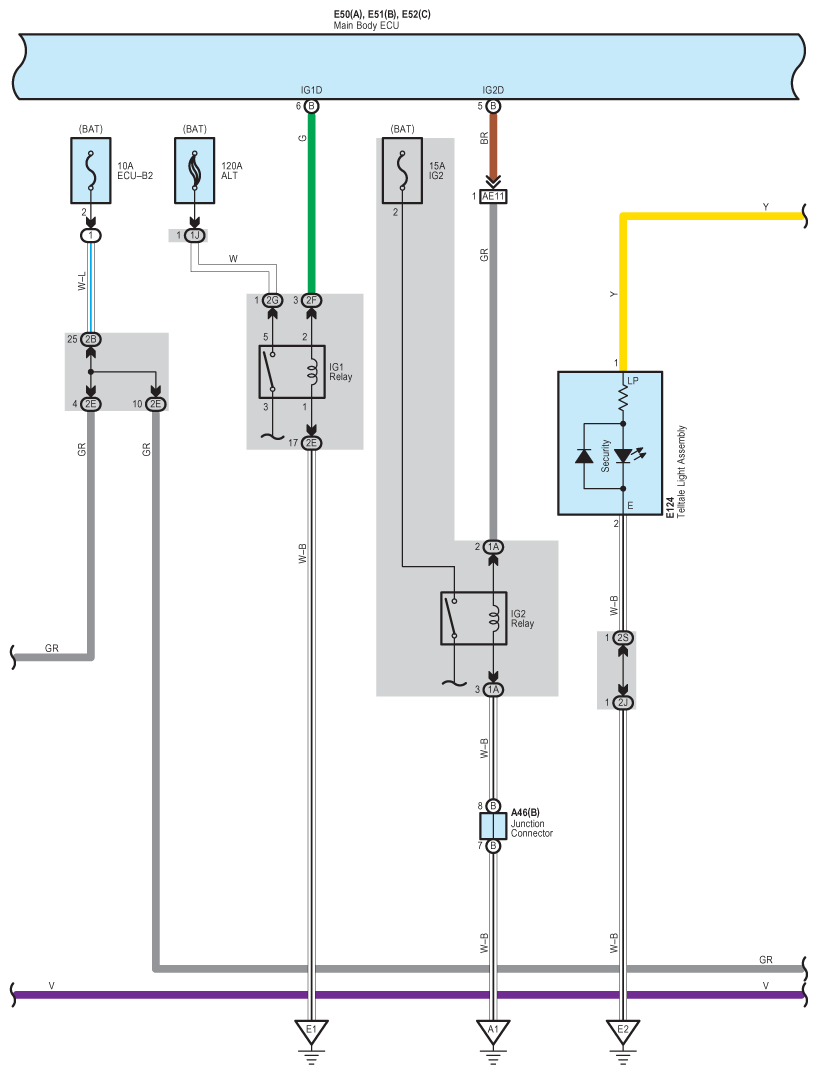

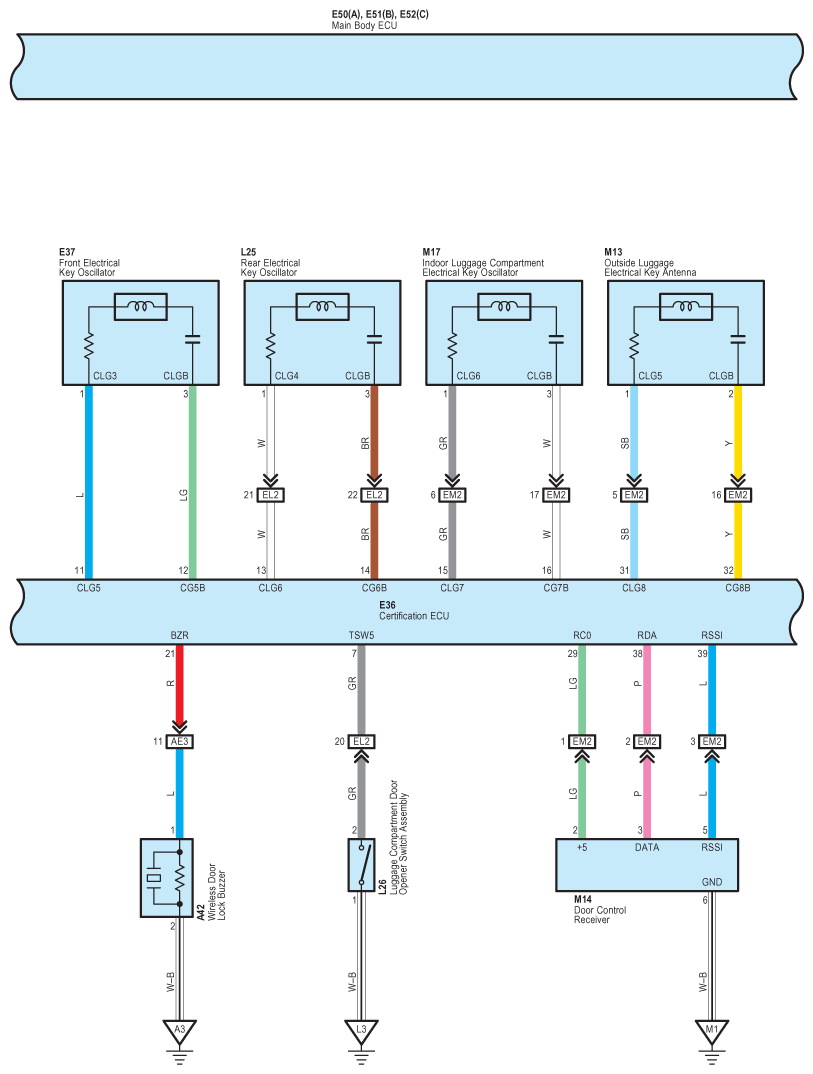

Fig 4: Engine Immobilizer System (Except TMC Made; 4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

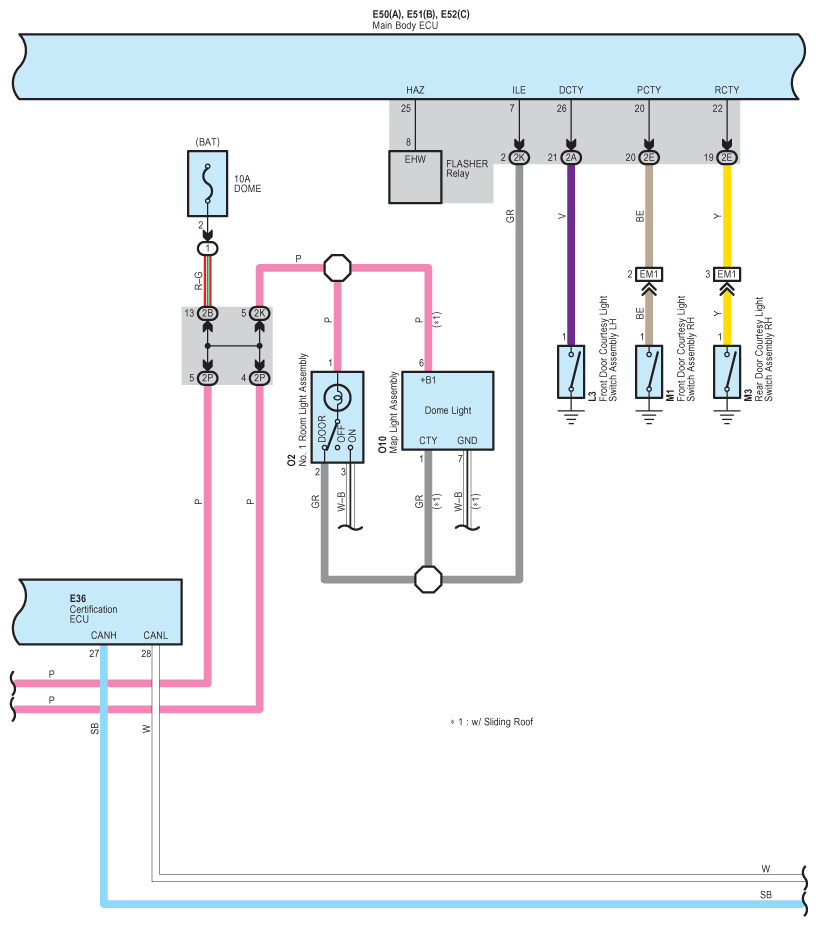

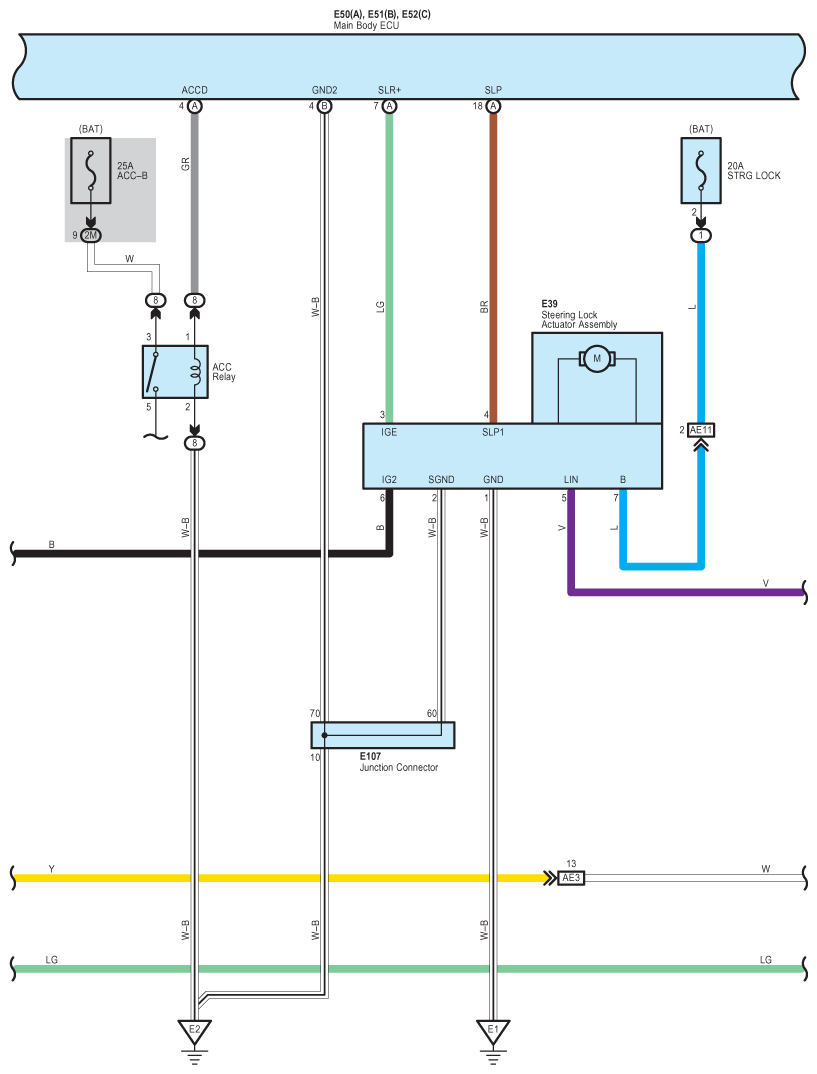

Fig 5: Engine Immobilizer System (Except TMC Made; 5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

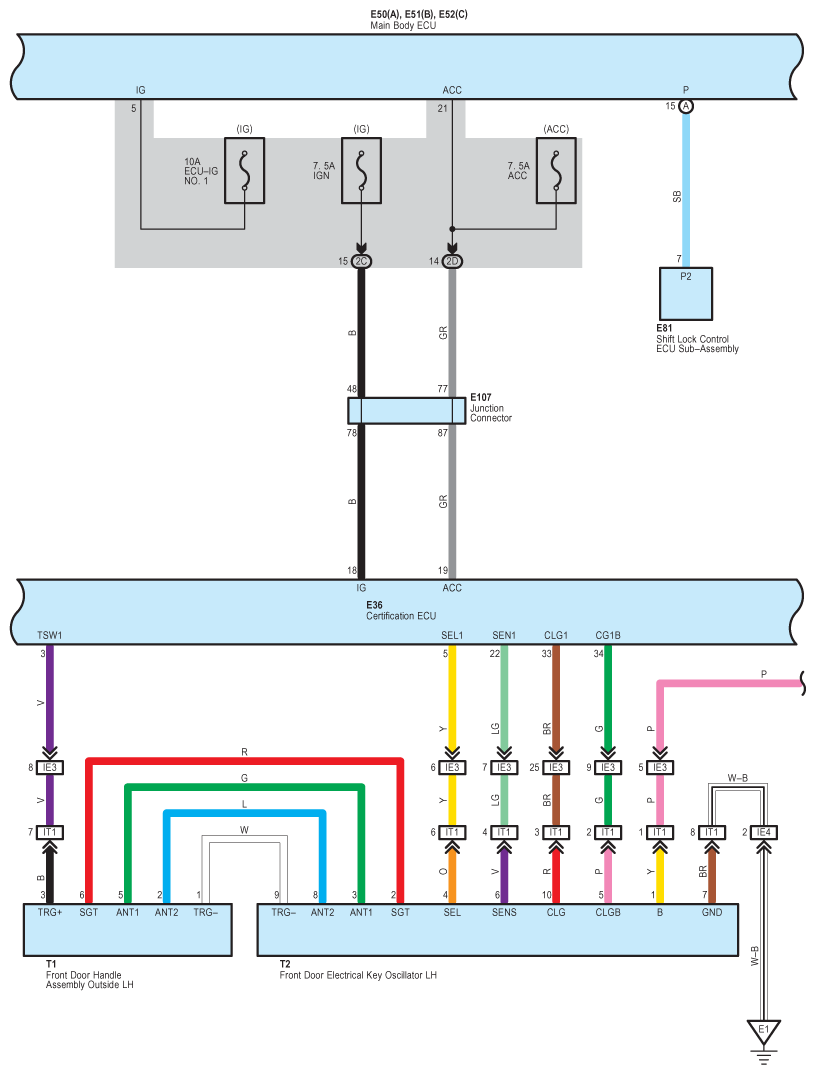

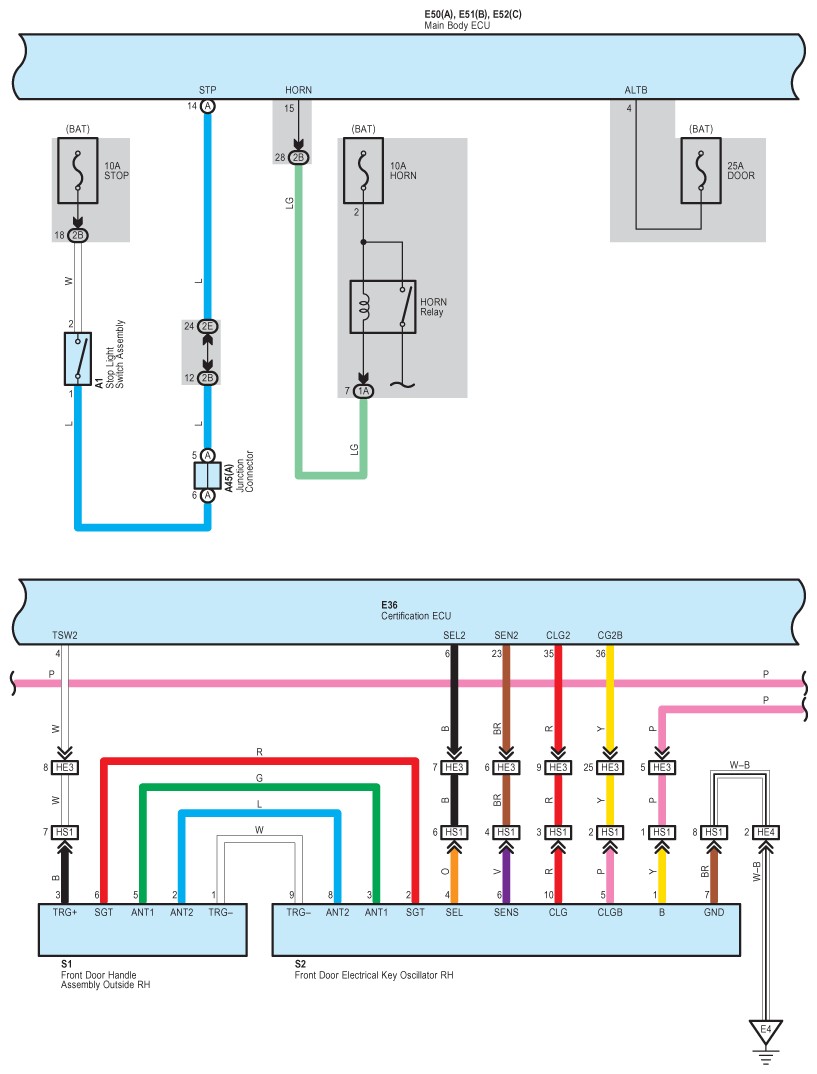

Fig 6: Engine Immobilizer System (Except TMC Made; 6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

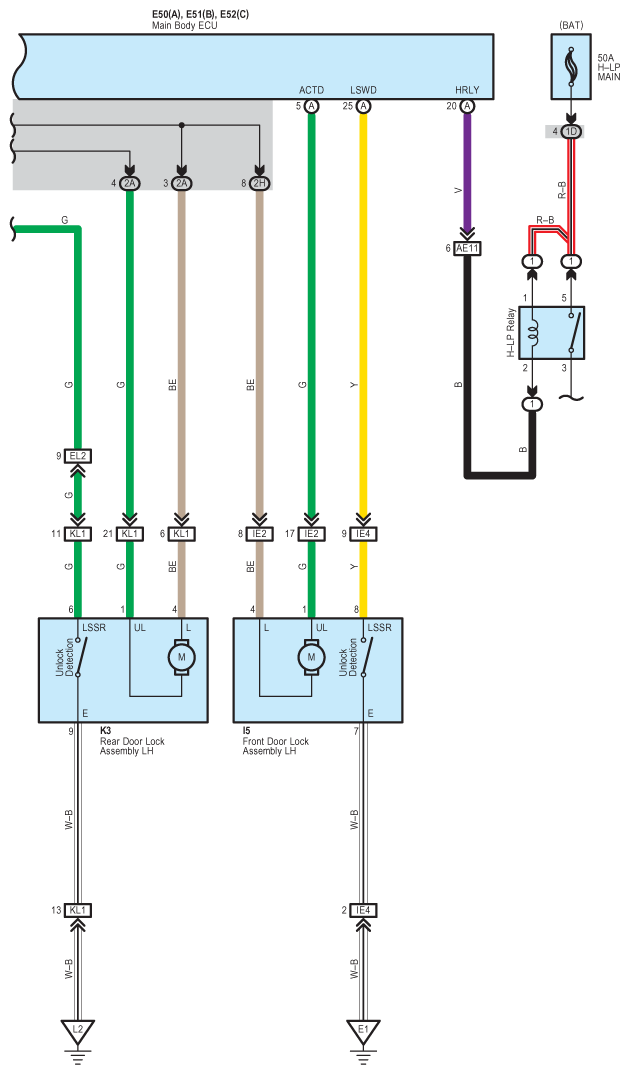

Fig 7: Engine Immobilizer System (Except TMC Made; 7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

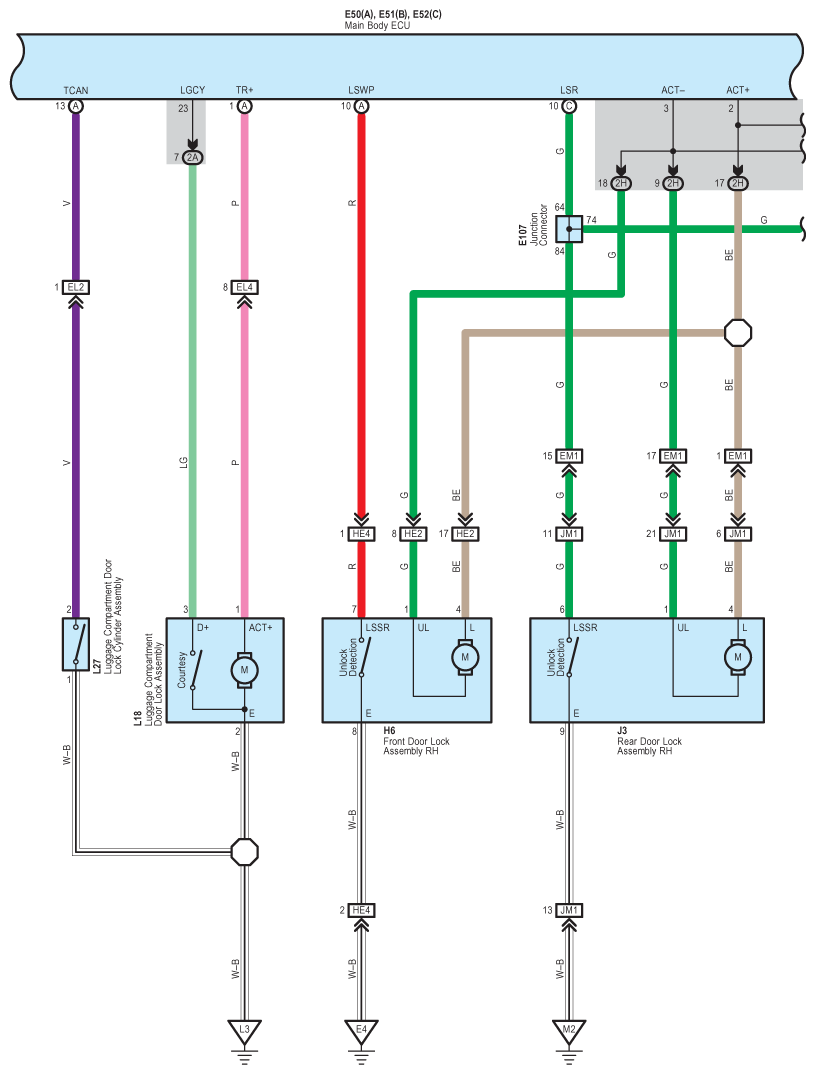

Fig 8: Engine Immobilizer System (Except TMC Made; 8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Immobilizer System (Except TMC Made; 9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Immobilizer System (Except TMC Made; 10 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Immobilizer System (Except TMC Made; 11 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Immobilizer System (Except TMC Made; 12 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Immobilizer System (Except TMC Made; 13 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Immobilizer System (Except TMC Made; 14 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
