Installation

2AZ-FE ENGINE CONTROL: INTEGRATION RELAY: INSTALLATION; 2013 MY Corolla [07/2012 -]

1. INSTALL INTEGRATION NO.2 RELAY

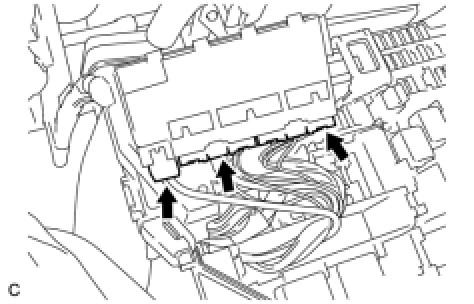

(a) Connect the 3 connectors.

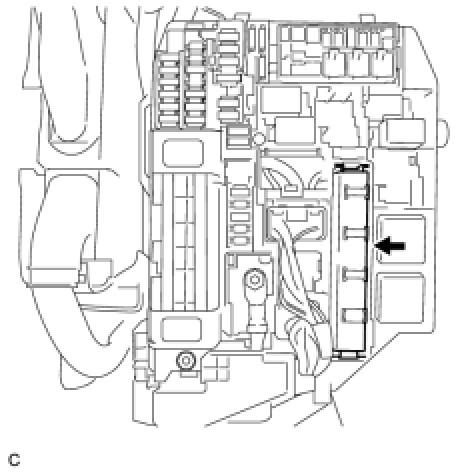

(b) Attach the integration relay to the engine room relay block.





2. INSTALL NO. 1 RELAY BLOCK COVER
