Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL; 2013 MY Corolla [07/2012 -]

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE LOWER NO. 3 STEERING WHEEL COVER Removal

3. REMOVE LOWER NO. 2 STEERING WHEEL COVER Removal

4. REMOVE STEERING PAD Removal

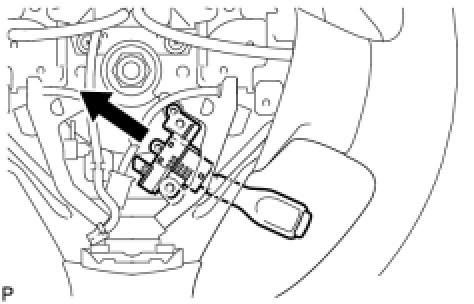

5. REMOVE CRUISE CONTROL MAIN SWITCH

(a) Disconnect the connector.

(b) Remove the 2 screws.
