Corolla Base, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
ABS, TRAC and VSC (TMC Made)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
ABS, TRAC and VSC (TMC Made): Notes

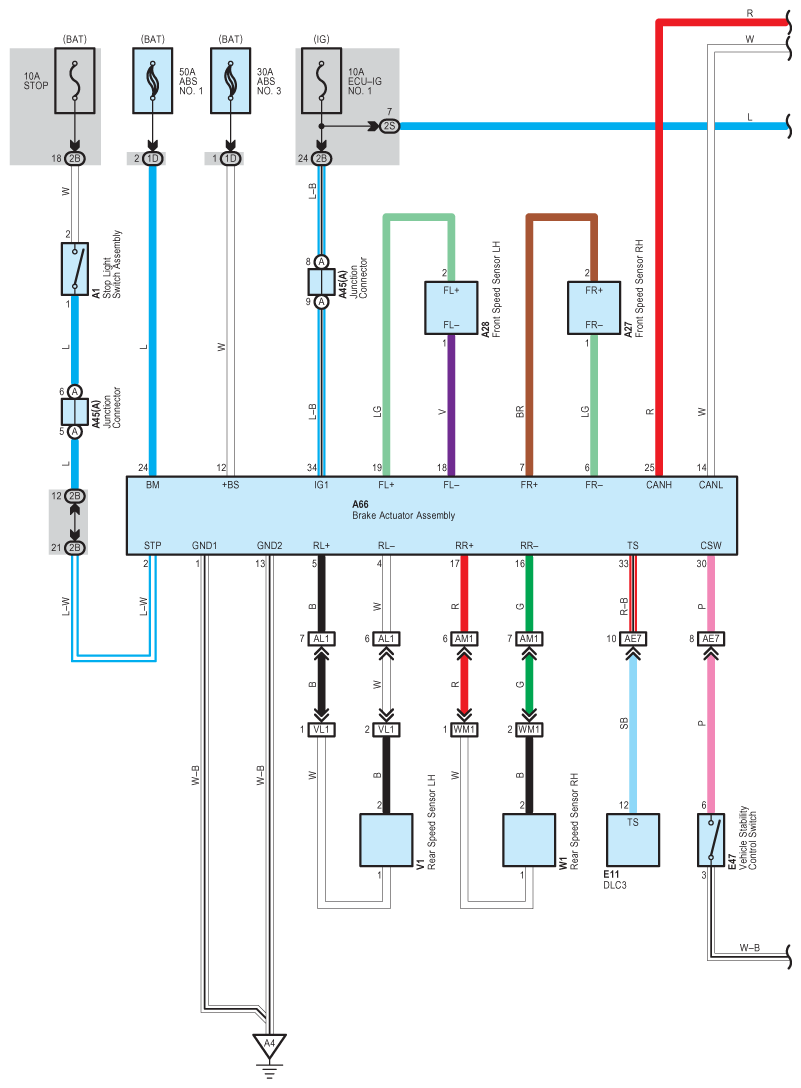

Fig 1: ABS, TRAC And VSC System Wiring Diagram (TMC Made; 1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

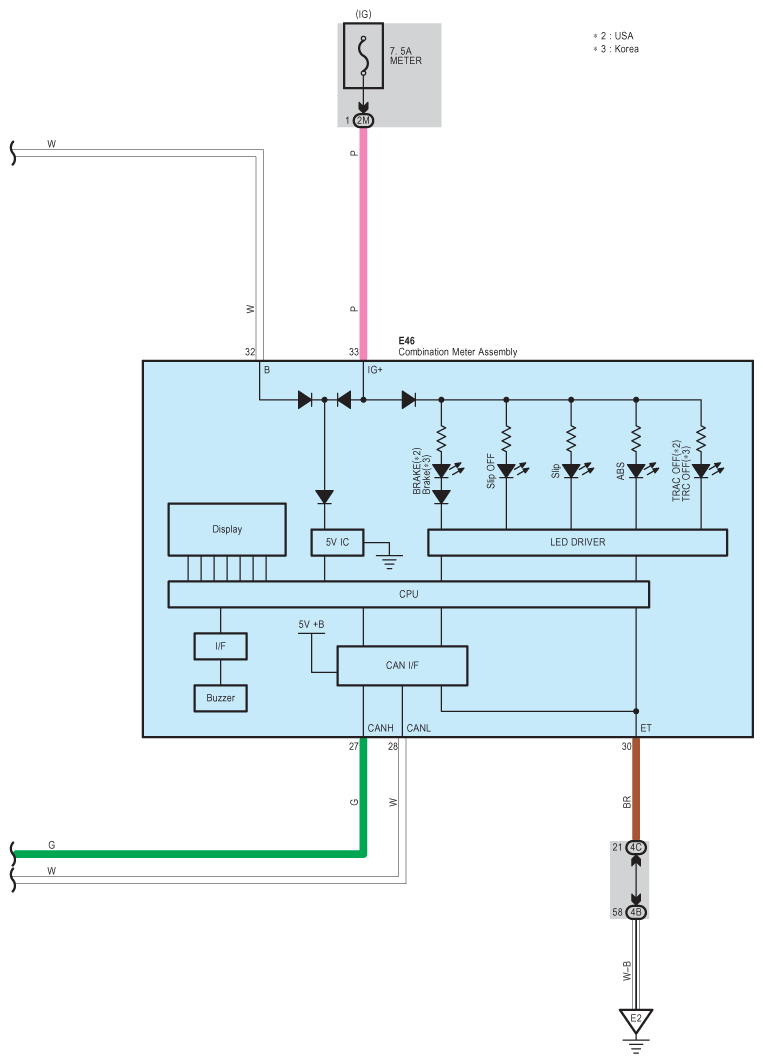

Fig 2: ABS, TRAC And VSC System Wiring Diagram (TMC Made; 2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

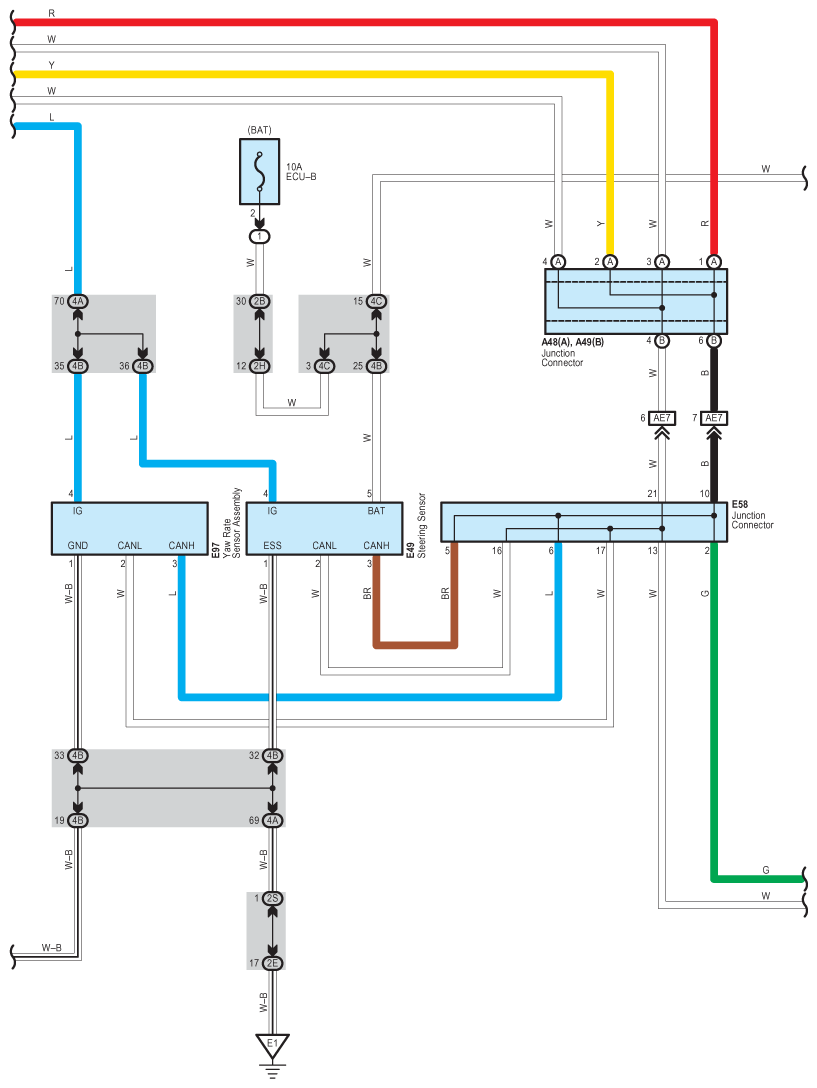

Fig 3: ABS, TRAC And VSC System Wiring Diagram (TMC Made; 3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

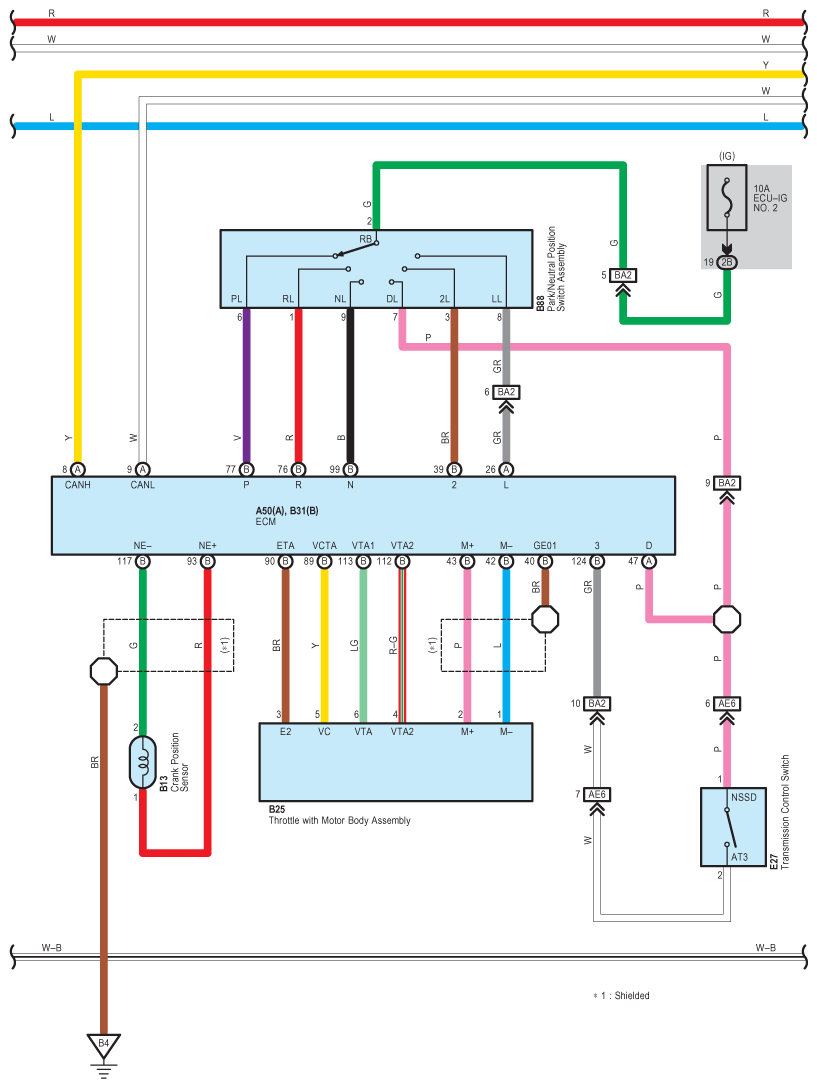

Fig 4: ABS, TRAC And VSC System Wiring Diagram (TMC Made; 4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
