Front Power Seat Control System (Inspection)
>>
Front Power Seat Control System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

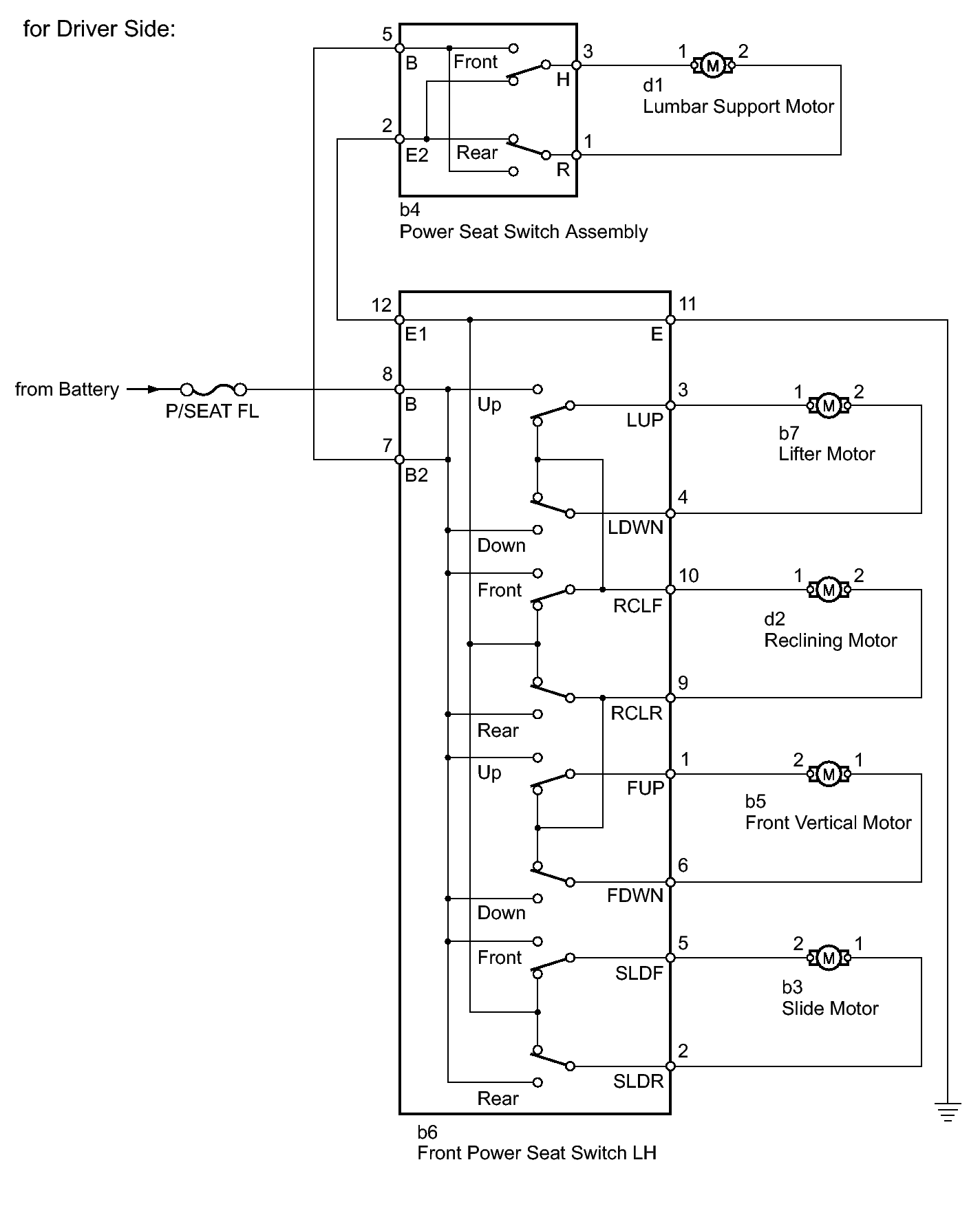

Fig 1: Identifying Front Power Seat Control System Circuit Diagram (Driver's Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

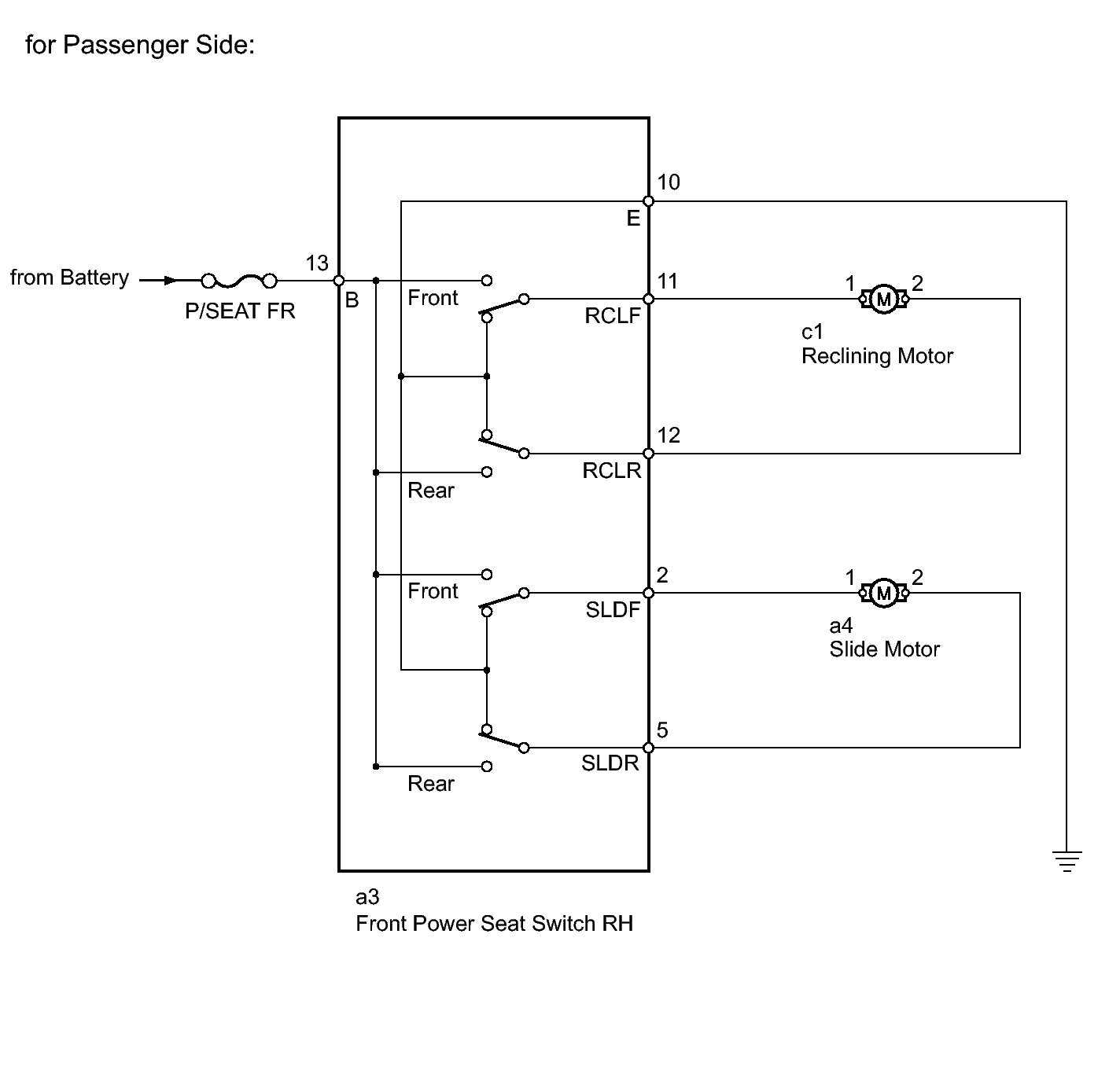

Fig 2: Identifying Front Power Seat Control System Circuit Diagram (Passenger's Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
