Illumination and Taillight (S/D): Notes

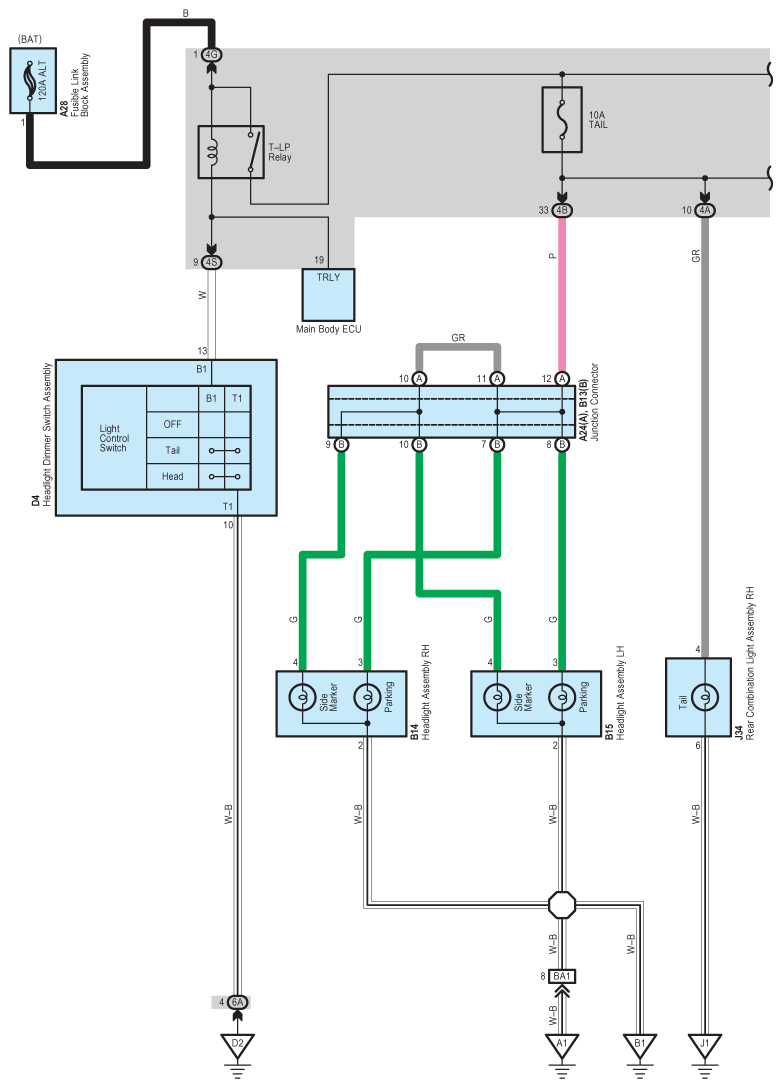

Fig 1: Illumination And Taillight (S/D) - Circuit Diagram (1 Of 4)
G08949414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

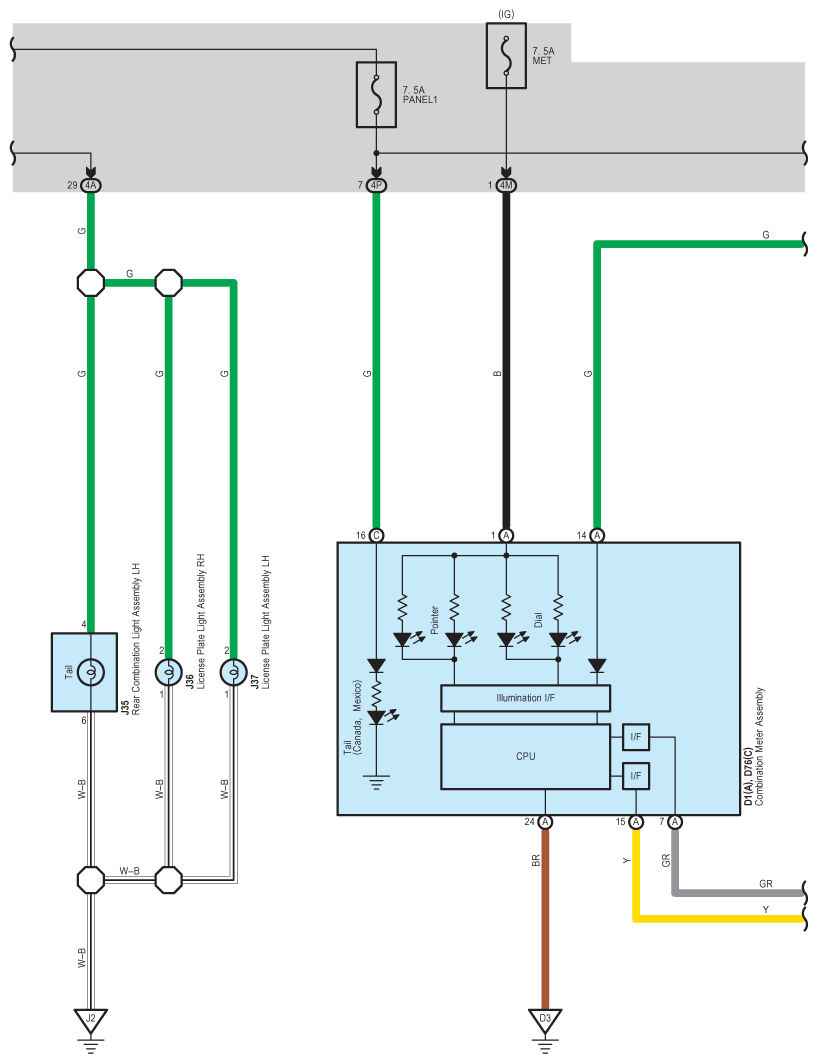

Fig 2: Illumination And Taillight (S/D) - Circuit Diagram (2 Of 4)
G08949415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

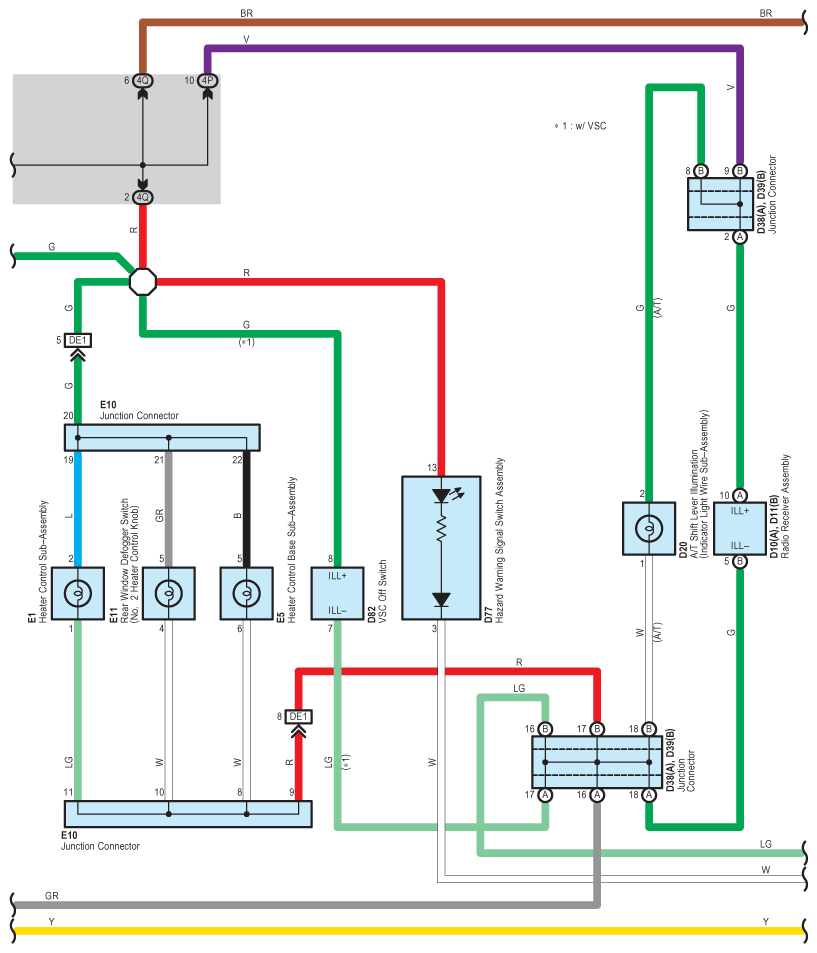

Fig 3: Illumination And Taillight (S/D) - Circuit Diagram (3 Of 4)
G08949416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

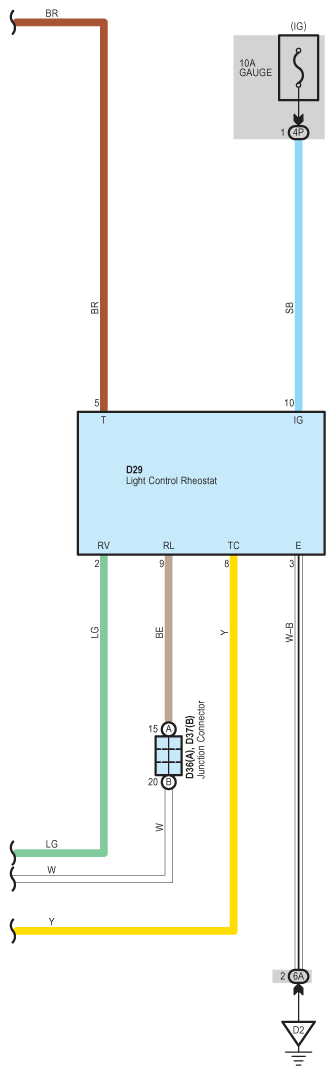

Fig 4: Illumination And Taillight (S/D) - Circuit Diagram (4 Of 4)
G08949417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
