Power Source (H/B): Notes

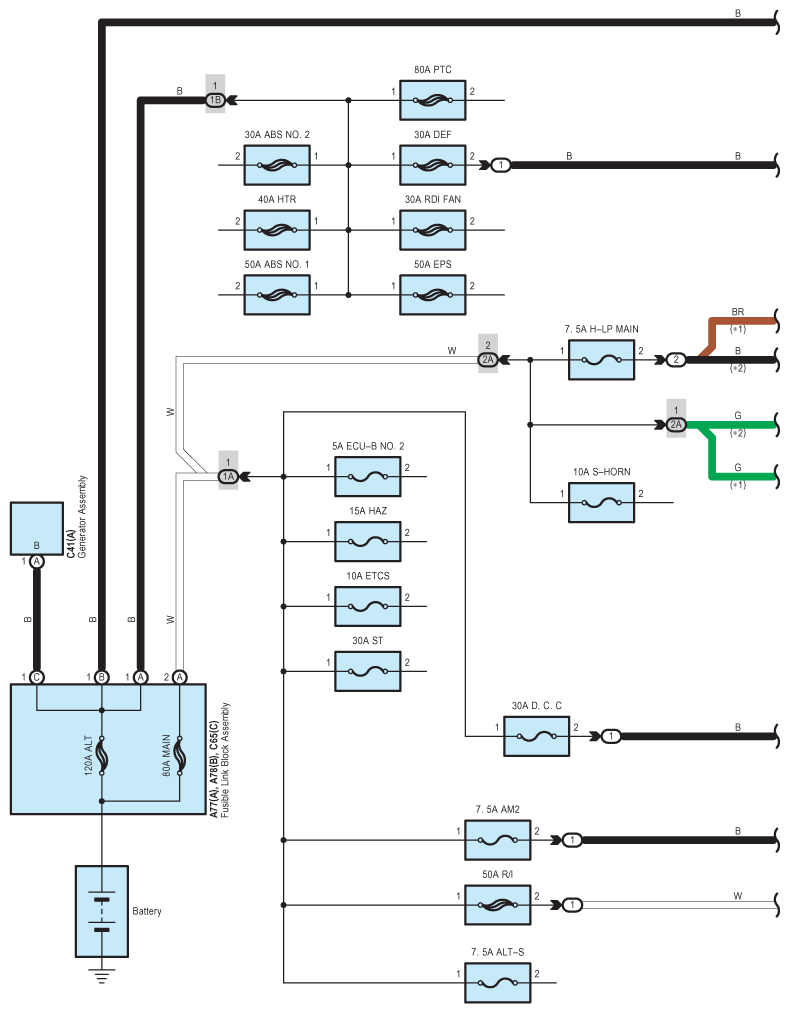

Fig 1: Power Source (H/B) - Circuit Diagram (1 Of 5)
G08949238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

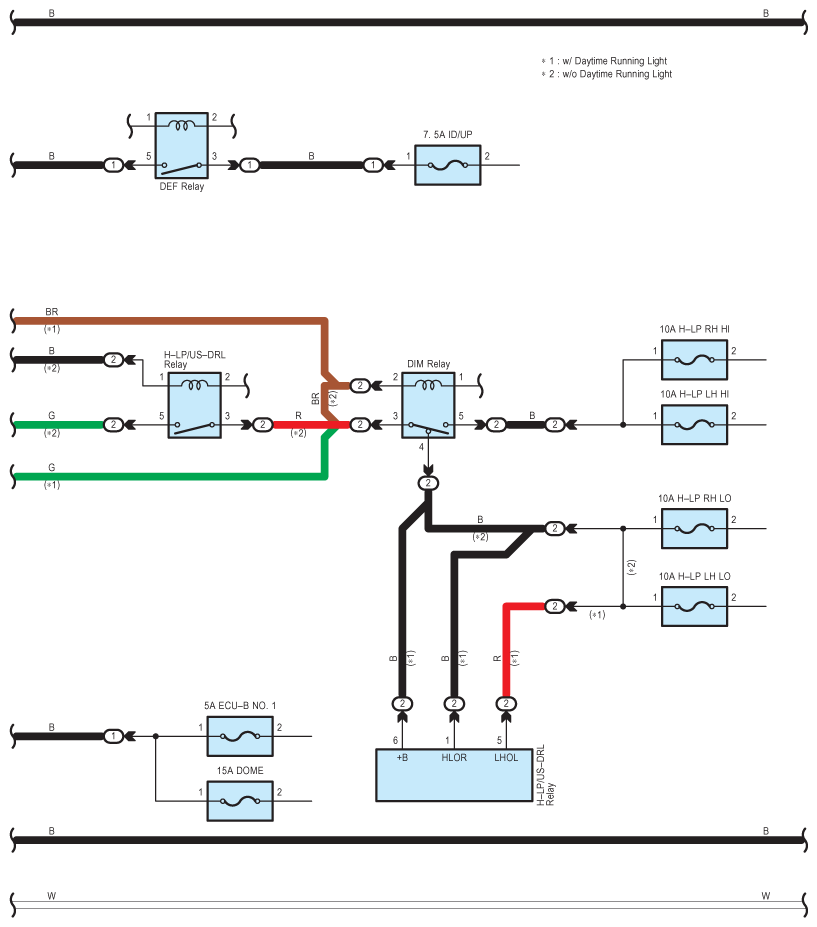

Fig 2: Power Source (H/B) - Circuit Diagram (2 Of 5)
G08949239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

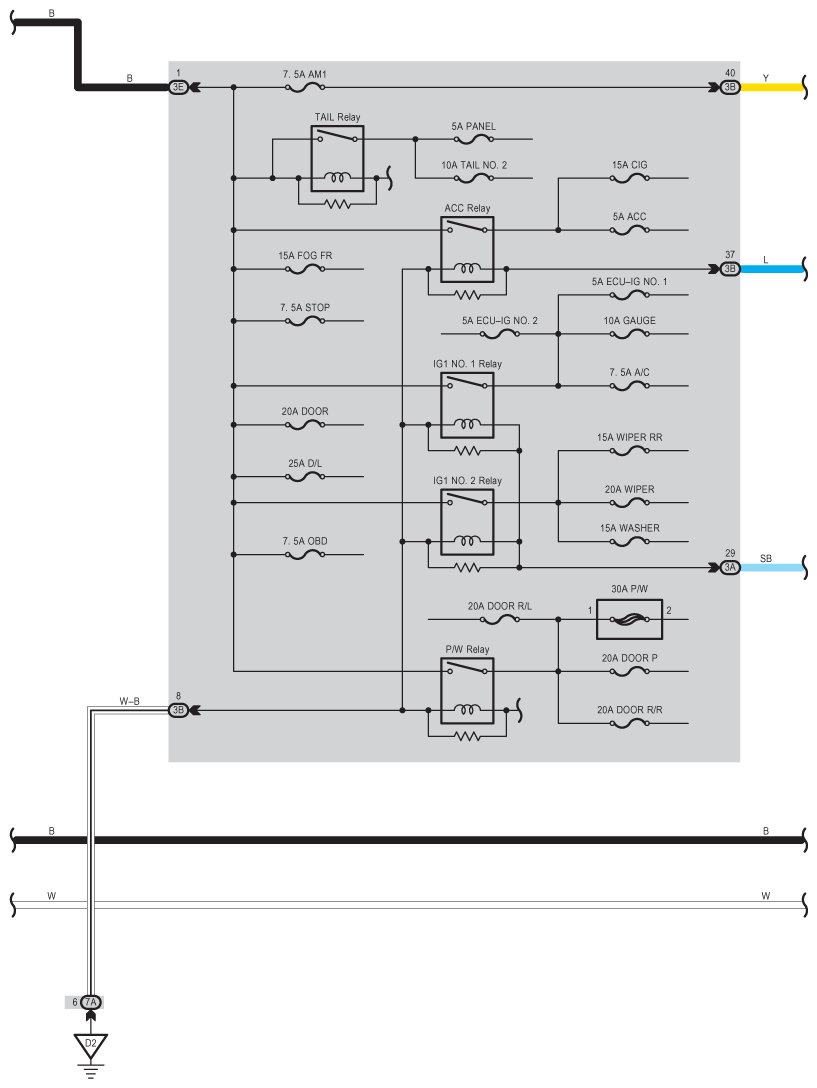

Fig 3: Power Source (H/B) - Circuit Diagram (3 Of 5)
G08949240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

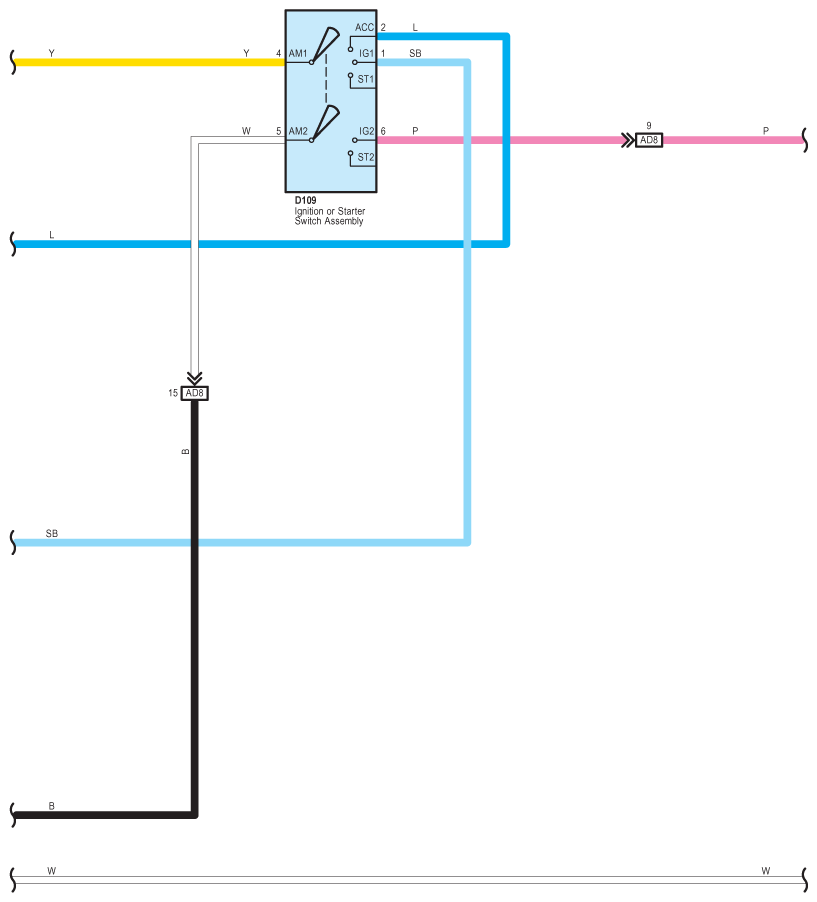

Fig 4: Power Source (H/B) - Circuit Diagram (4 Of 5)
G08949241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

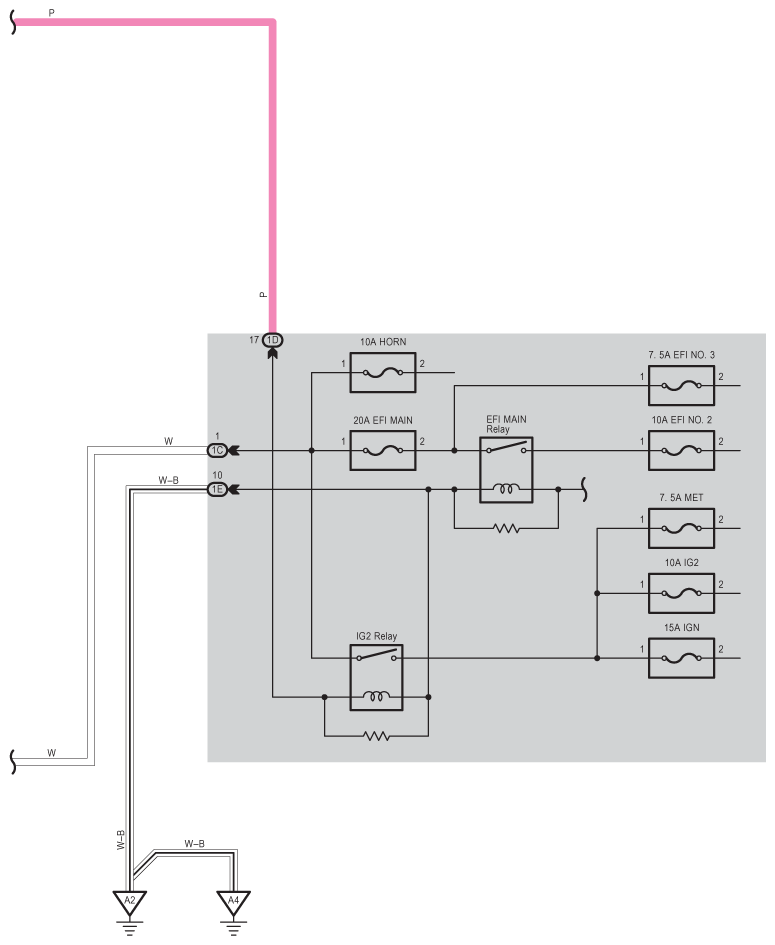

Fig 5: Power Source (H/B) - Circuit Diagram (5 Of 5)
G08949242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
