Ignition Coil And Spark Plug: Removal: Removal

  1. REMOVE NO. 1 ENGINE UNDER COVER
  2. REMOVE NO. 2 ENGINE UNDER COVER
  3. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 4
  4. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Remove the windshield wiper motor and link assembly. Refer to REMOVAL .
  5. REMOVE COWL TOP PANEL OUTER SUB-ASSEMBLY  . Refer to REMOVAL - Step 10
  6. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 17
  7. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 18
  8. REMOVE AIR CLEANER CAP WITH HOSE  See step  5
  9. REMOVE INTAKE AIR SURGE TANK ASSEMBLY  . Refer to REMOVAL - Step 16
  10. REMOVE NO. 1 SURGE TANK STAY  . Refer to REMOVAL - Step 4
  11. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 3 wire harness clamps.

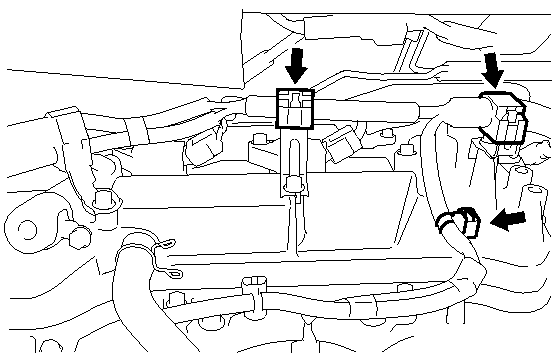

      Fig 1: Locating Ignition Coil Wire Harness Clamps
      GTY251414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 6 ignition coil connectors.

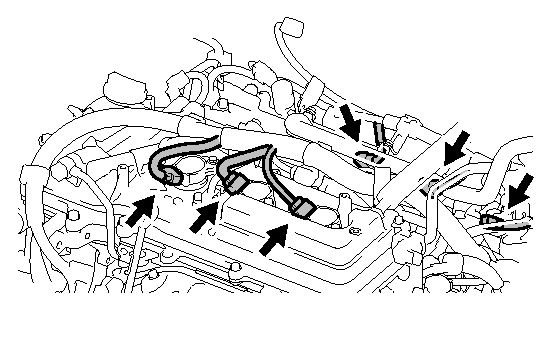

      Fig 2: Locating Ignition Coil Connectors
      GTY248276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 6 bolts and 6 ignition coils.

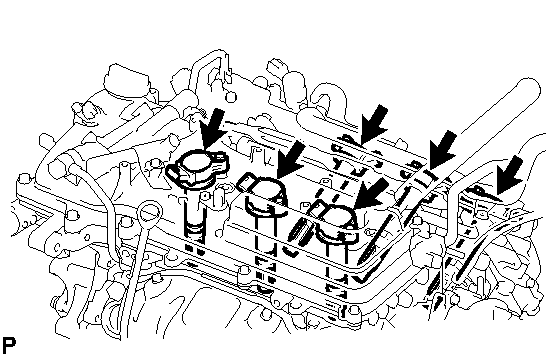

      Fig 3: Locating Ignition Coils
      GTY237622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE SPARK PLUG
    1. Remove the 6 spark plugs.
      Fig 4: Locating Spark Plugs
      GTY194824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
