OEM System Circuits: Headlight: Notes

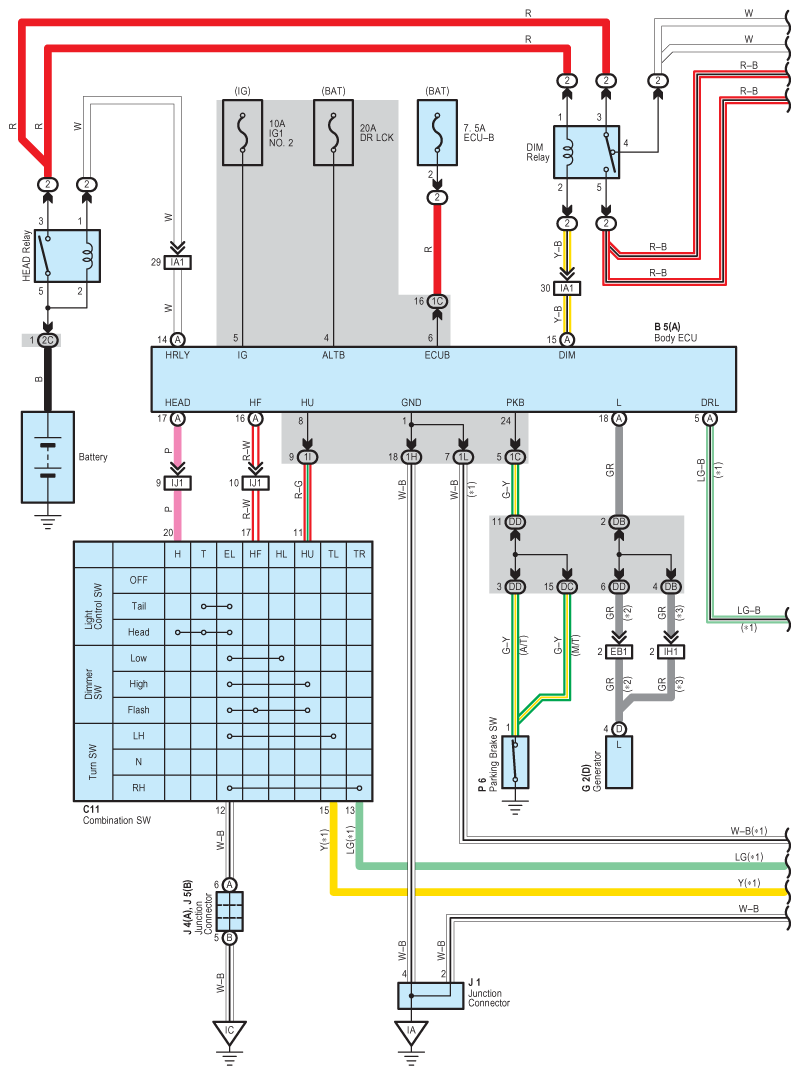

Fig 1: Headlight Wiring Diagram (1 Of 3)
G08847177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Headlight Wiring Diagram (2 Of 3)
G08847178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

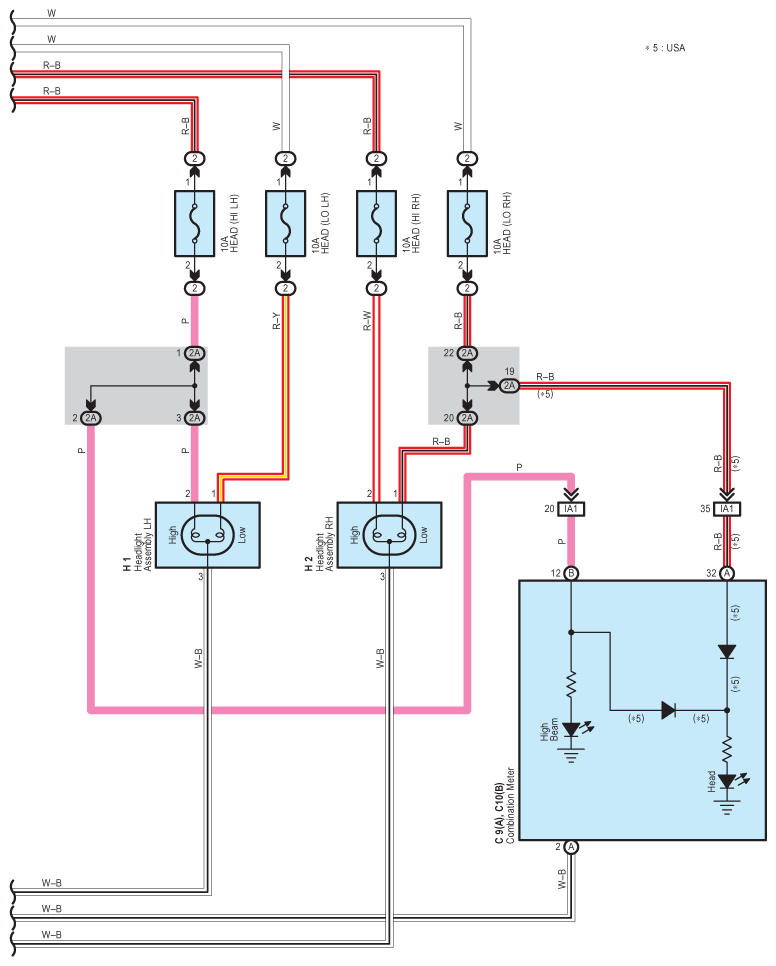

Fig 3: Headlight Wiring Diagram (3 Of 3)
G08847179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
