Service Data





SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

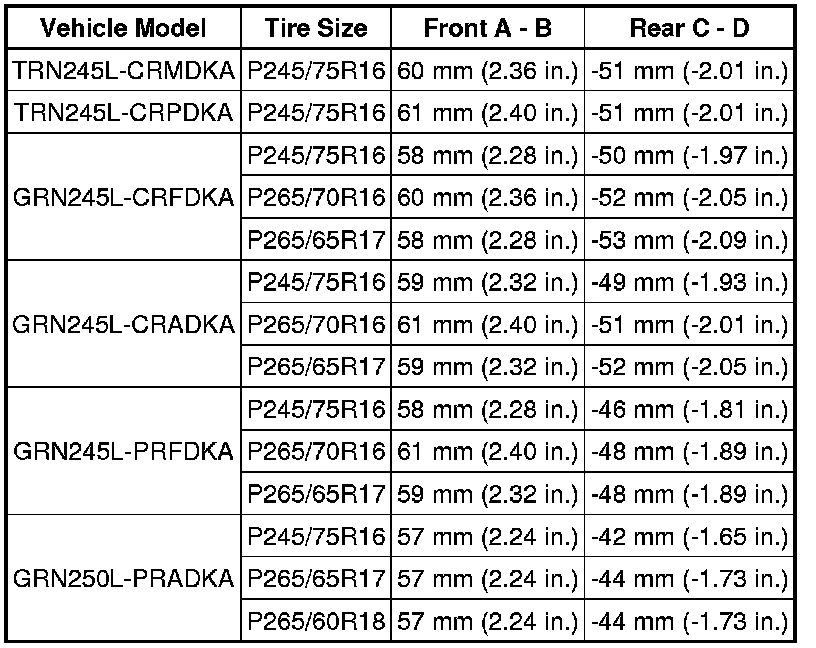

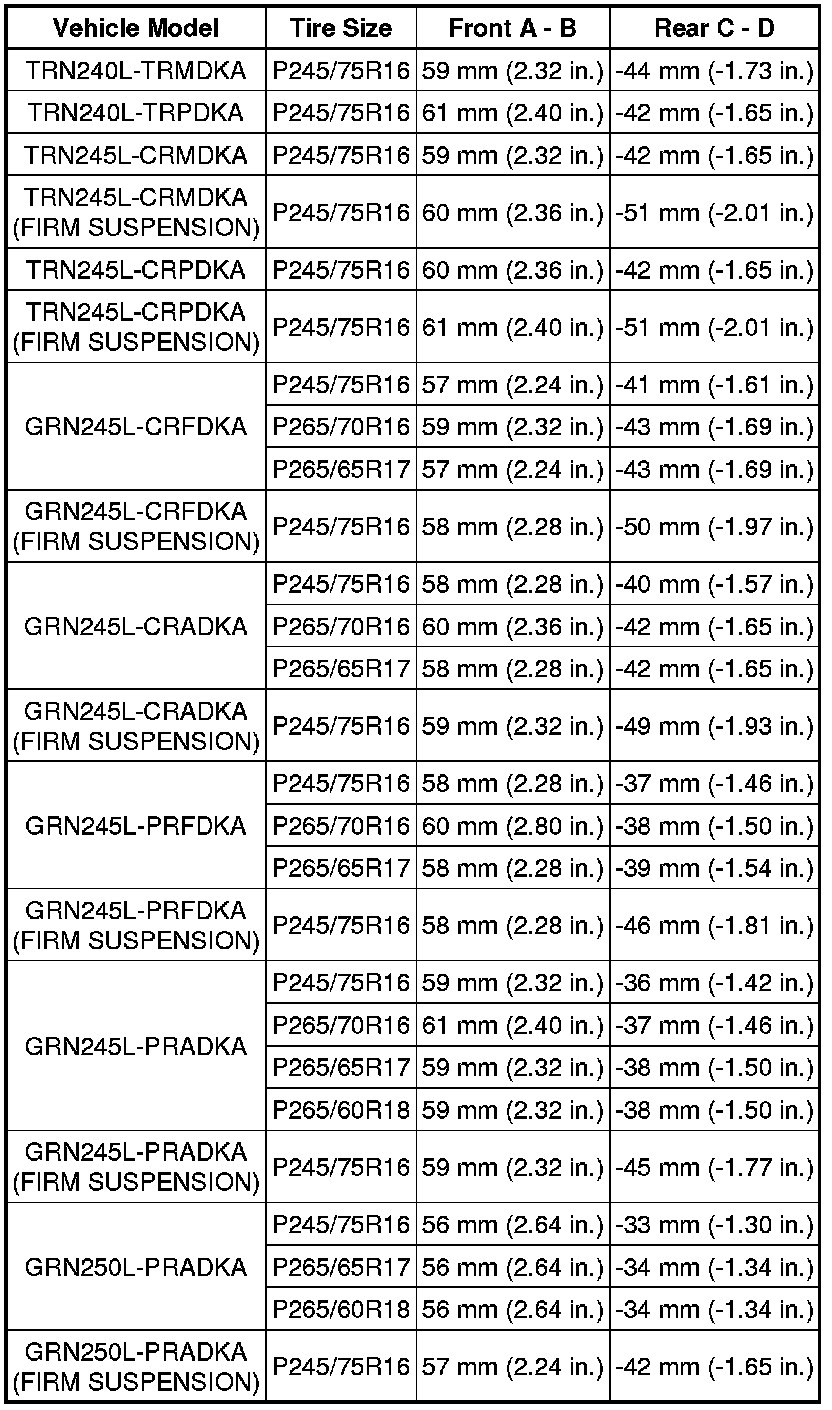

Vehicle Height for 2WD:

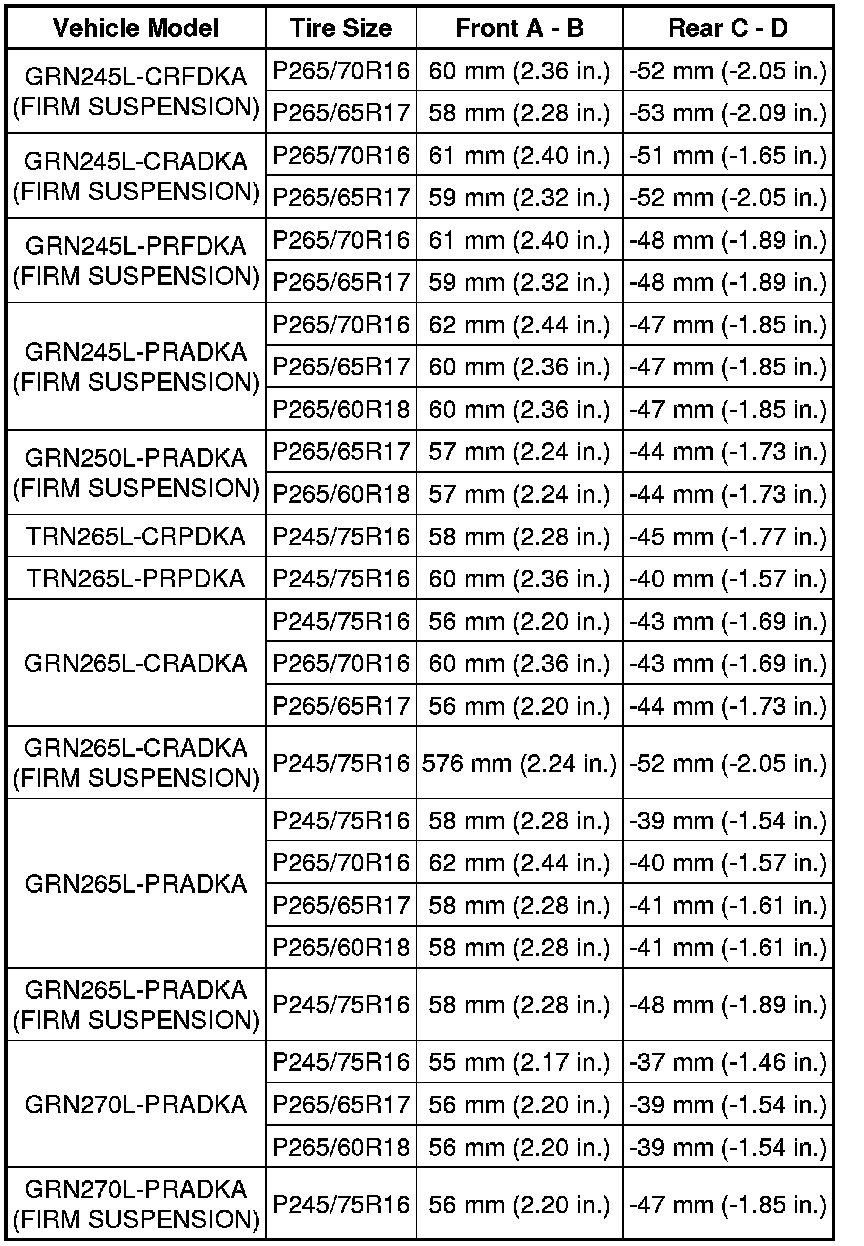

Vehicle Height for 4WD (USA):






Vehicle Height for 4WD (USA Possession):






Vehicle Height for 4WD (Mexico/4 Leaf Spring):






Vehicle Height for 4WD (Canada/4 Leaf Spring):

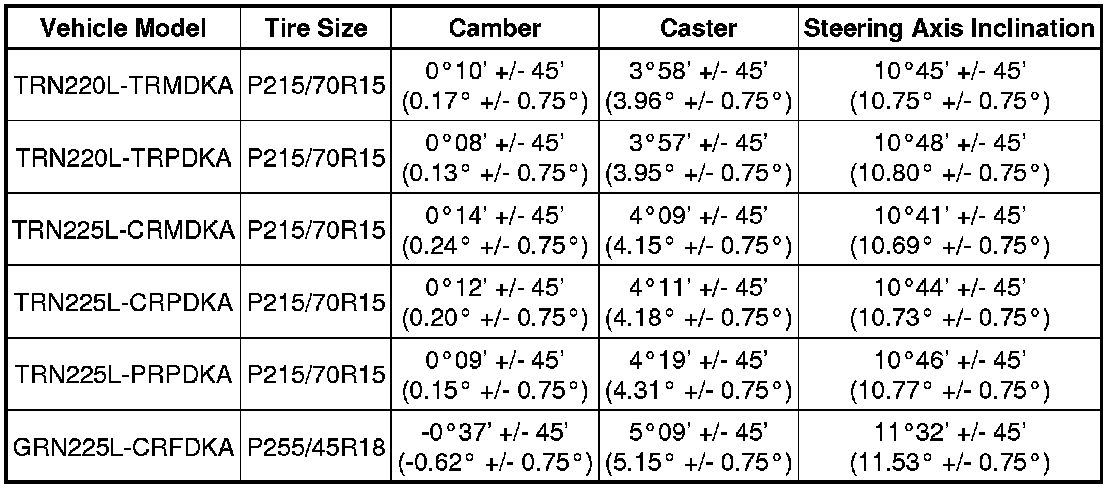

Camber, Caster and Steering Axis Inclination for 2WD:

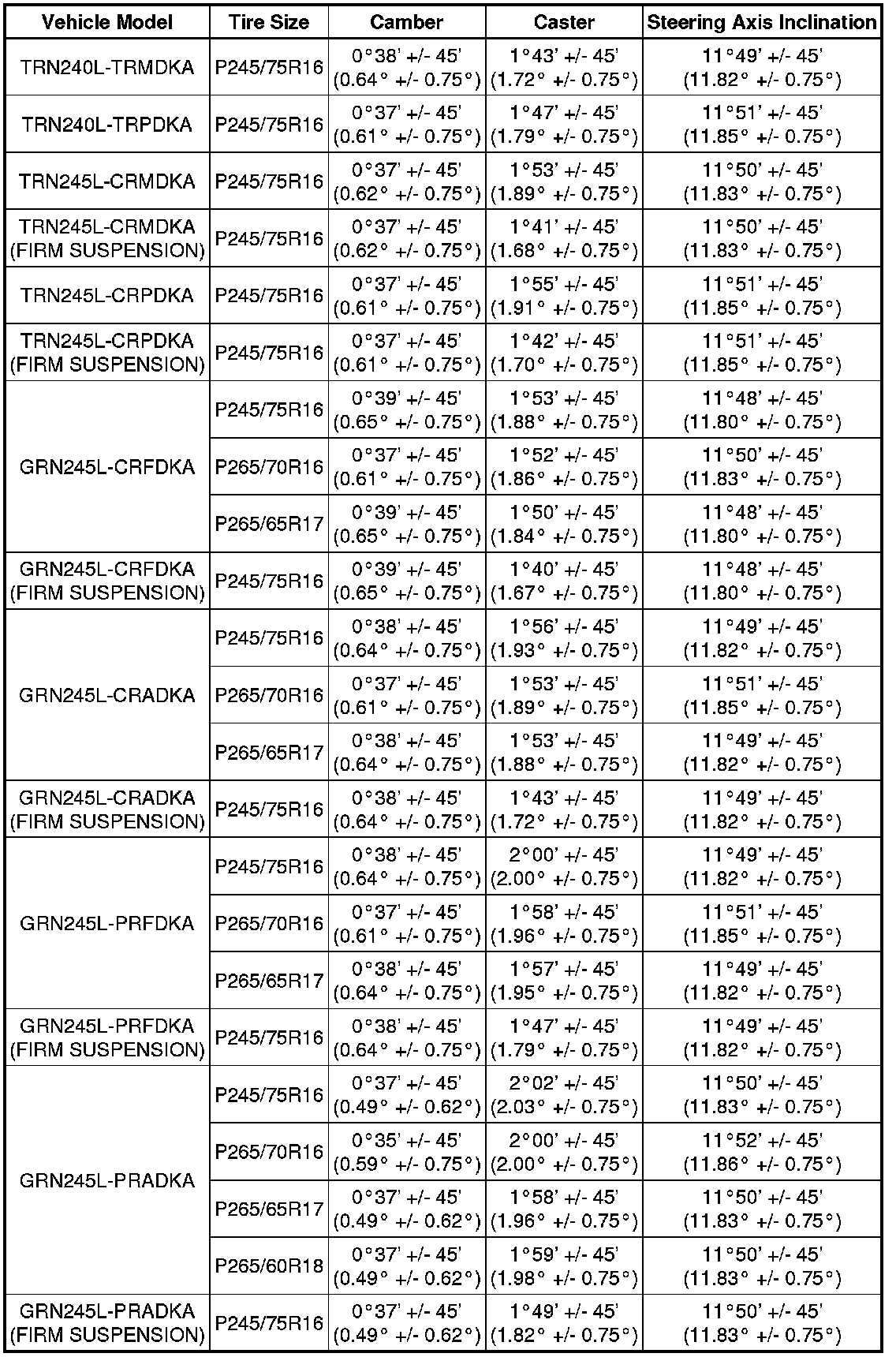

Camber, Caster and Steering Axis Inclination for 4WD (USA):

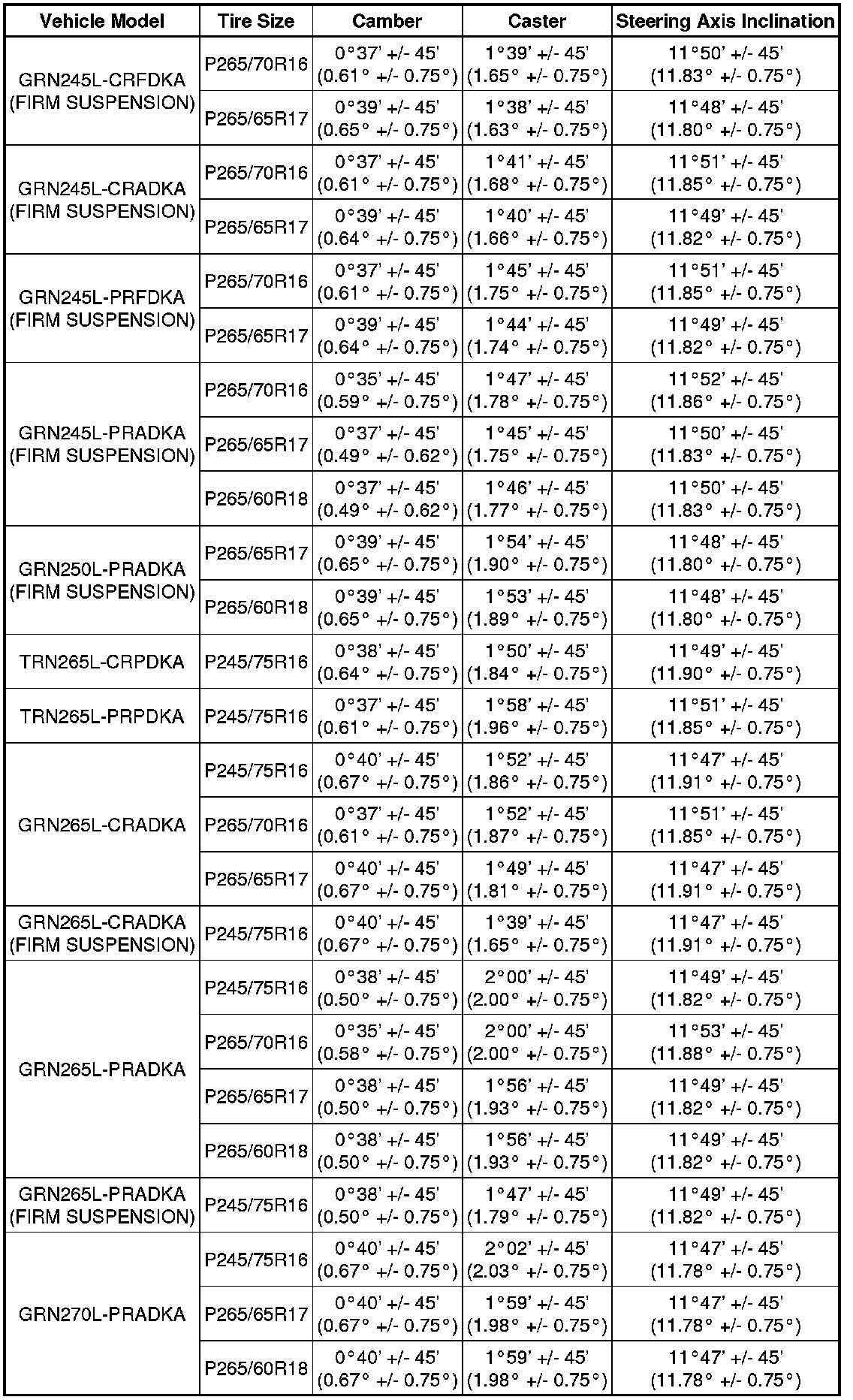

Camber, Caster and Steering Axis Inclination for 4WD (USA Possession):

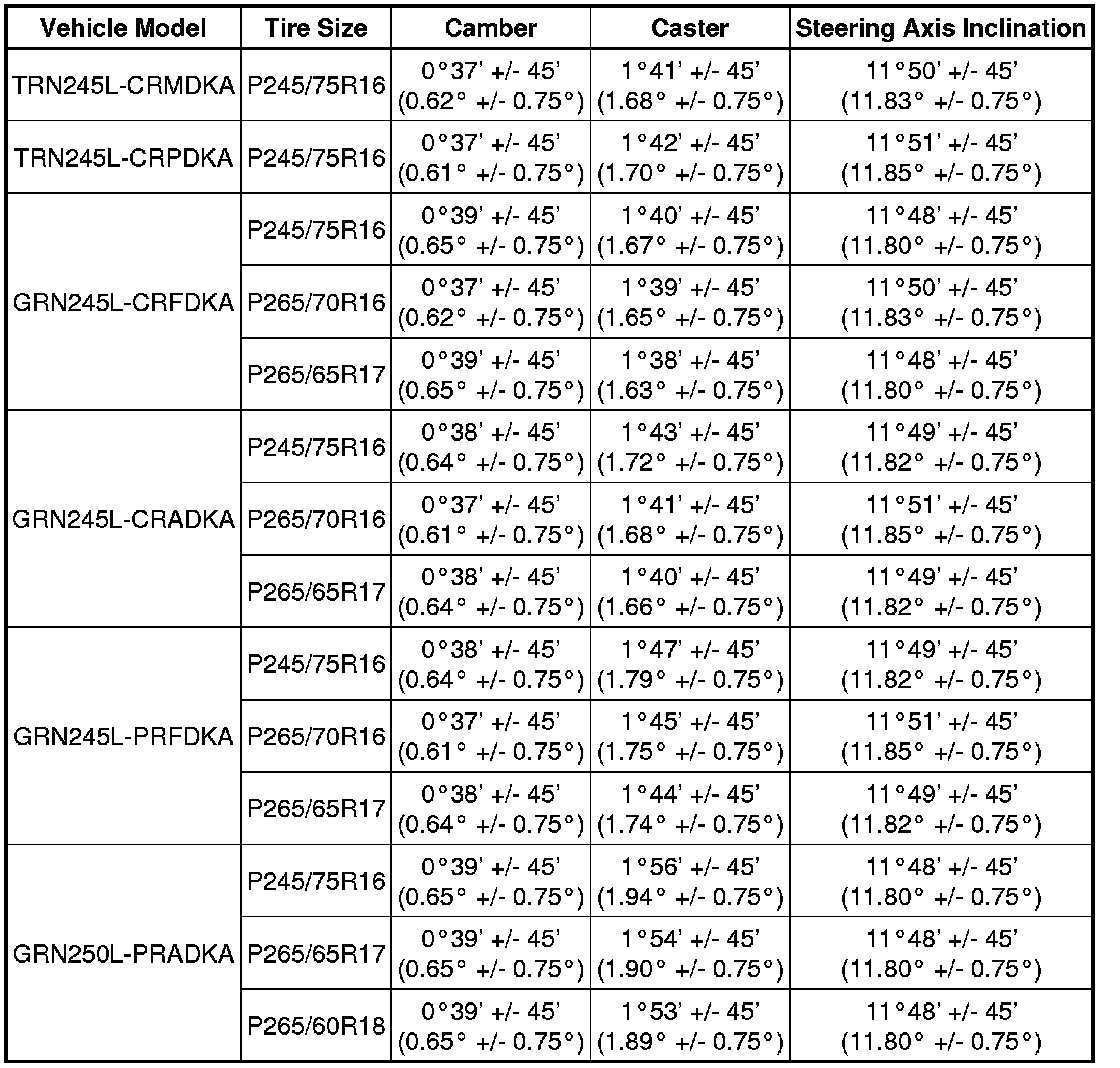

Camber, Caster and Steering Axis Inclination for 4WD (Mexico/4 Leaf Spring):






Camber, Caster and Steering Axis Inclination for 4WD (Canada/4 Leaf Spring):

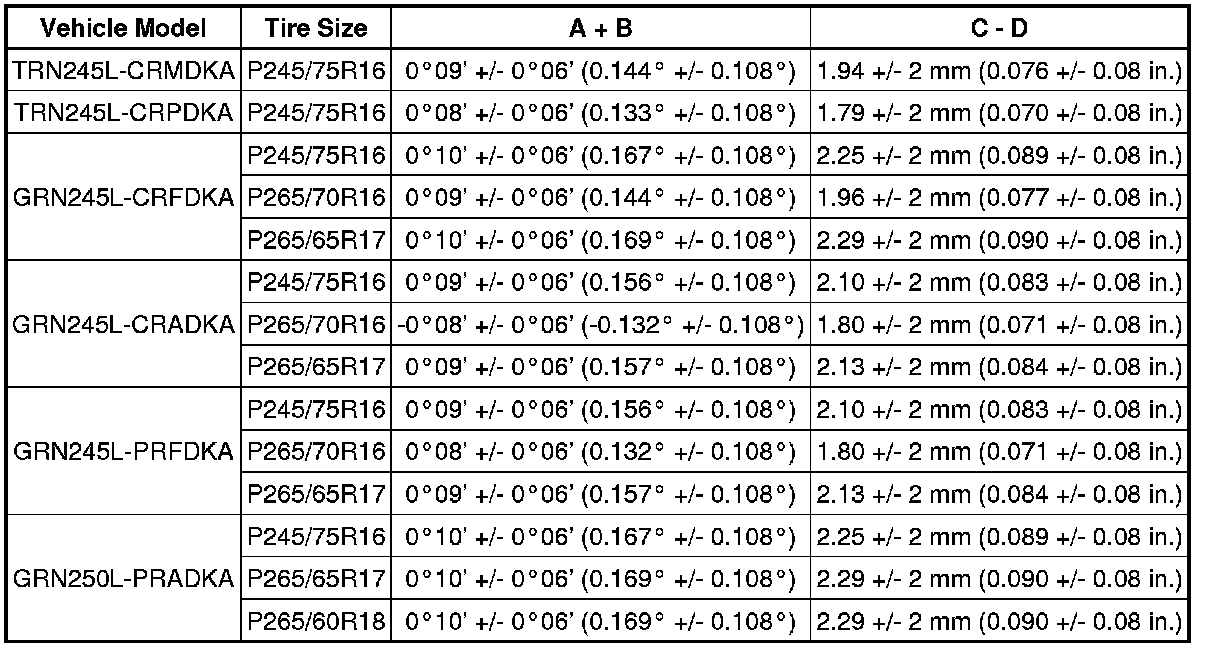

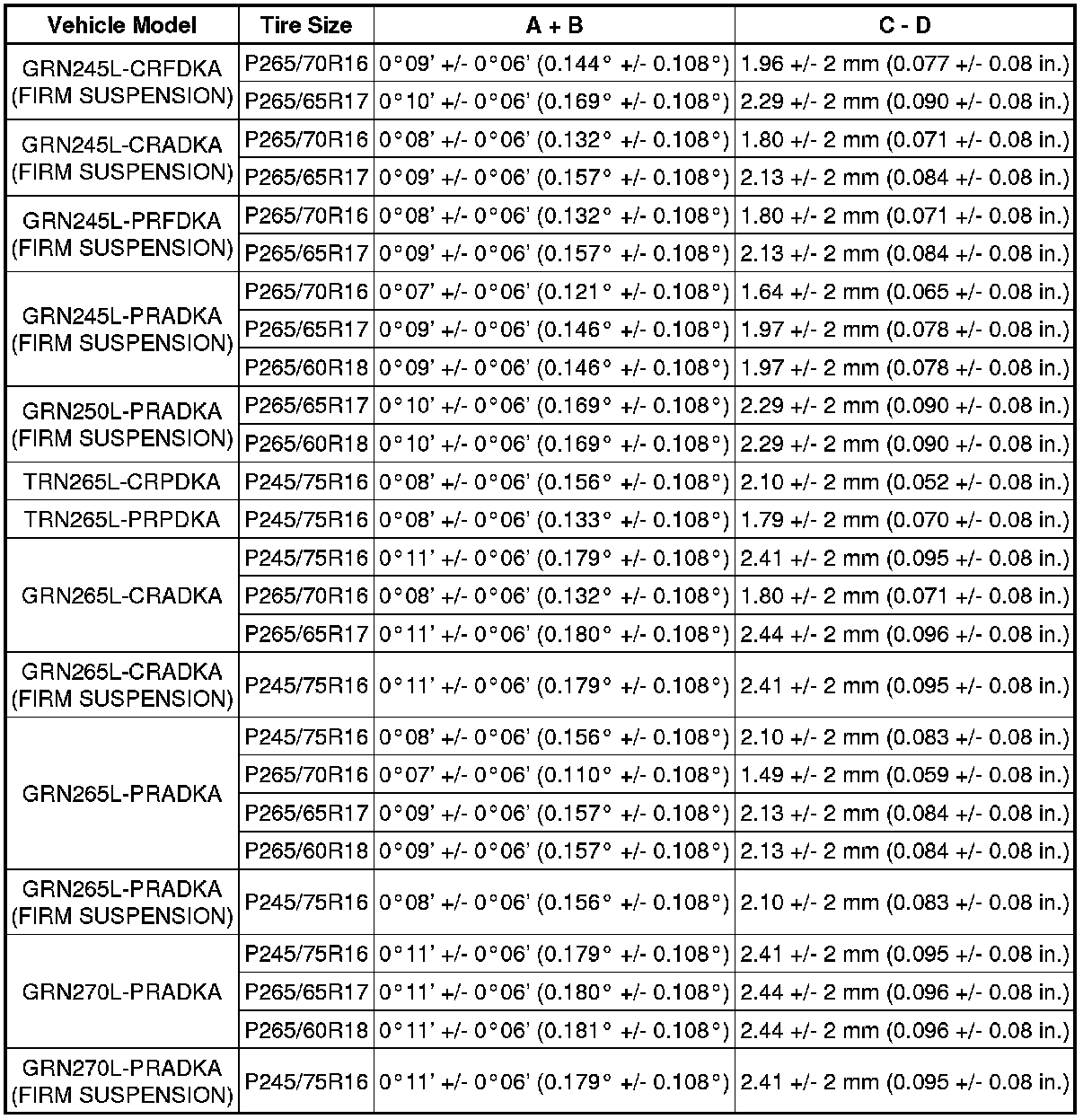

Toe-in for 2WD:

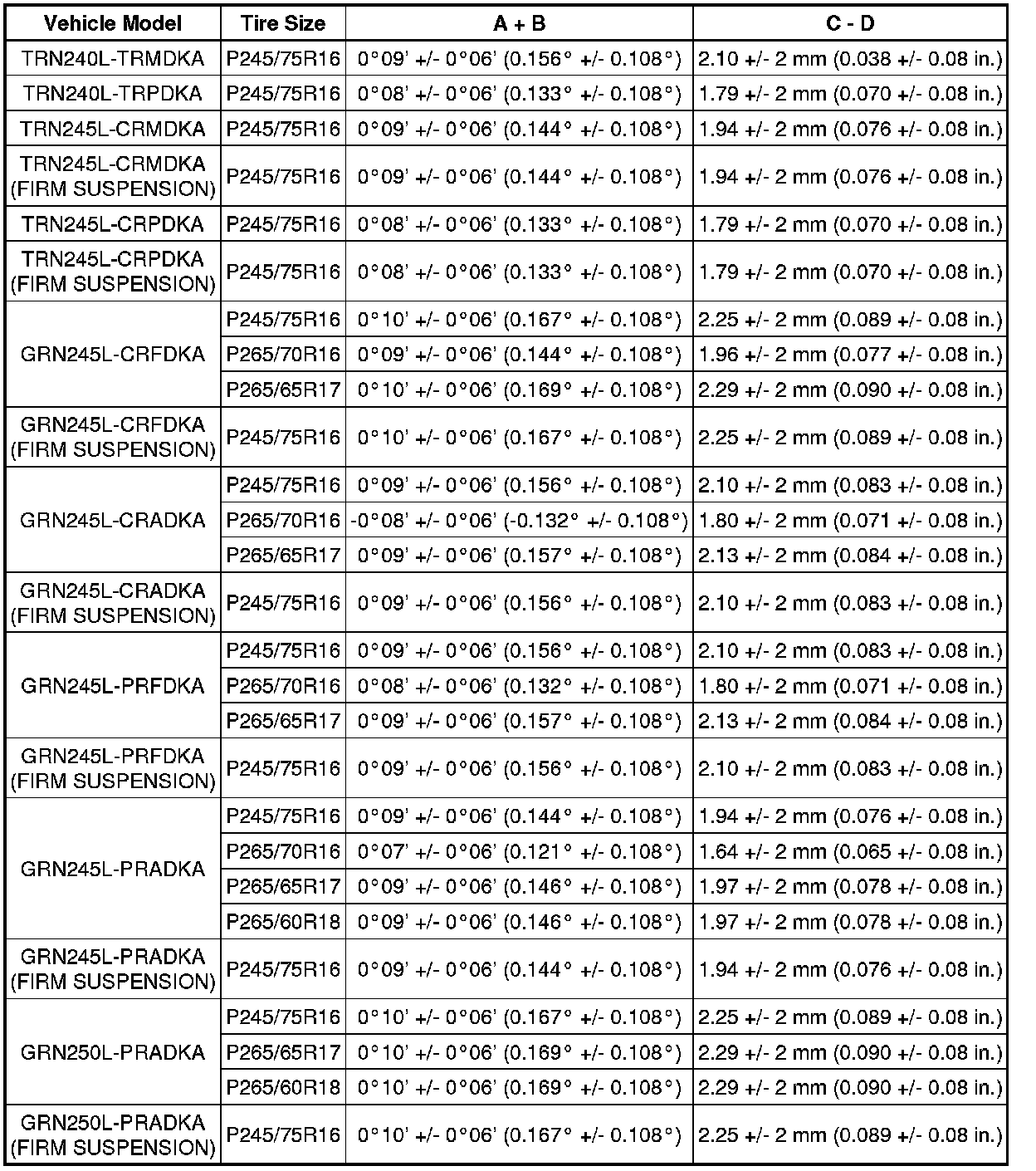

Toe-in for 4WD (USA):






Toe-in for 4WD (USA Possession):






Toe-in for 4WD (Mexico/4 Leaf Spring):






Toe-in for 4WD (Canada/4 Leaf Spring):






Wheel Turning Angle for 2WD:






Wheel Turning Angle for 4WD:
