Installation

DOOR LOCK: DOOR CONTROL RECEIVER: INSTALLATION

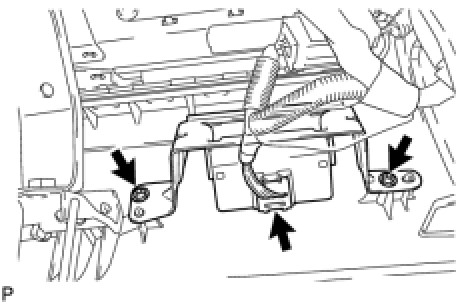

1. INSTALL DOOR CONTROL RECEIVER





(a) Install the door control receiver with the 2 screws.

(b) Connect the connector.

2. INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY RH Installation

3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
