Tacoma Base, 2D Pickup, RWD, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Engine Immobilizer System (1GR-FE)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Immobilizer System (1GR-FE): Notes

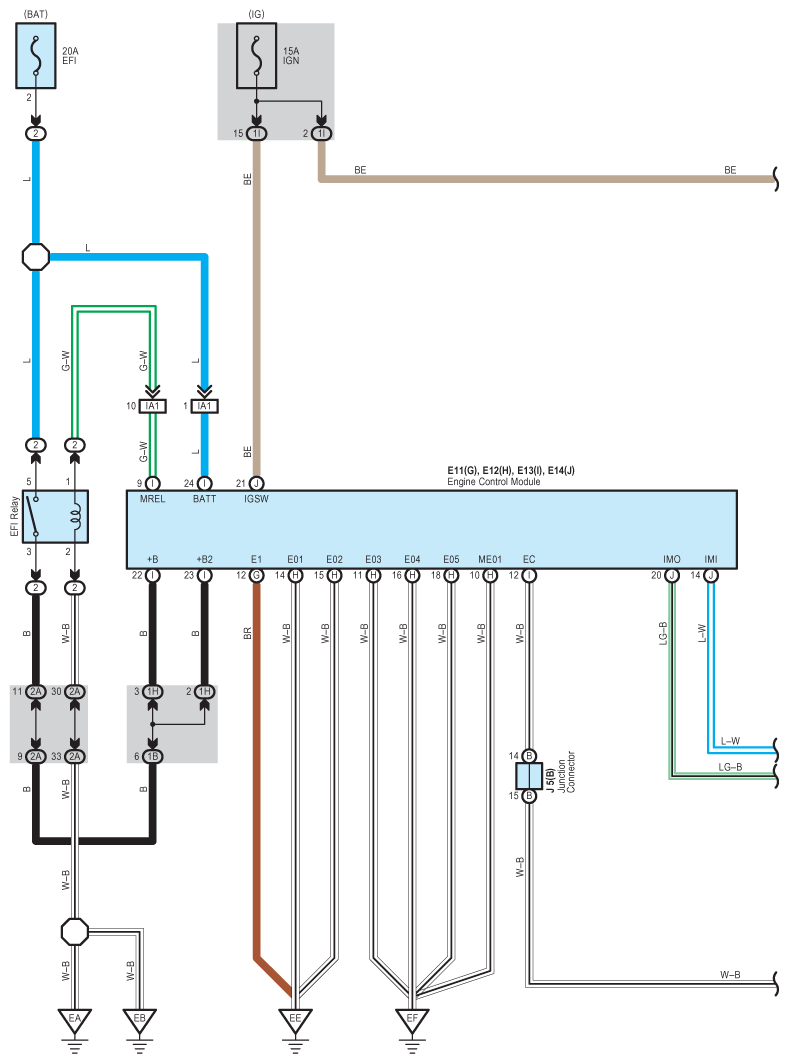

Fig 1: Engine Immobilizer System Wiring Diagram (1GR-FE; 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

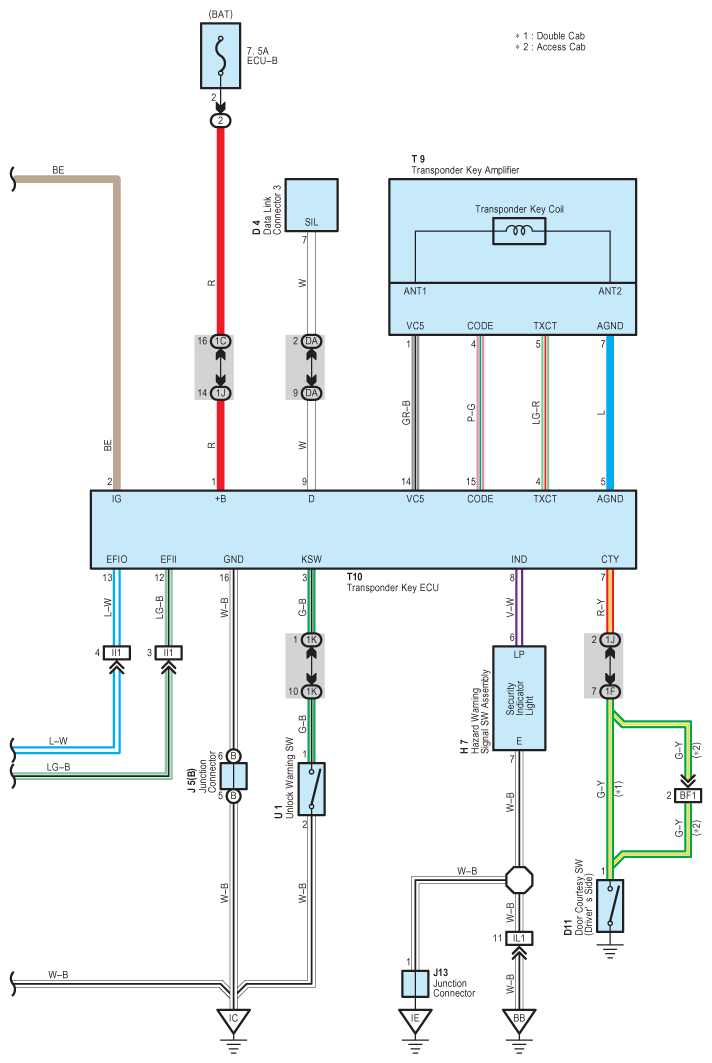

Fig 2: Engine Immobilizer System Wiring Diagram (1GR-FE; 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
