Side Airbag Sensor: Components: Illustration

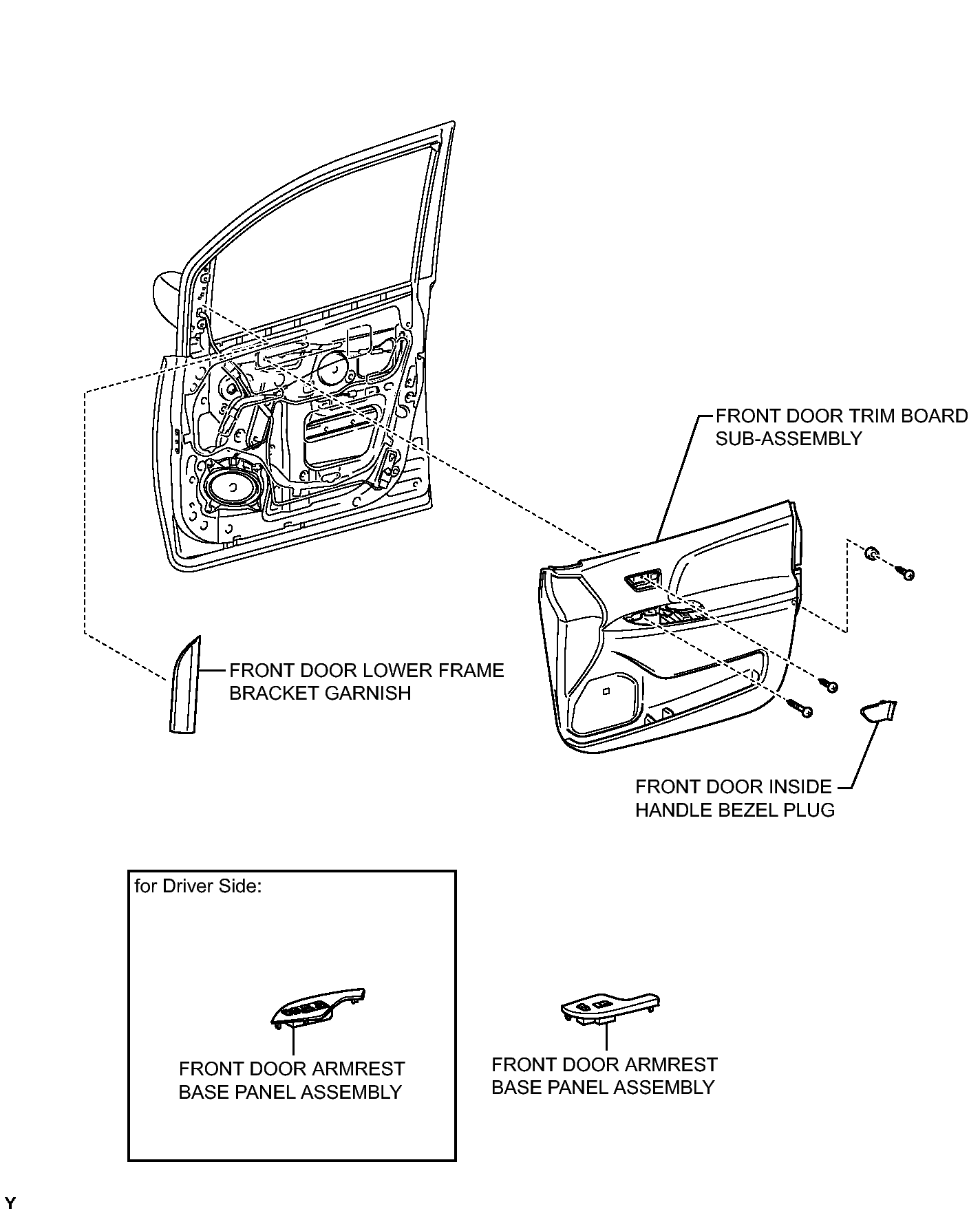

Fig 1: Side Airbag Sensor Replacement Components (1 Of 2)
GTY307281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

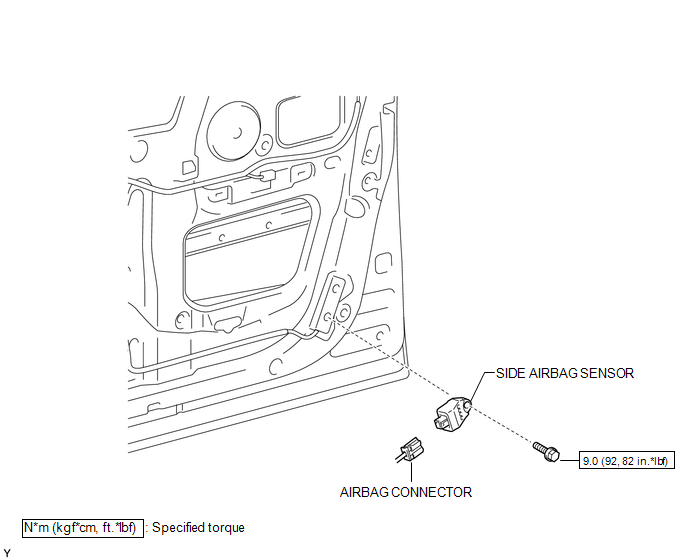

Fig 1: Side Airbag Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY304216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
