DTC B2274: ACC Monitor Malfunction: Wiring Diagram

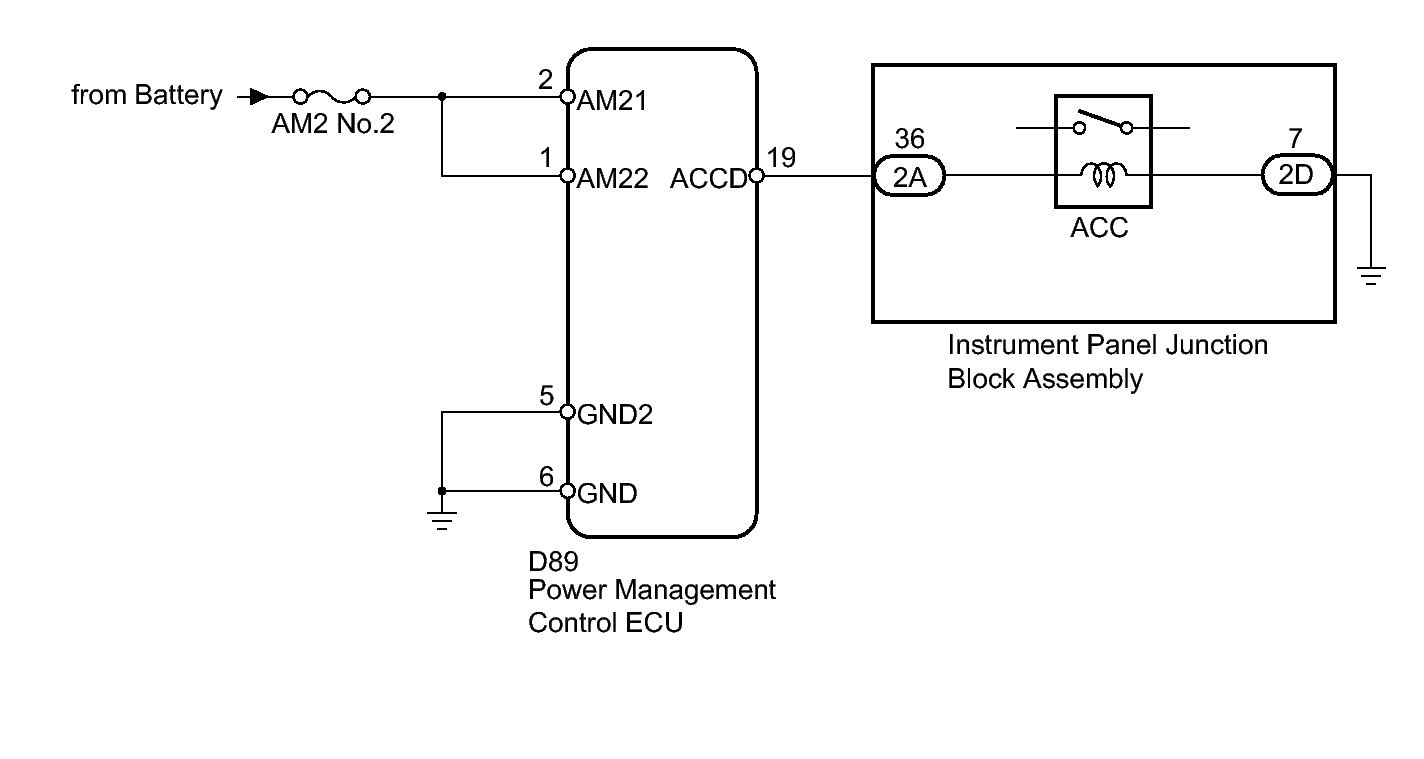

Fig 1: ACC Monitor Circuit - Wiring Diagram
GTY306536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
