Skid Control Buzzer: Removal: Removal

  1. REMOVE KNEE AIRBAG ASSEMBLY

    Refer to REMOVAL

  2. REMOVE SKID CONTROL BUZZER ASSEMBLY
    1. Remove the skid control buzzer clamp.

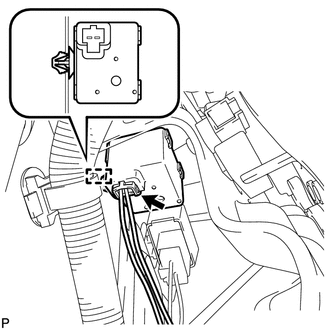

      Fig 1: Identifying Skid Control Buzzer Assembly Connector & Fastener
      GTY299081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the skid control buzzer connector.
