Starting (w/o Smart Key System): Notes

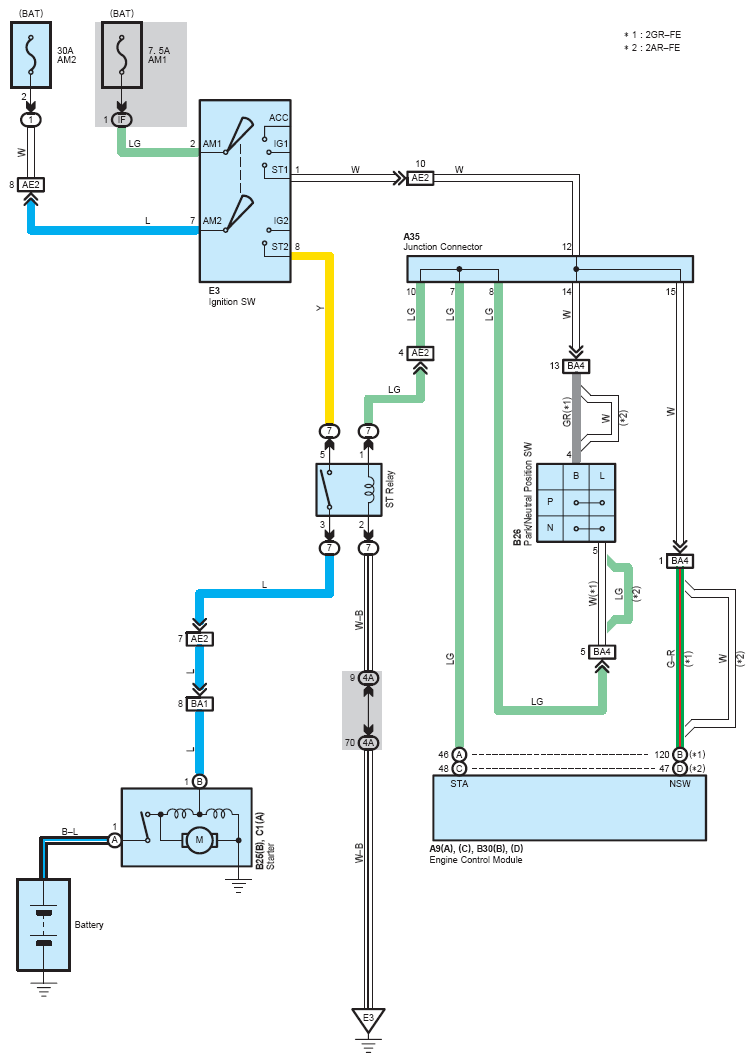

Fig 1: Starting (W/O Smart Key) System Wiring Diagram
G08845180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
