Clock (w/Manual Air Conditioning): Notes

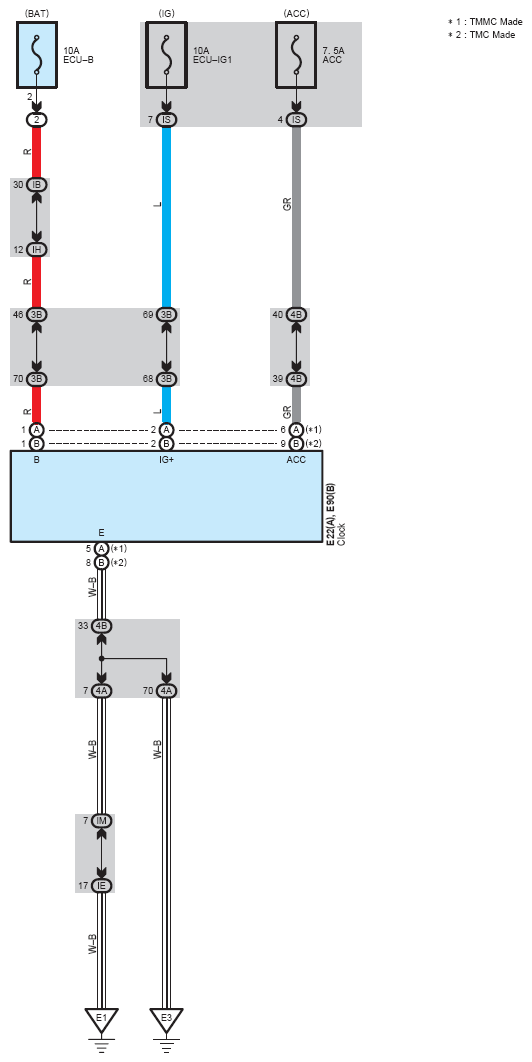

Fig 1: Clock System Wiring Diagram (W/ Manual Air Conditioning)
G08845325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
