Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

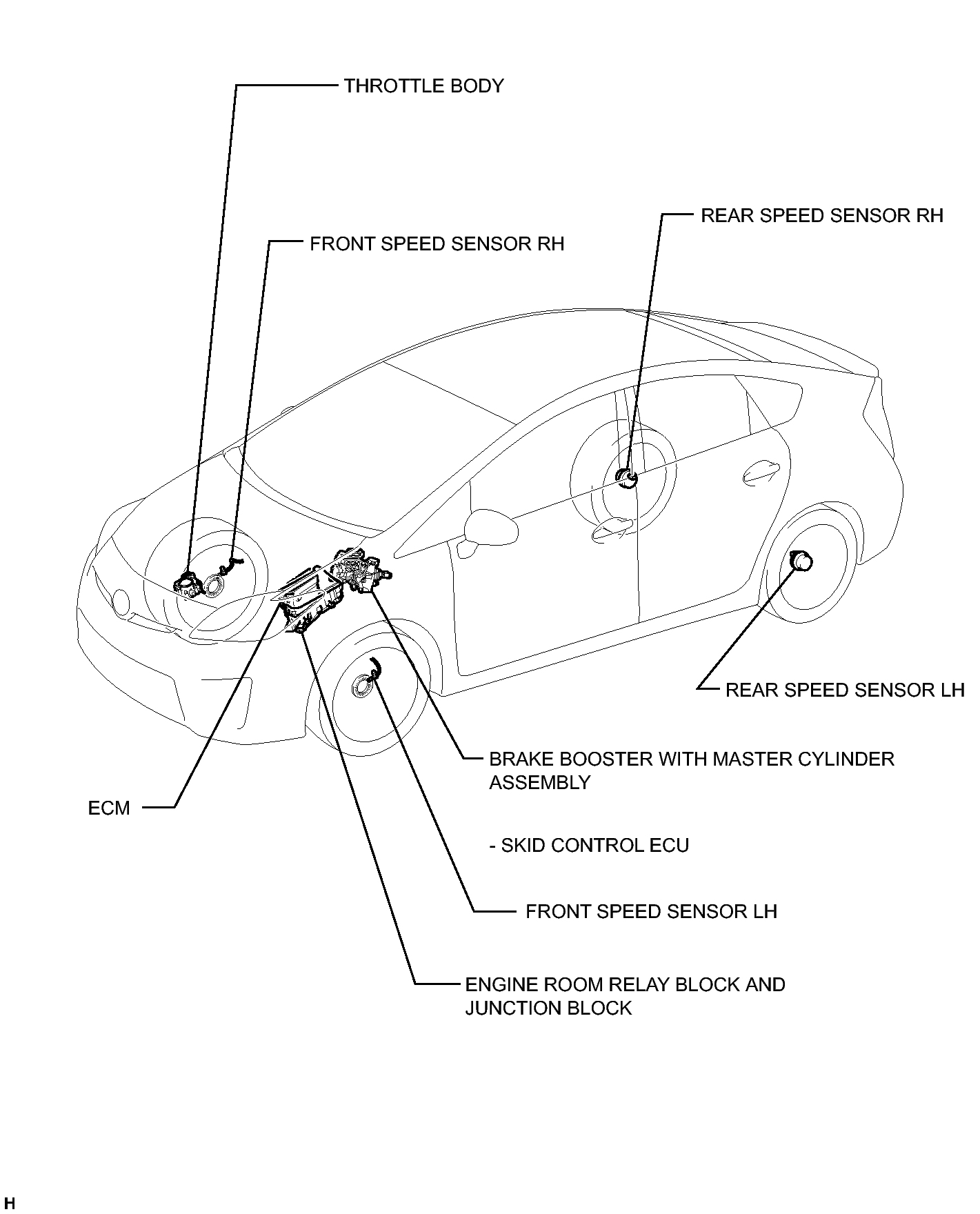

Fig 1: Identifying Cruise Control System Component Location (1 Of 2)
GTY326124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

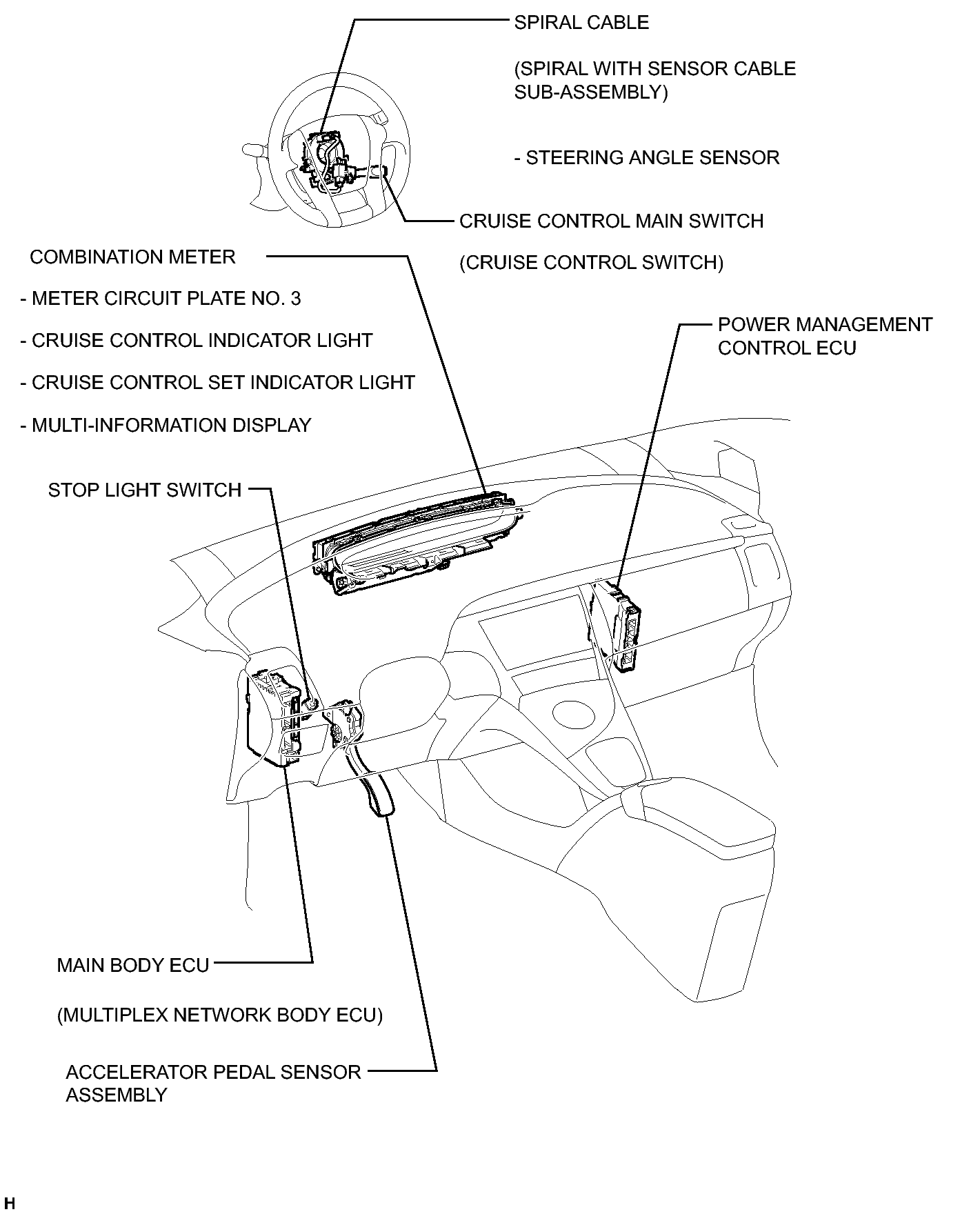

Fig 1: Identifying Cruise Control System Component Location (2 Of 2)
GTY337704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
