Integration Relay: Installation: Installation

  1. INSTALL NO. 2 INTEGRATION RELAY
    1. Connect the 3 connectors.
      Fig 1: Identifying No. 2 Integration Relay & Connectors
      GTY224412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the No. 2 integration relay to the engine room relay block.

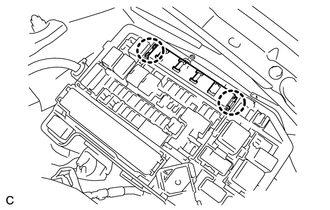

      Fig 2: Identifying Engine Room Relay Block & Integration Relay
      GTY220814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 RELAY BLOCK COVER
