Toyota
>>
2012
>>
Prius Three
>>
Repair and Diagnosis
>>
Hybrid/Electric Powertrain
>>
Battery Management Systems
>>
Hybrid Battery Control System (Except Plug-In) (Service Information)
>>
HV Relay Assembly
>>
Components
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
HV Relay Assembly: Components: Illustration

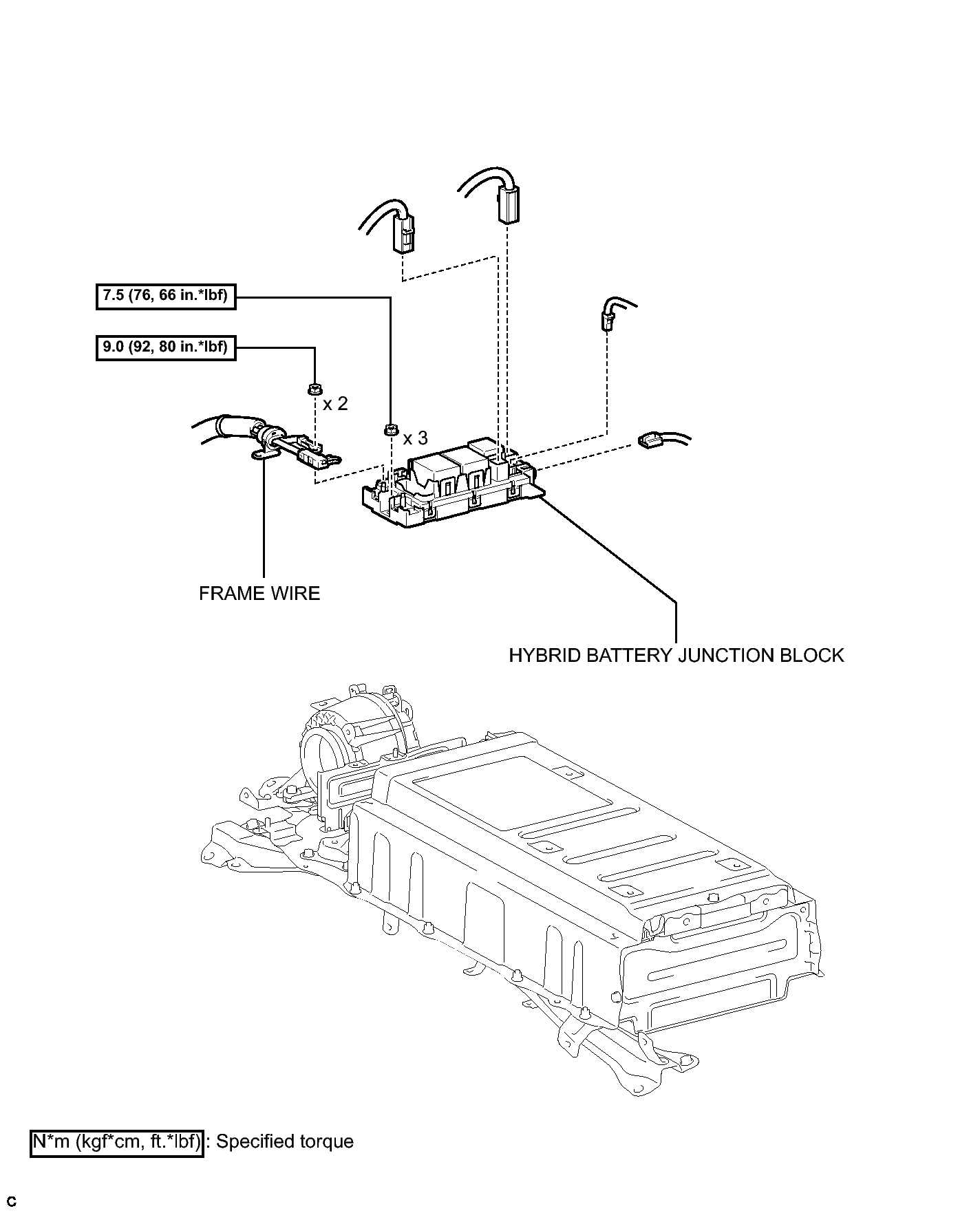

Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

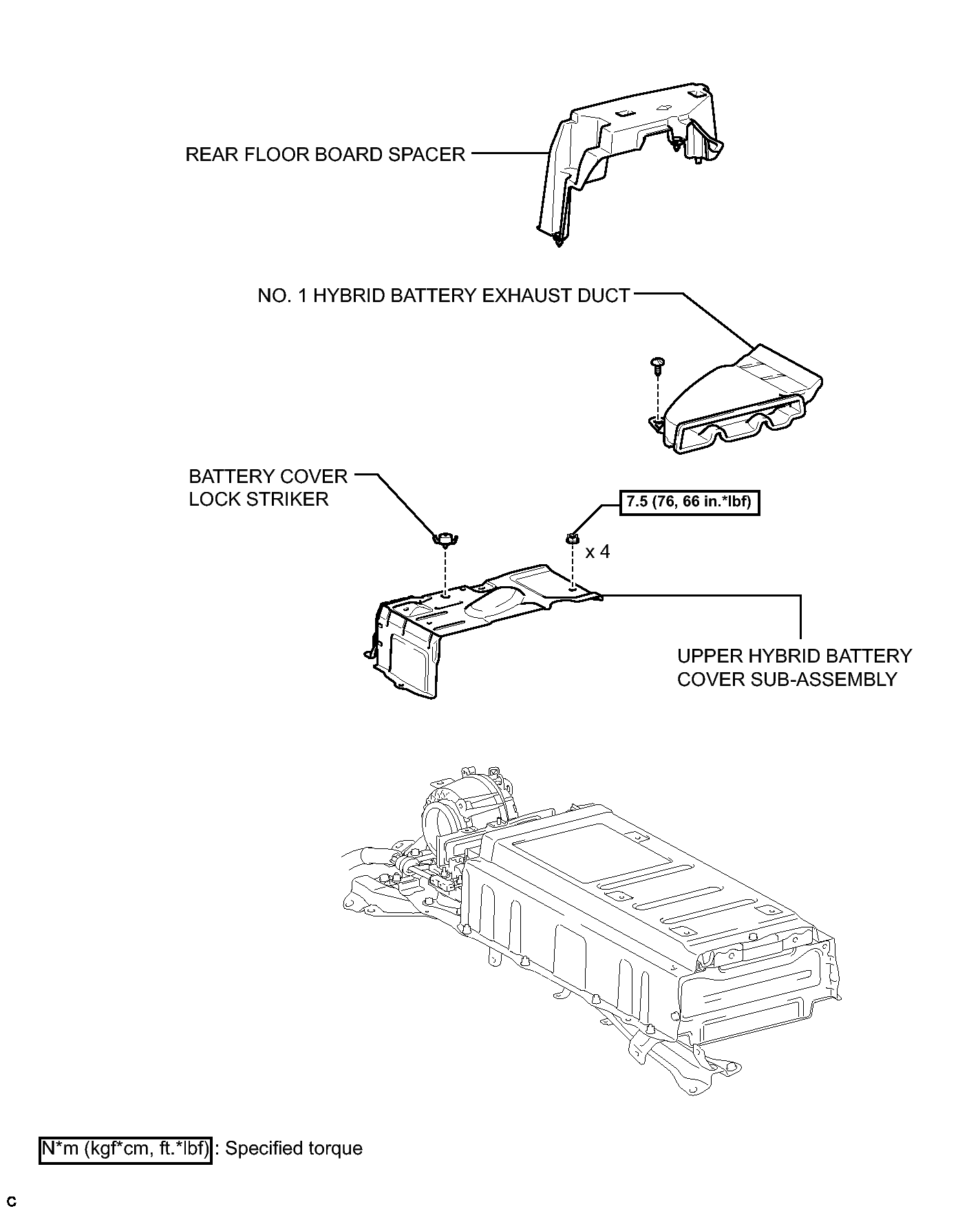

Fig 2: Identifying HV Relay Assembly Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
