Intake Manifold: Components: Illustration

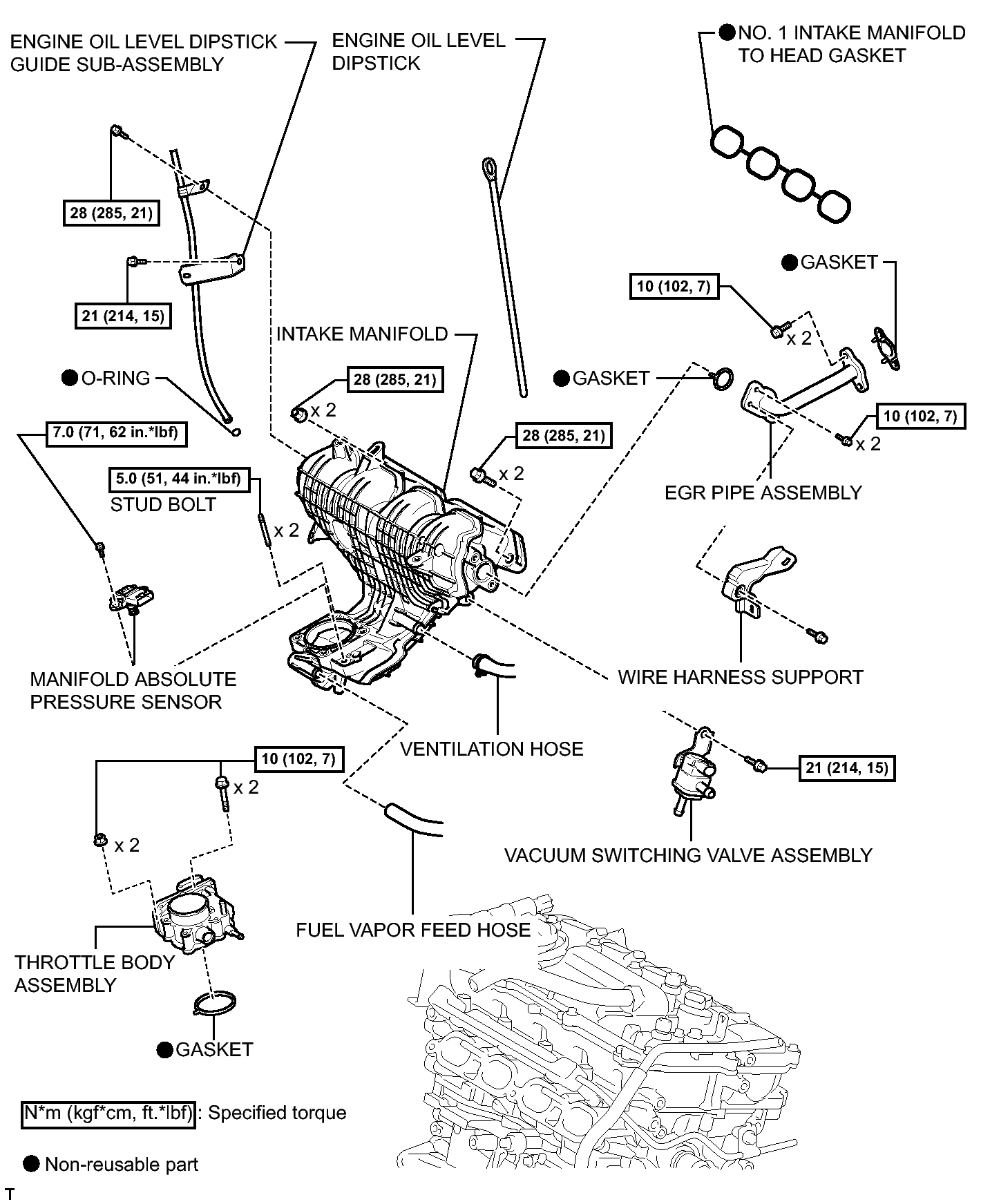

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications
GTY217879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
