Rear Speed Sensor: Components: Illustration

Fig 1: Identifying Rear Speed Sensor Replacement Components (1 Of 2)
GTY336430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

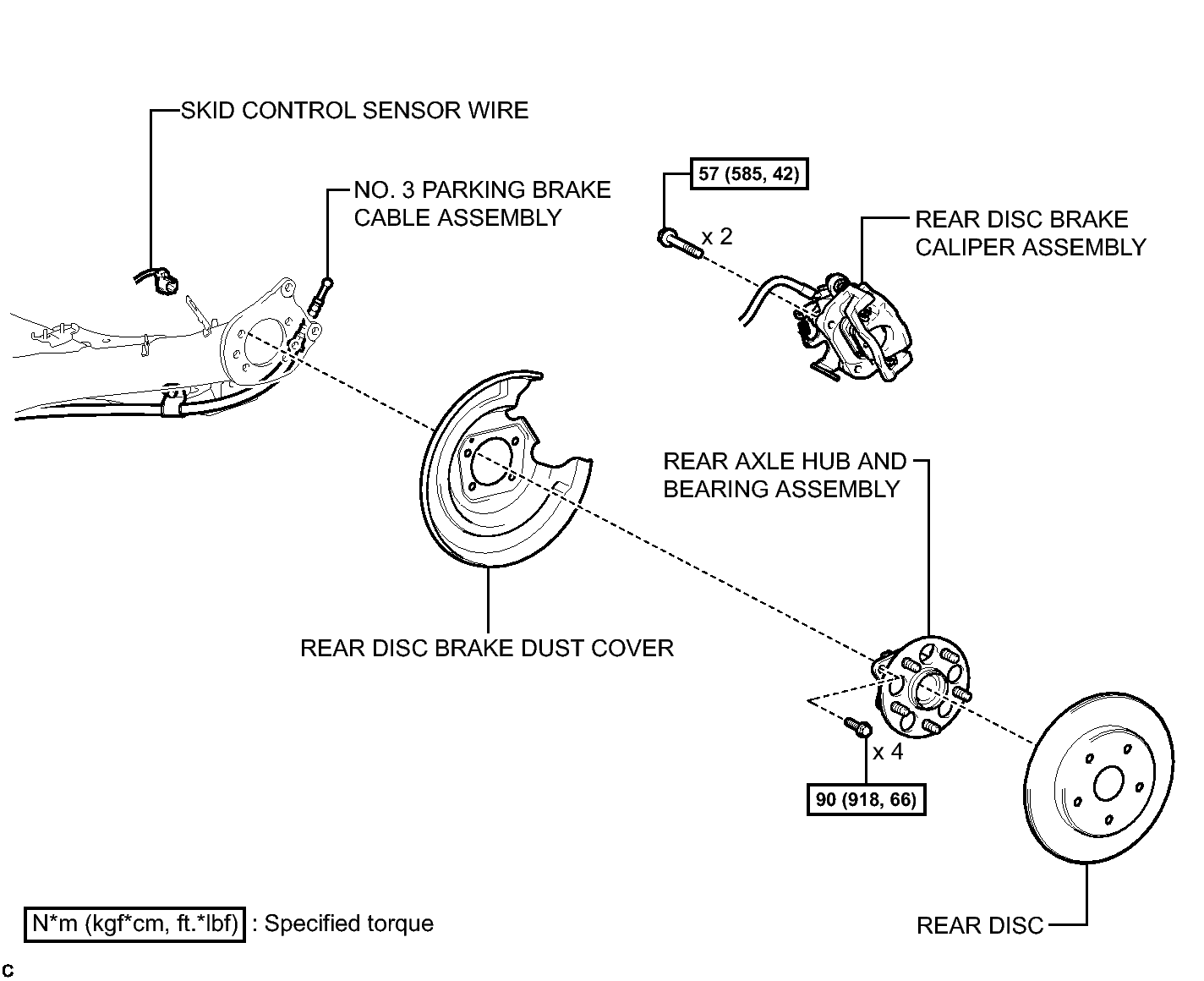

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY334154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
