Front Speed Sensor: Components: Illustration

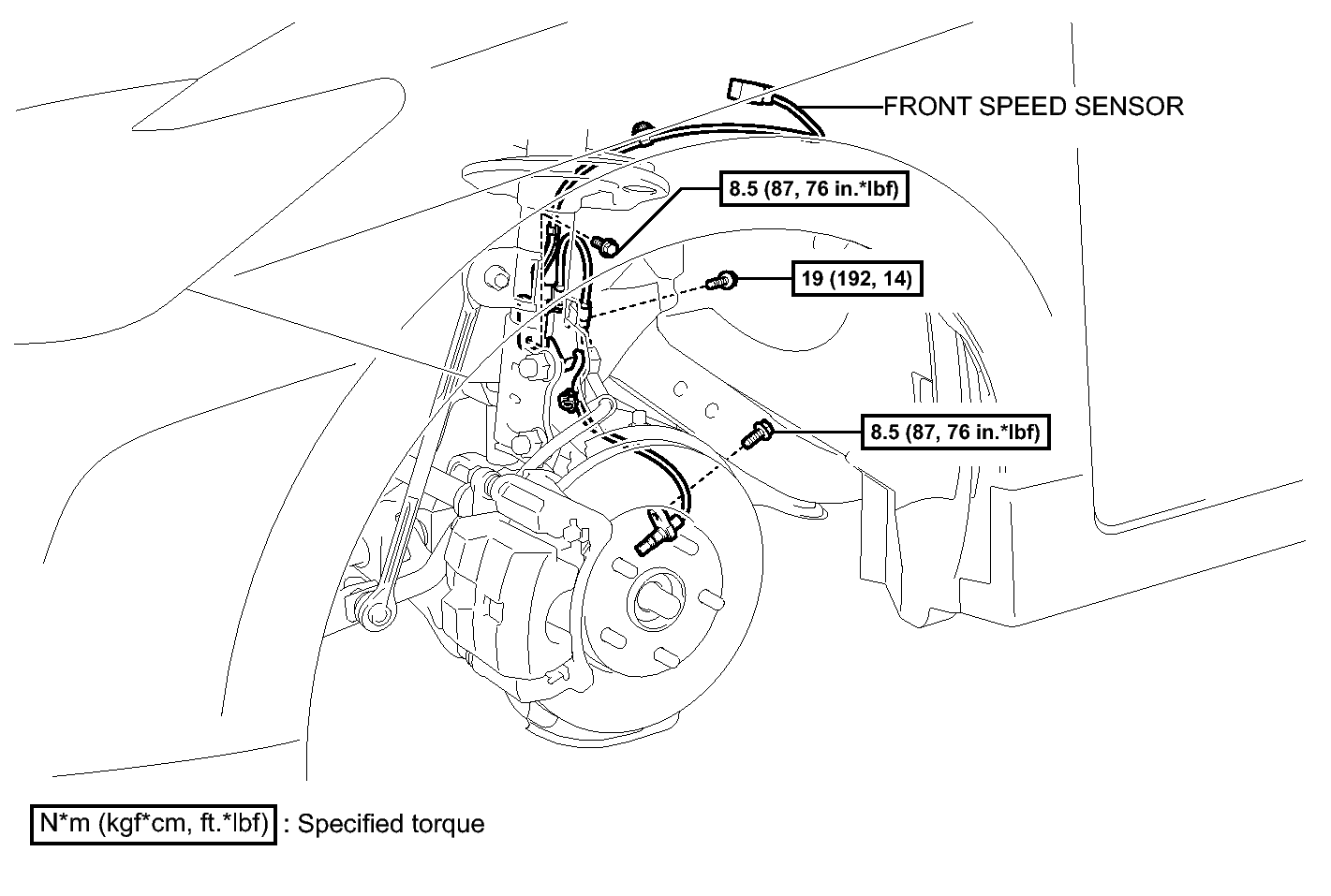

Fig 1: Identifying Front Speed Sensor Replacement Components
GTY330618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
