System Diagram

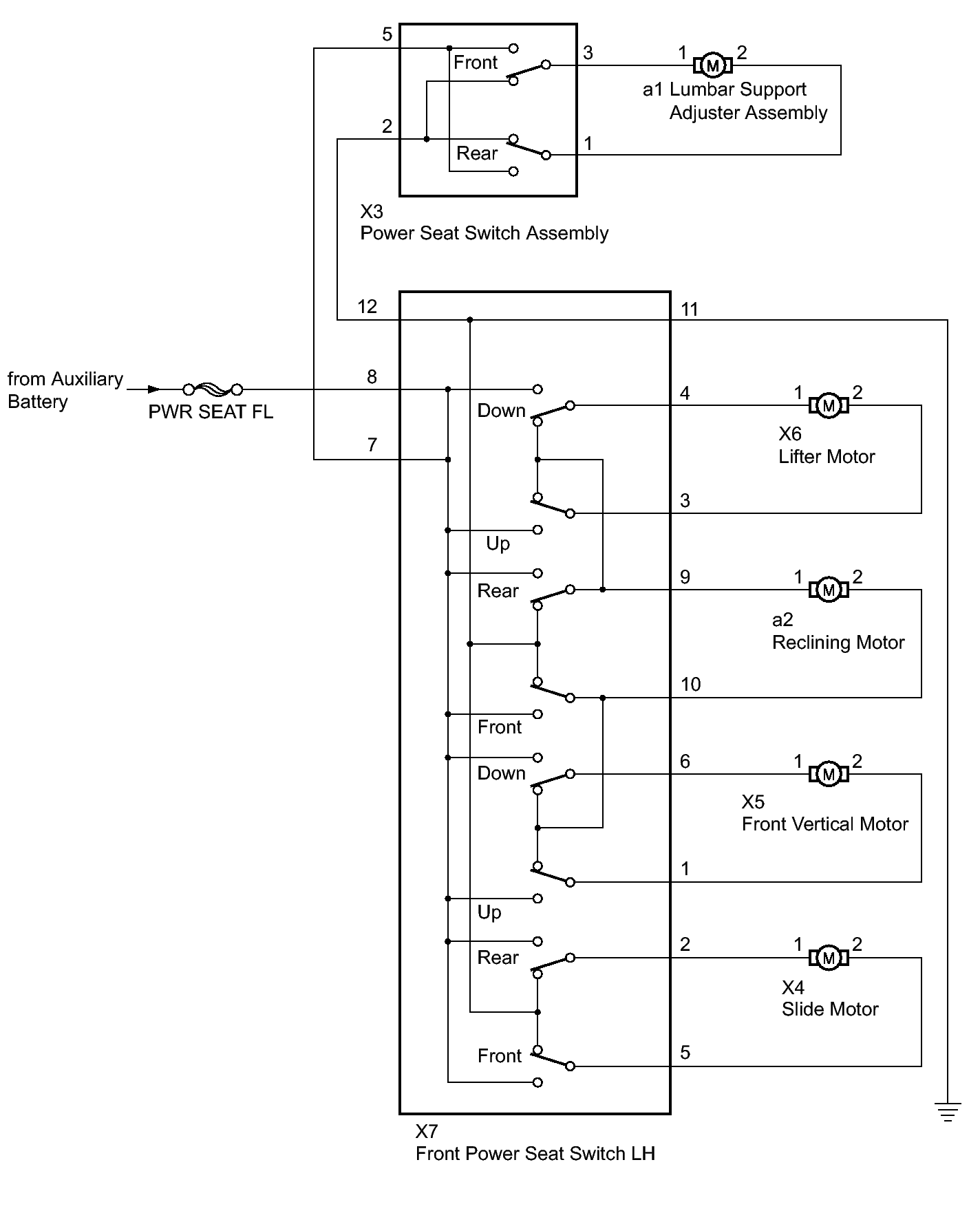

Fig 1: Front Power Seat Control System Diagram

GTY330981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
