Removal

2ZR-FE ENGINE CONTROL: HEATED OXYGEN SENSOR: REMOVAL

1. REMOVE HEATED OXYGEN SENSOR

(a) Disconnect the heated oxygen sensor connector.

(b) Remove the grommet and pull the sensor connector out of the cabin through the floor panel.

(c) Remove the wire harness clamp bracket and disconnect the wire harness clamp.

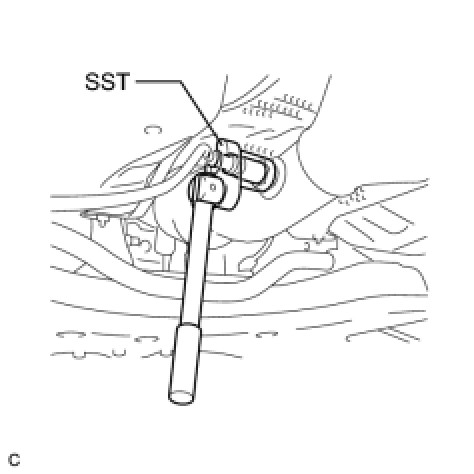

(d) Using SST, remove the heated oxygen sensor.

SST : 09224-00010
