Removal





2ZR-FE ENGINE CONTROL: MASS AIR FLOW METER: REMOVAL

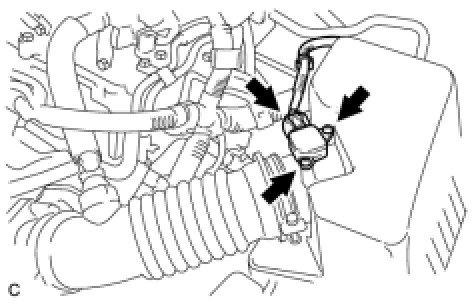

1. REMOVE MASS AIR FLOW METER

(a) Disconnect the mass air flow meter connector.





(b) Remove the 2 screws and the mass air flow meter.
