REAR SPEED SENSOR (for 2WD)
>>
Components
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
REAR SPEED SENSOR (for 2WD): Components: Illustration

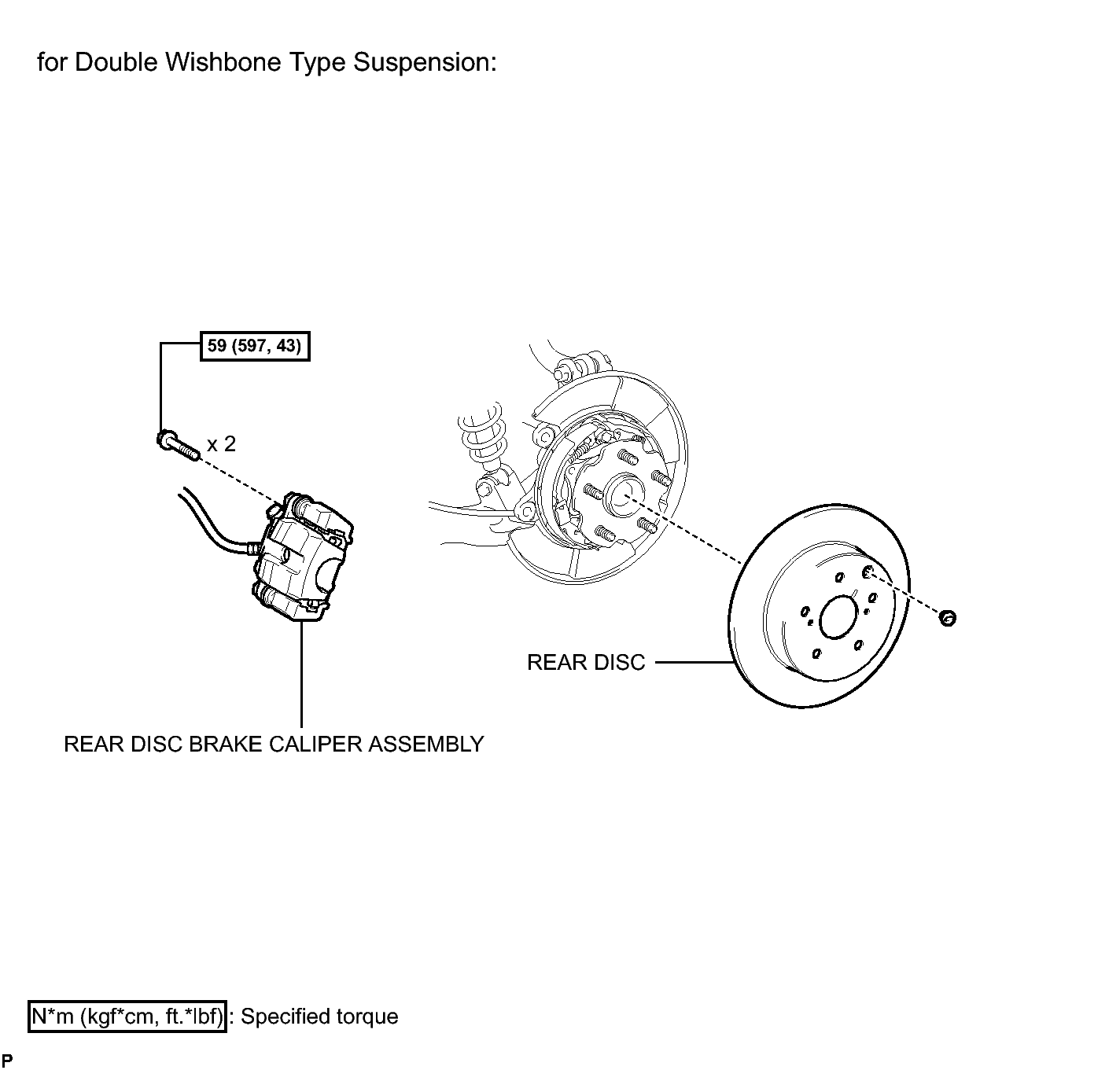

Fig 1: Identifying Rear Speed Sensor Replacement Components (2WD) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

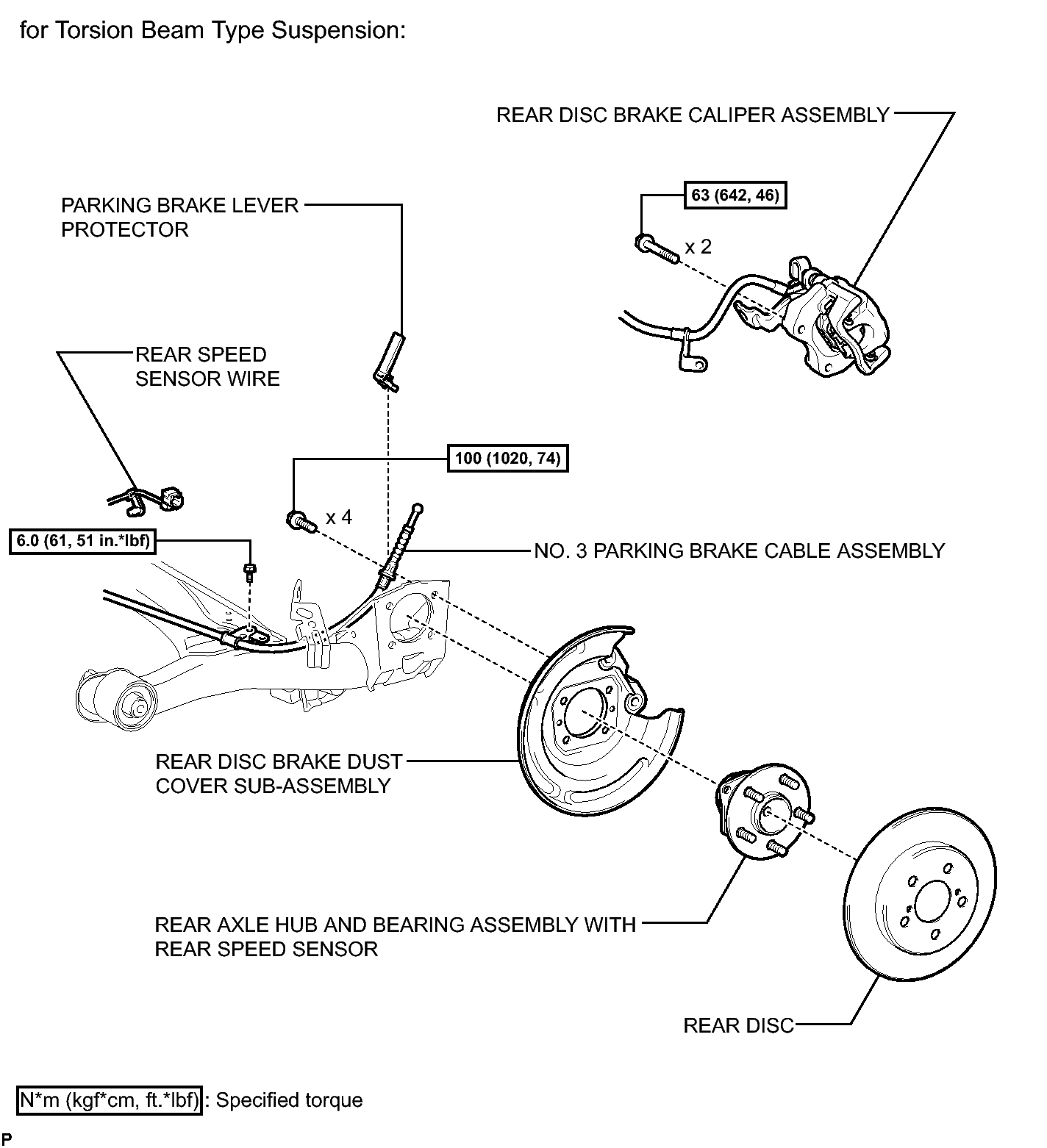

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications (2WD) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

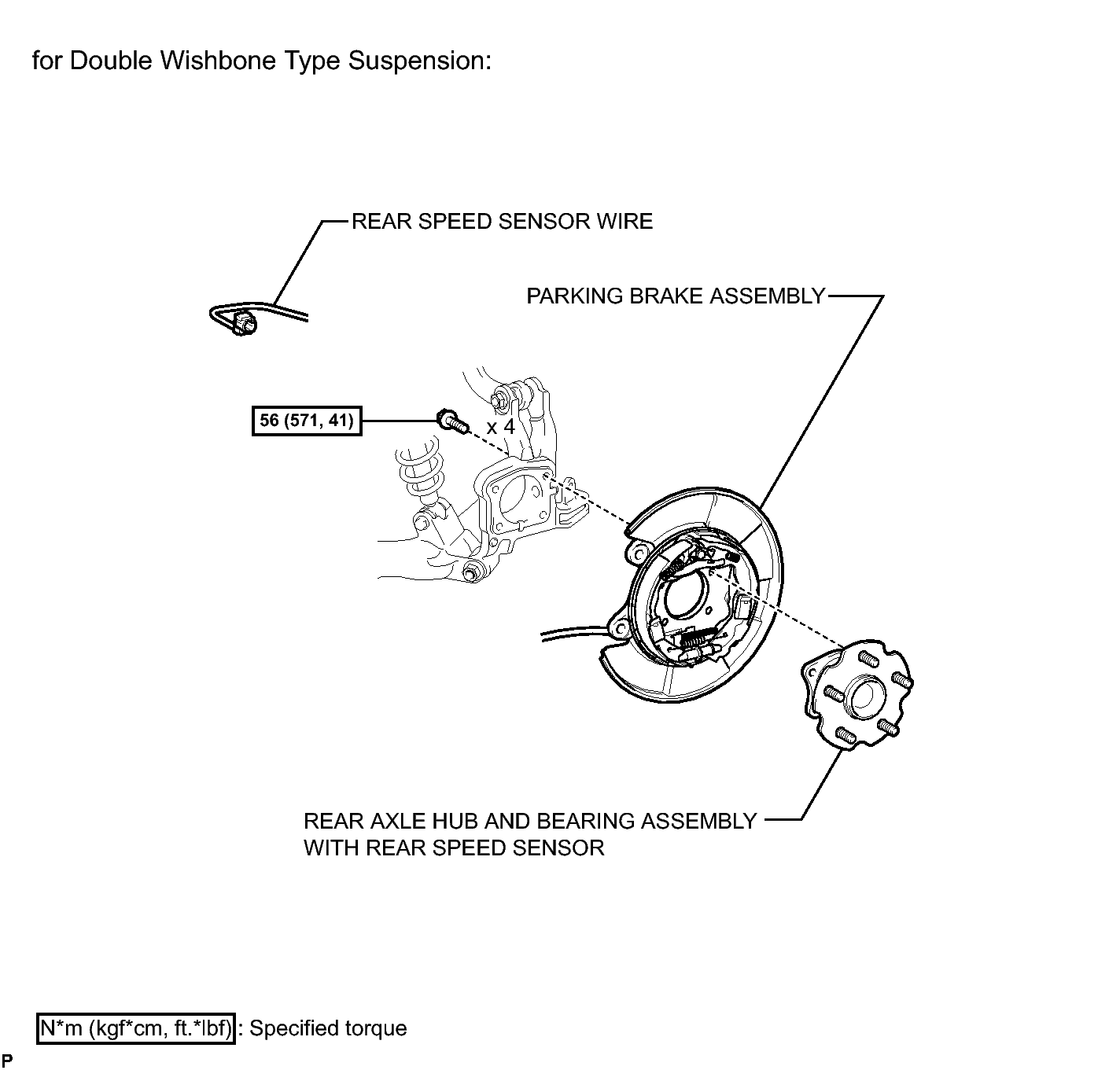

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications (2WD) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications (2WD) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
