Theft Deterrent / Keyless Entry System (Service Information)
>>
Transponder Key Amplifier
>>
Components
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Transponder Key Amplifier: Components: Illustration

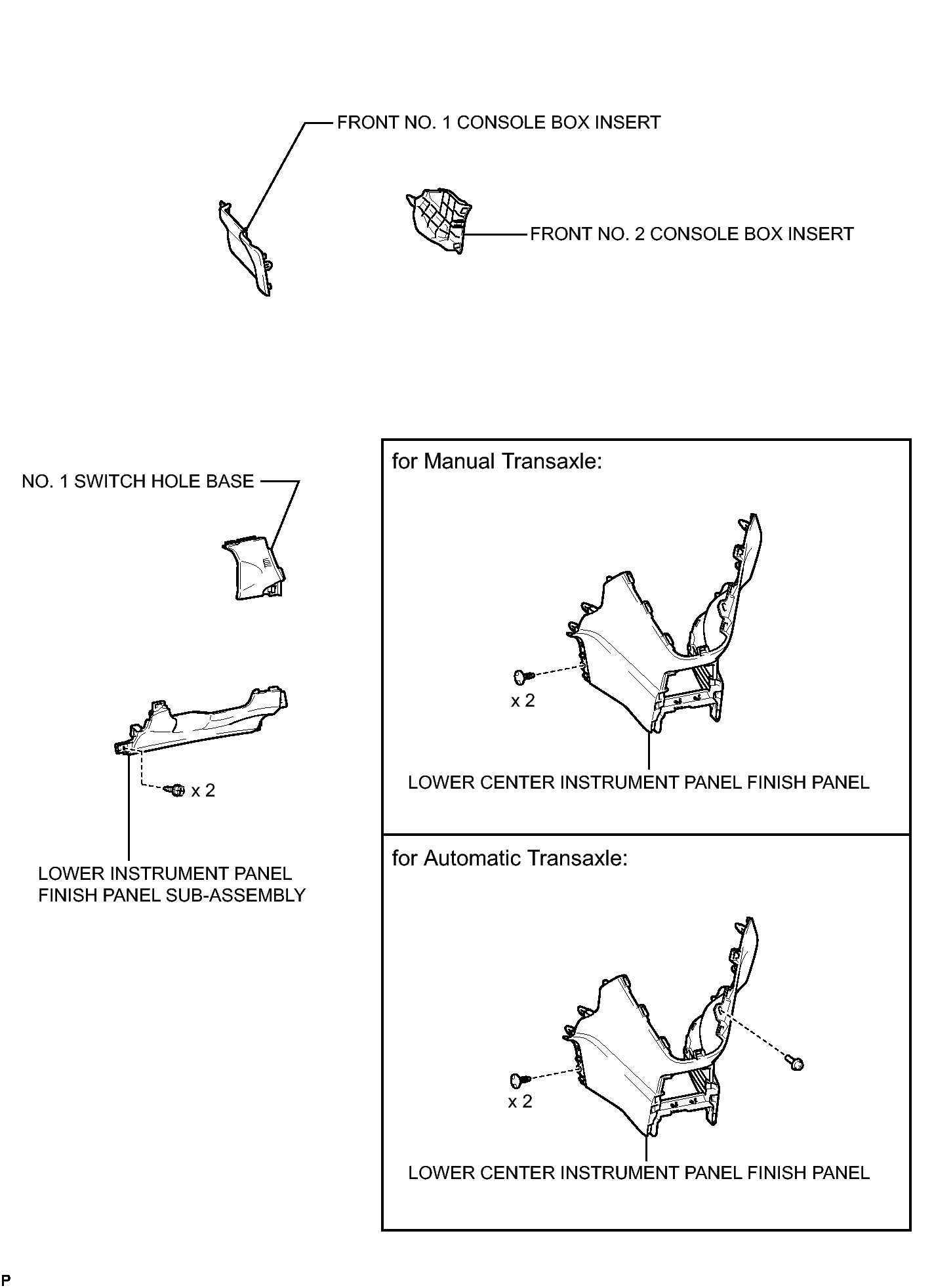

Fig 1: Identifying Transponder Key Amplifier Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

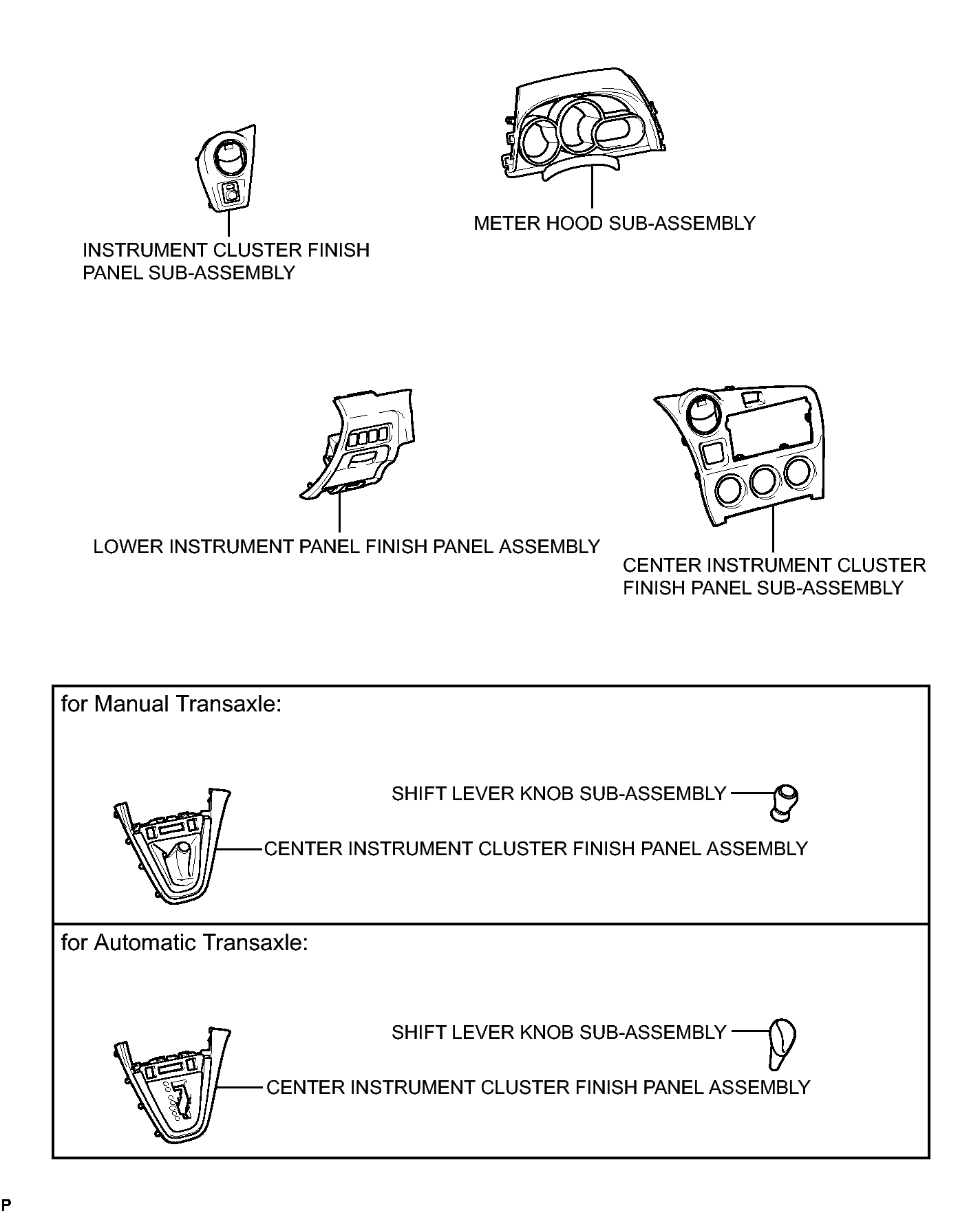

Fig 1: Identifying Transponder Key Amplifier Replacement Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

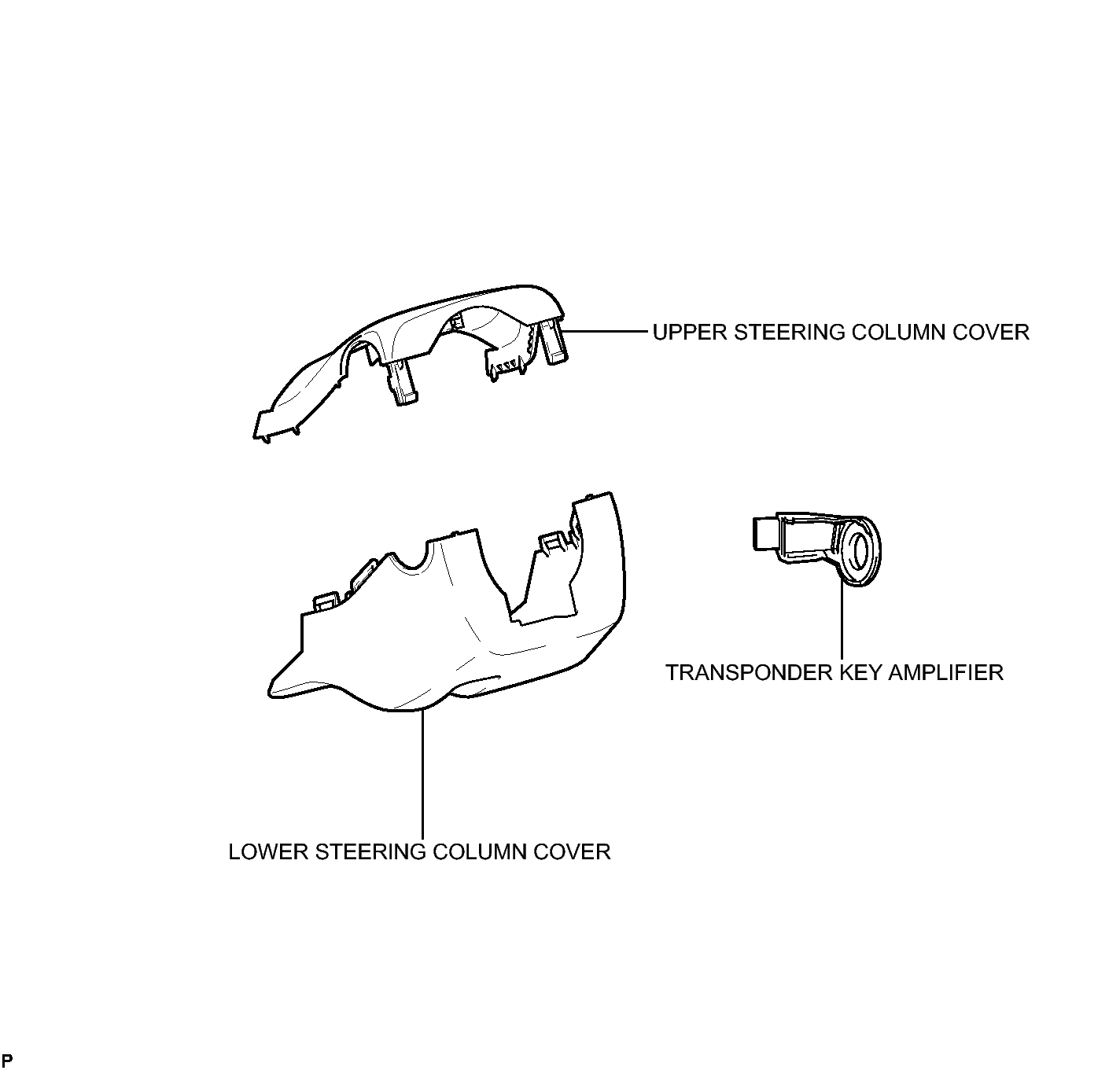

Fig 1: Identifying Transponder Key Amplifier Replacement Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
