Installation





WINDOW / GLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSTALLATION

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

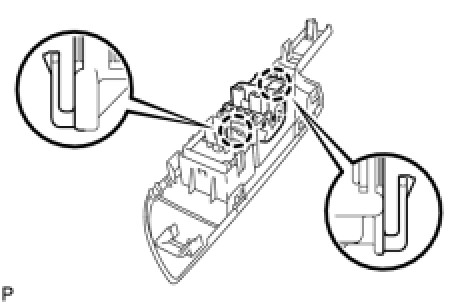

(a) Engage the 2 claws to install the power window regulator switch assembly.





2. INSTALL FRONT ARMREST UPPER BASE PANEL RH

(a) Connect the connector.

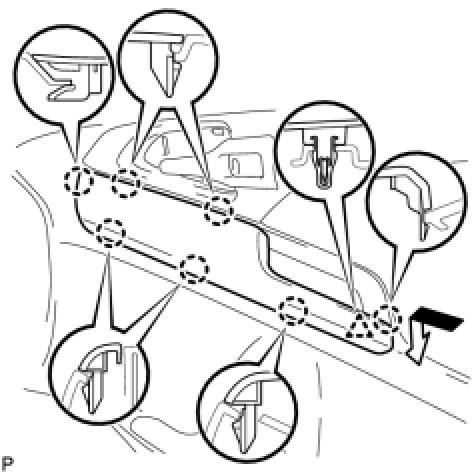

(b) Engage the 7 claws and clip to install the front armrest upper base panel RH.
