Water Pump

WATER PUMP ASSEMBLY

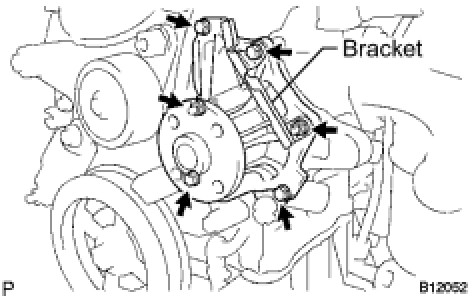

Install the water pump and clamp bracket with the 4 bolts and 2 nuts.






Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)
