Electrical Diagrams

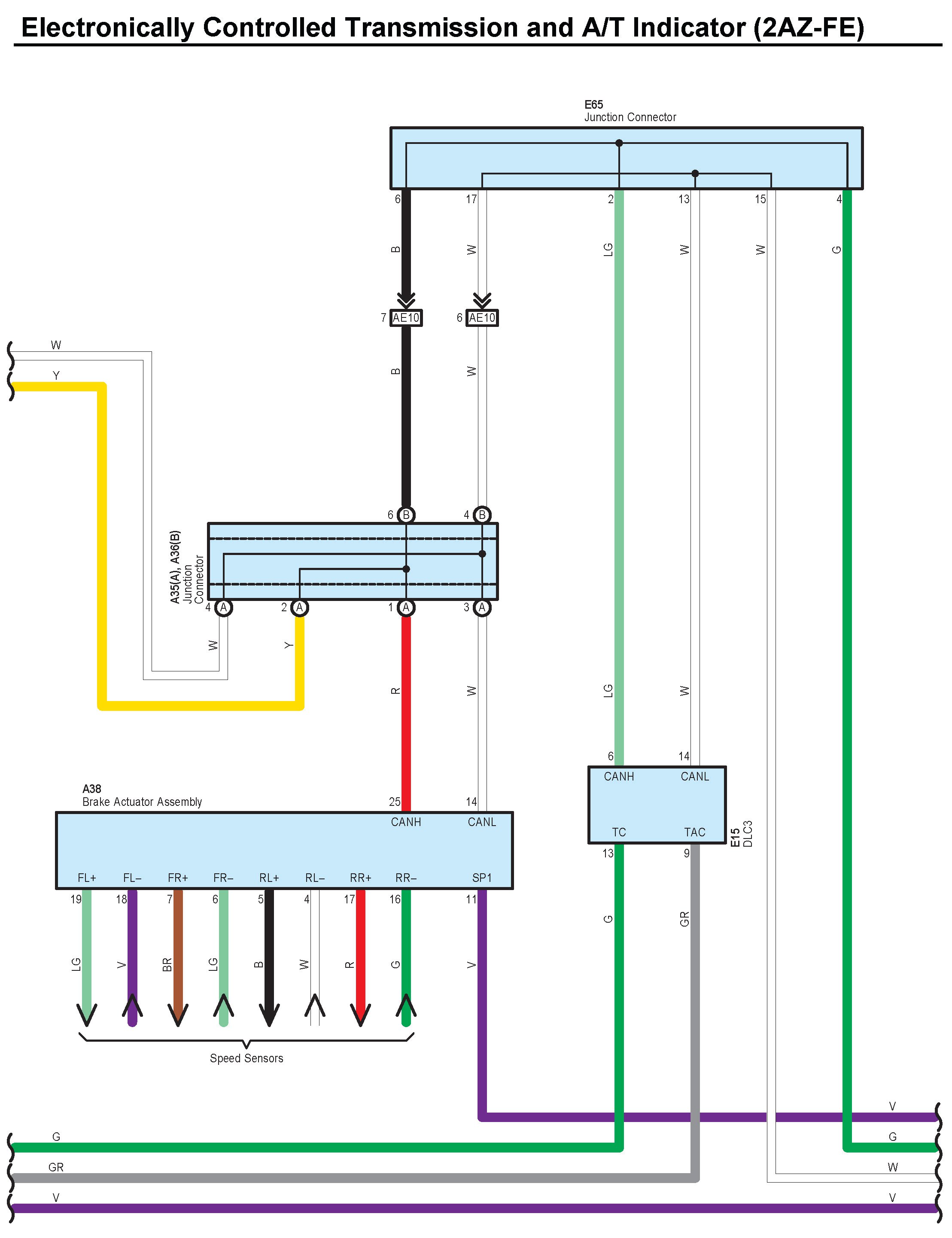

Electronically Controlled Transmission and A/T Indicator Part 1:

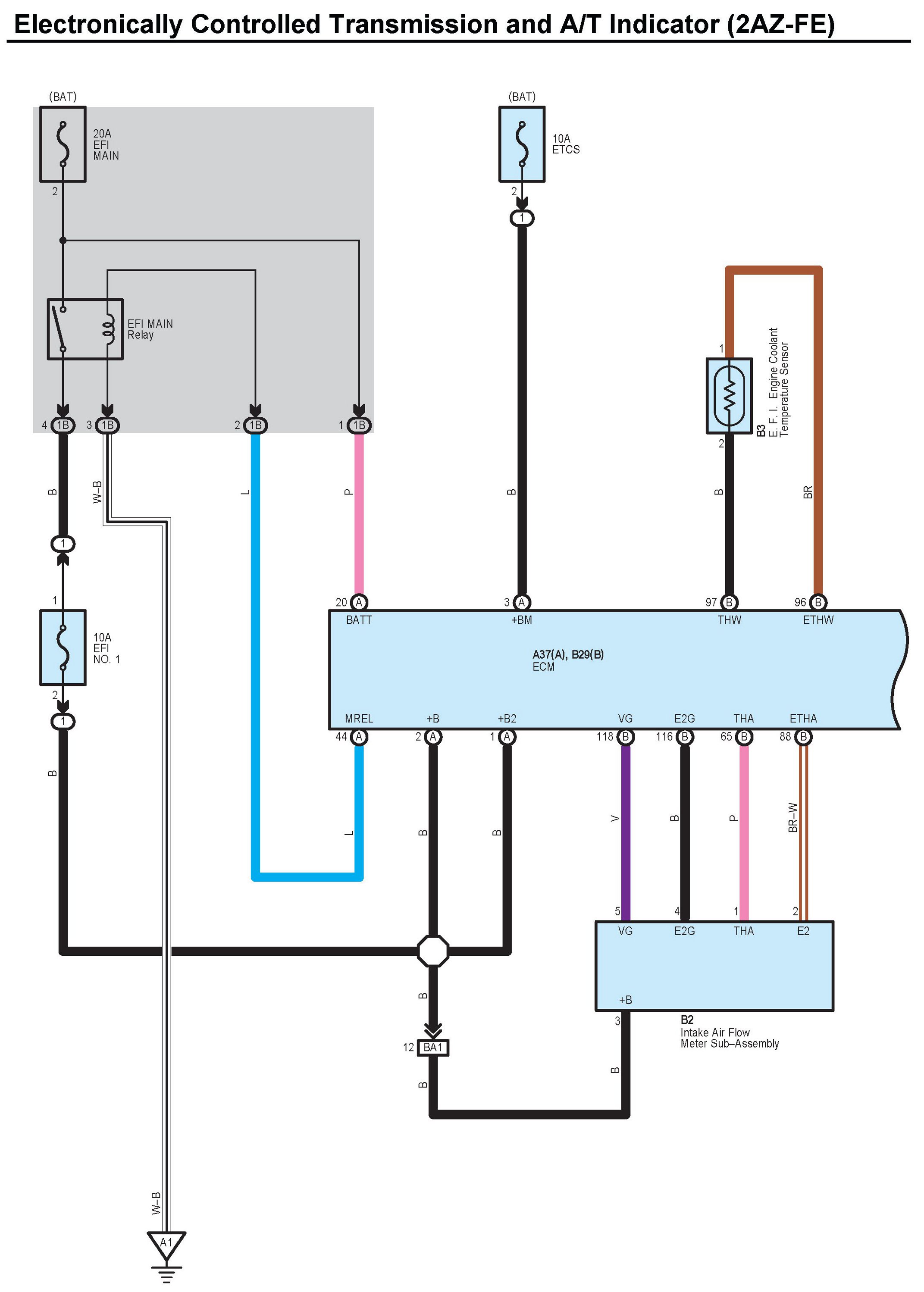

Electronically Controlled Transmission and A/T Indicator Part 2:

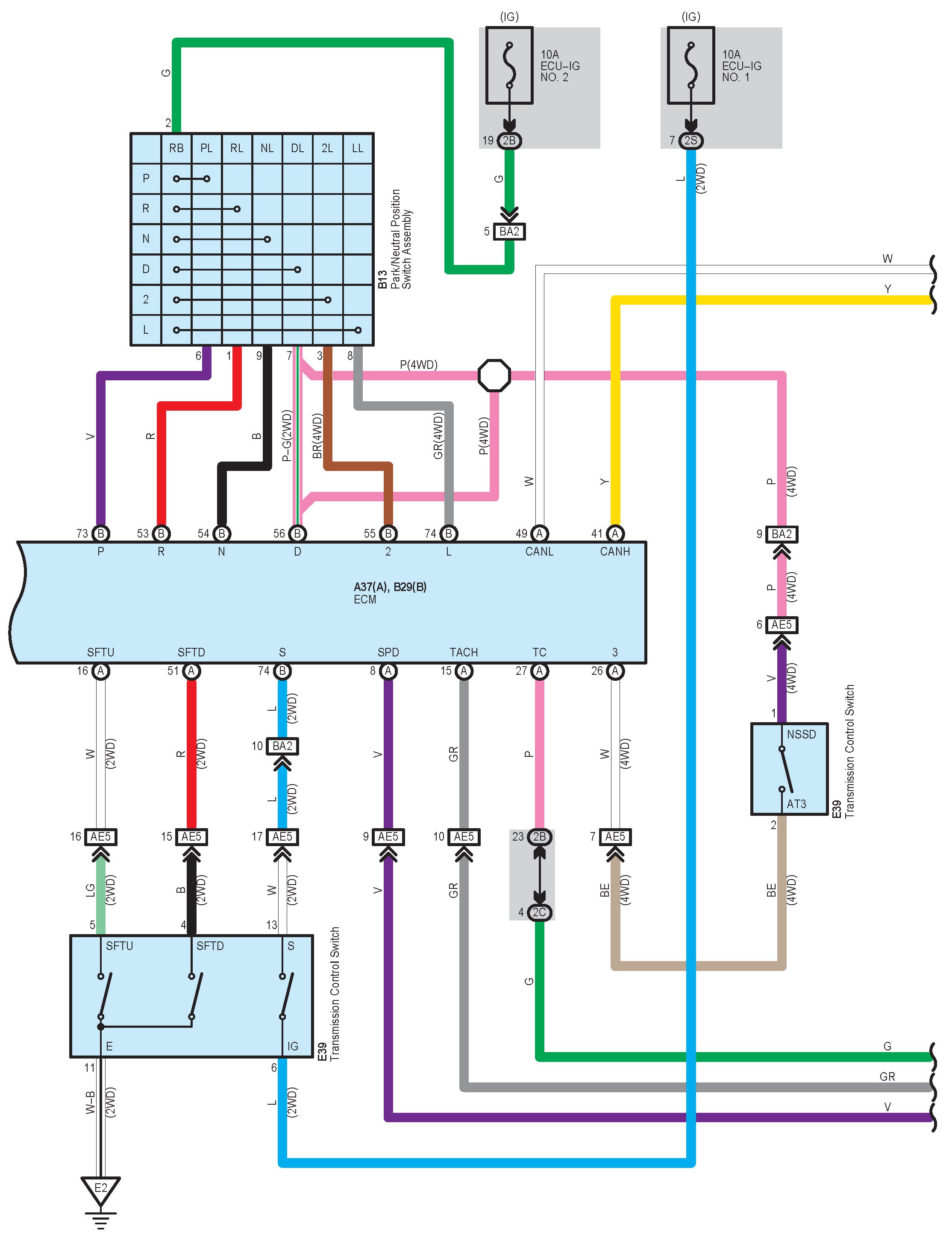

Electronically Controlled Transmission and A/T Indicator Part 3:

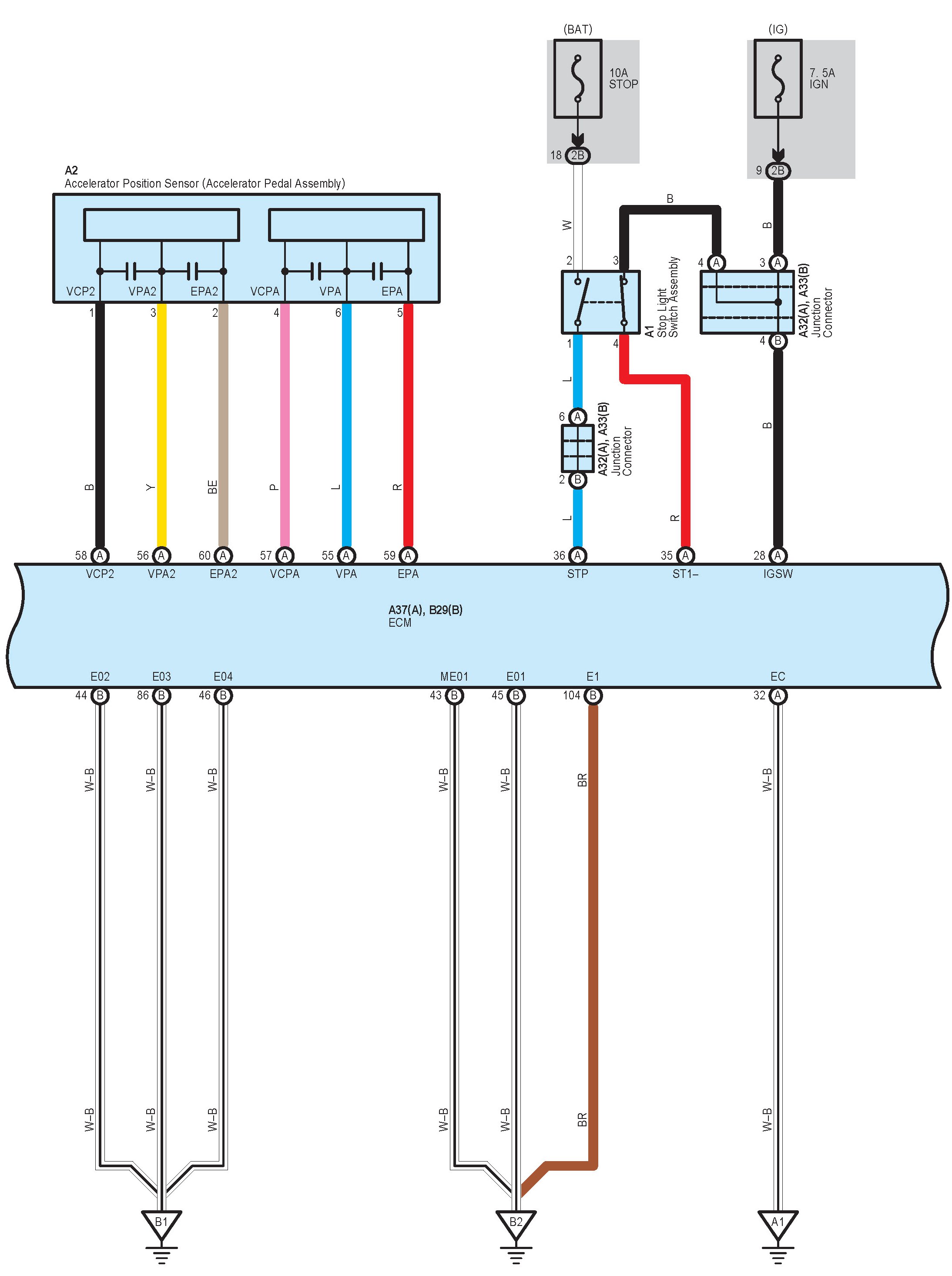

Electronically Controlled Transmission and A/T Indicator Part 4:

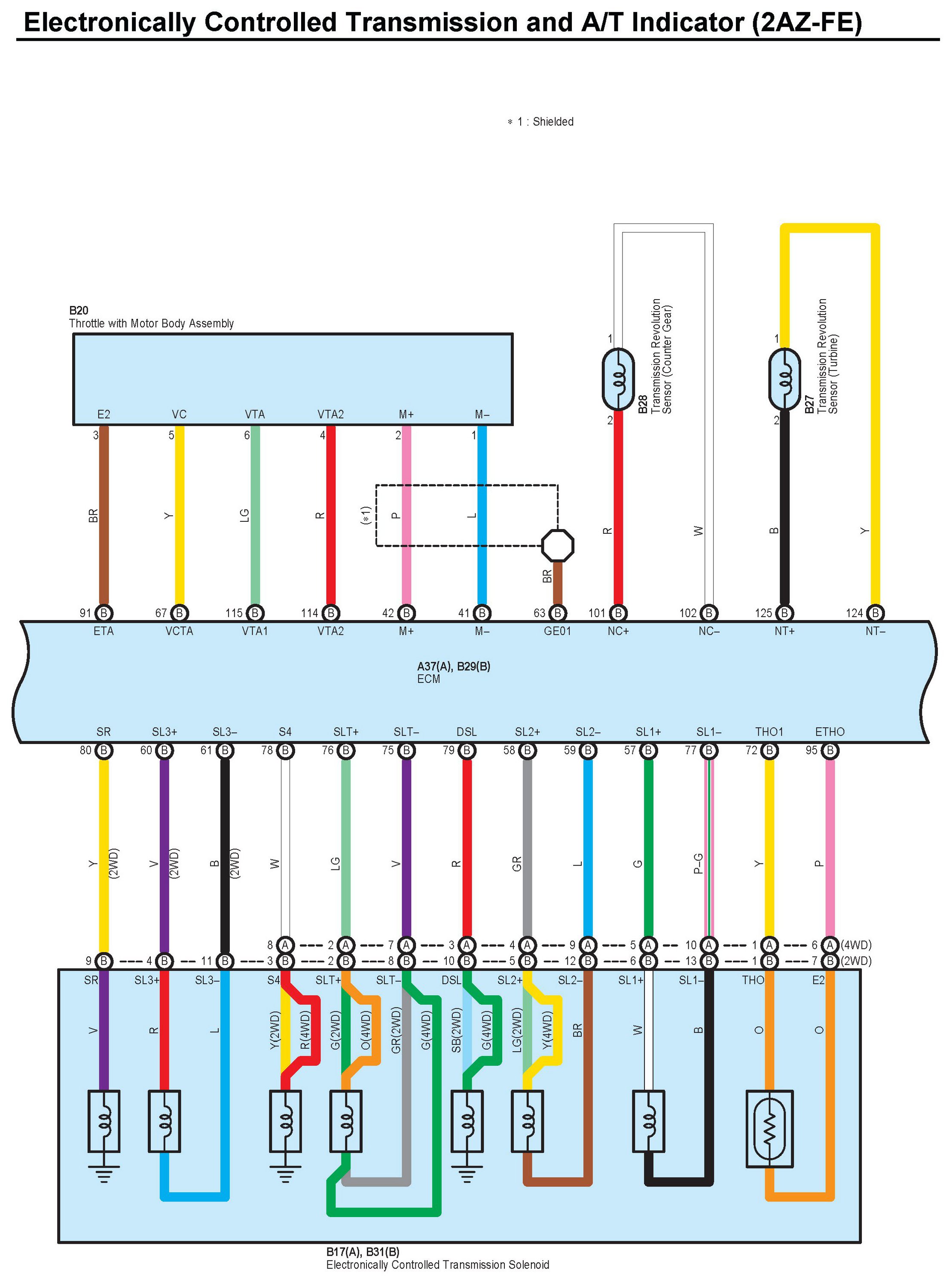

Electronically Controlled Transmission and A/T Indicator Part 5:

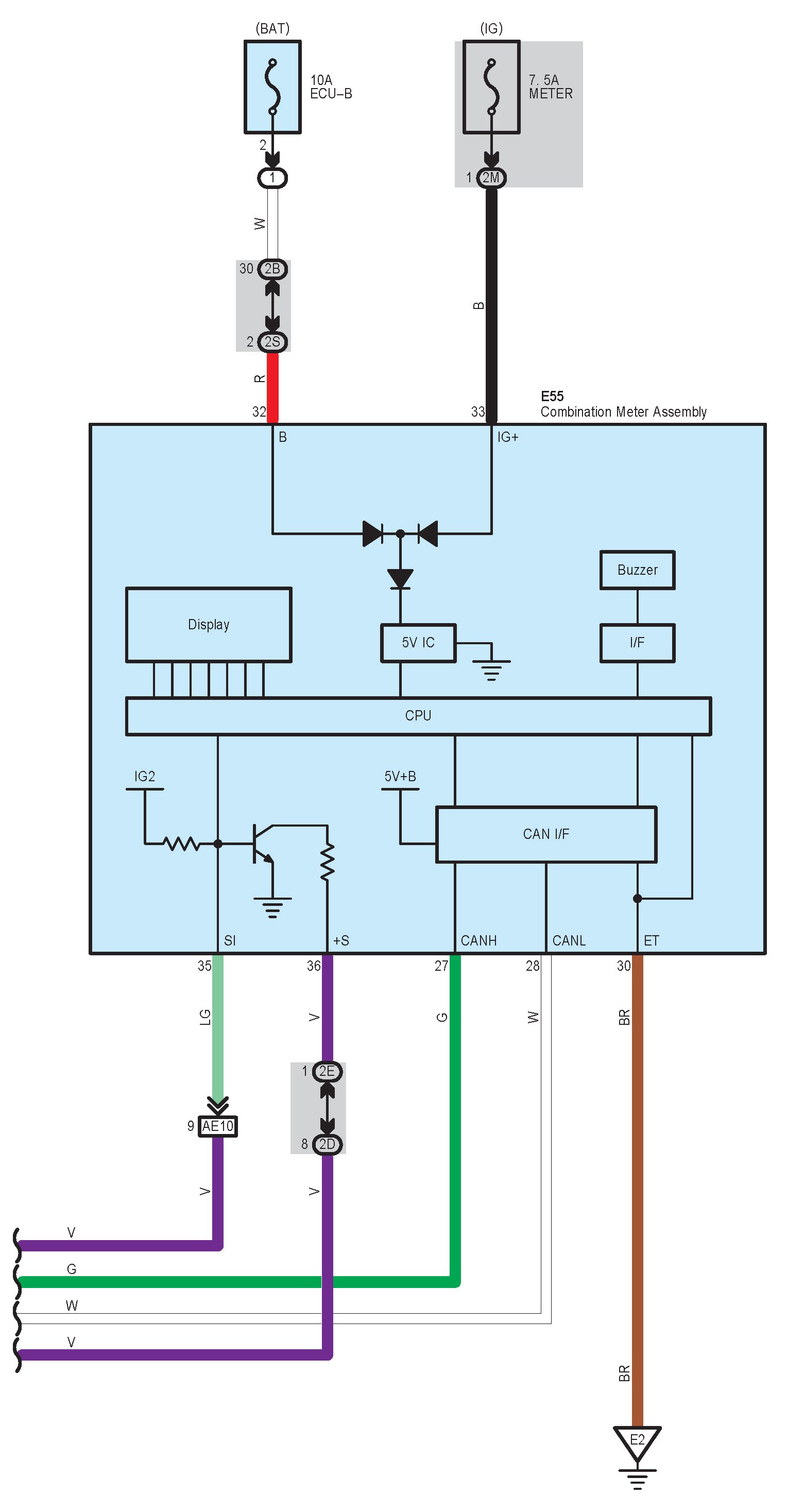

Electronically Controlled Transmission and A/T Indicator Part 6:

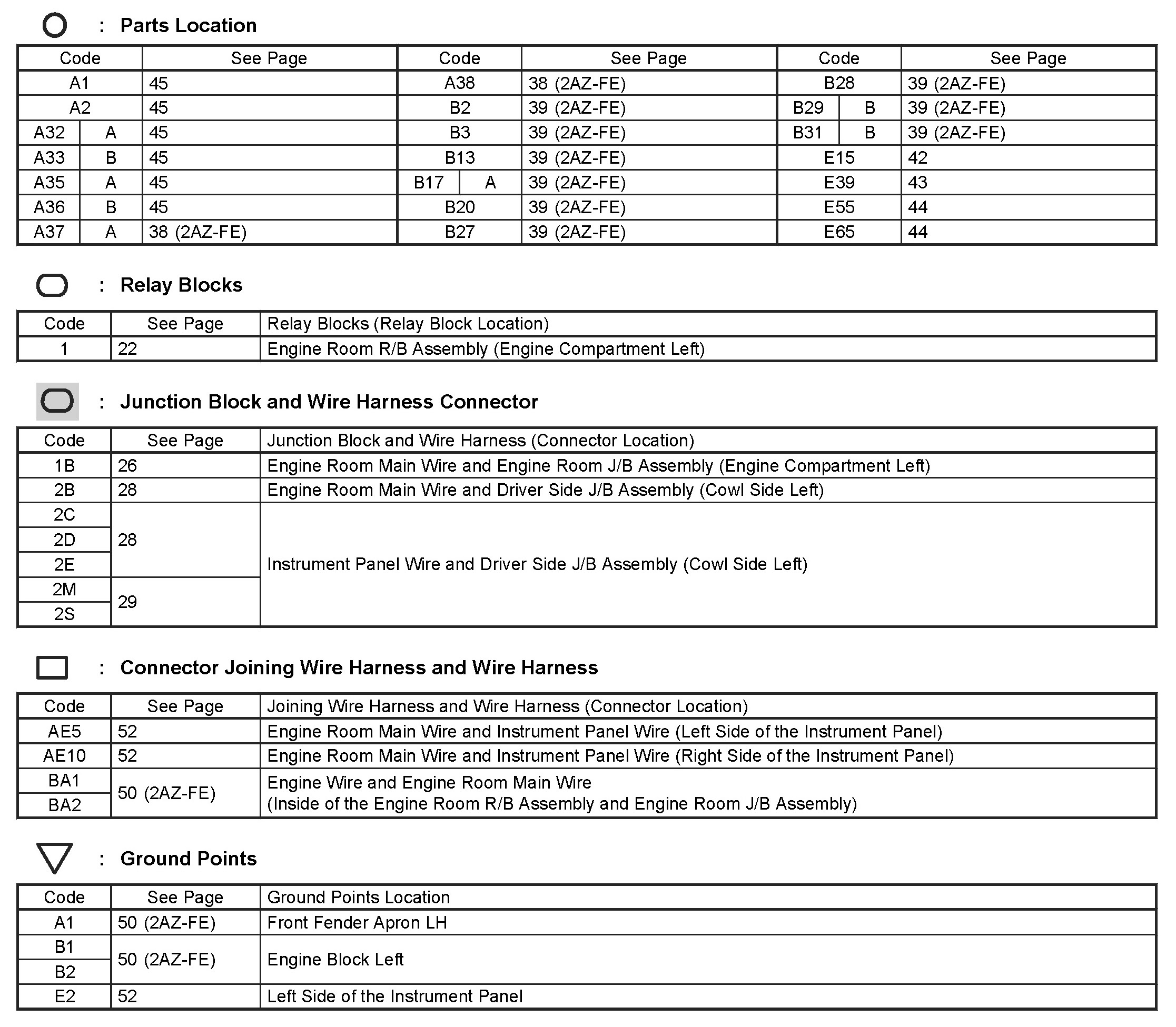

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
