Heated Oxygen Sensor: Removal: Removal

REMOVE ENGINE UNDER COVER ASSEMBLY . Refer to REMOVAL - Step 7
REMOVE NO. 1 ENGINE UNDER COVER . Refer to REMOVAL - Step 8
REMOVE NO. 2 ENGINE UNDER COVER . Refer to REMOVAL - Step 9
REMOVE FRONT FLOOR COVER LH
1. Remove the 3 clamps, 6 bolts and front floor cover LH.

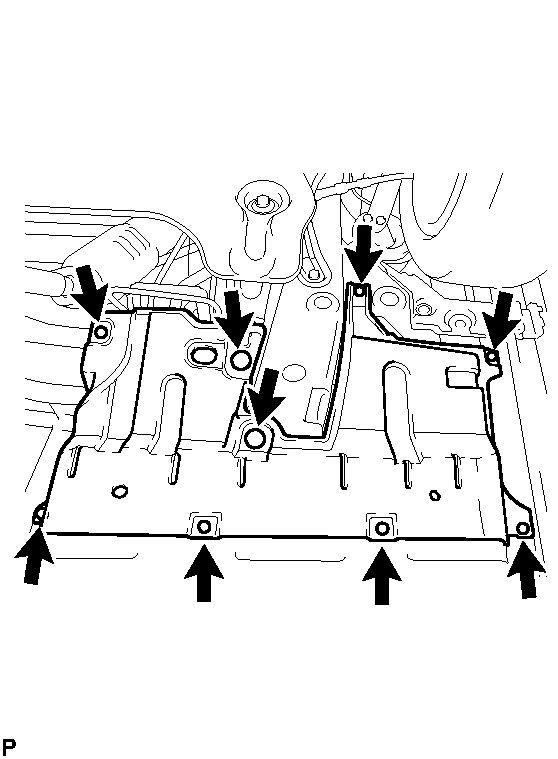

  Fig 1: Identifying Front Floor Cover LH Clamps & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD) . Refer to REMOVAL - Step 1
REMOVE TAIL EXHAUST PIPE ASSEMBLY . Refer to REMOVAL - Step 4
REMOVE CENTER EXHAUST PIPE ASSEMBLY . Refer to REMOVAL - Step 6
REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY . Refer to REMOVAL - Step 7
REMOVE FRONT EXHAUST PIPE ASSEMBLY . Refer to REMOVAL - Step 9
REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
1. Using SST, remove the heated oxygen sensor from the front No. 3 exhaust pipe sub-assembly.

  Fig 2: Identifying SST & Heated Oxygen Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
1. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

  Fig 3: Identifying SST, Heated Oxygen Sensor & Front Exhaust Pipe Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
