Center Airbag Sensor Assembly: Components: Illustration

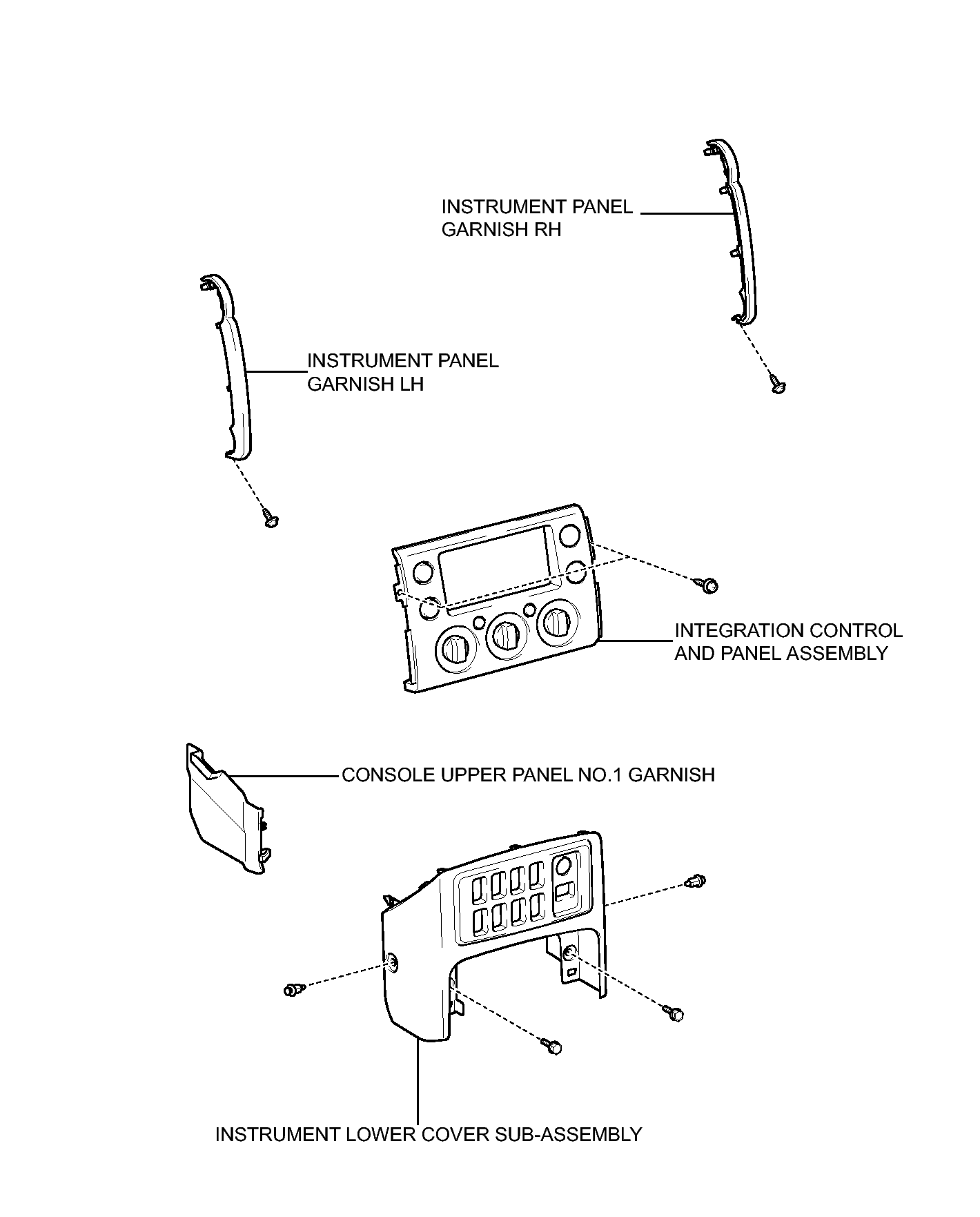

Fig 1: Identifying Center Airbag Sensor Assembly Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

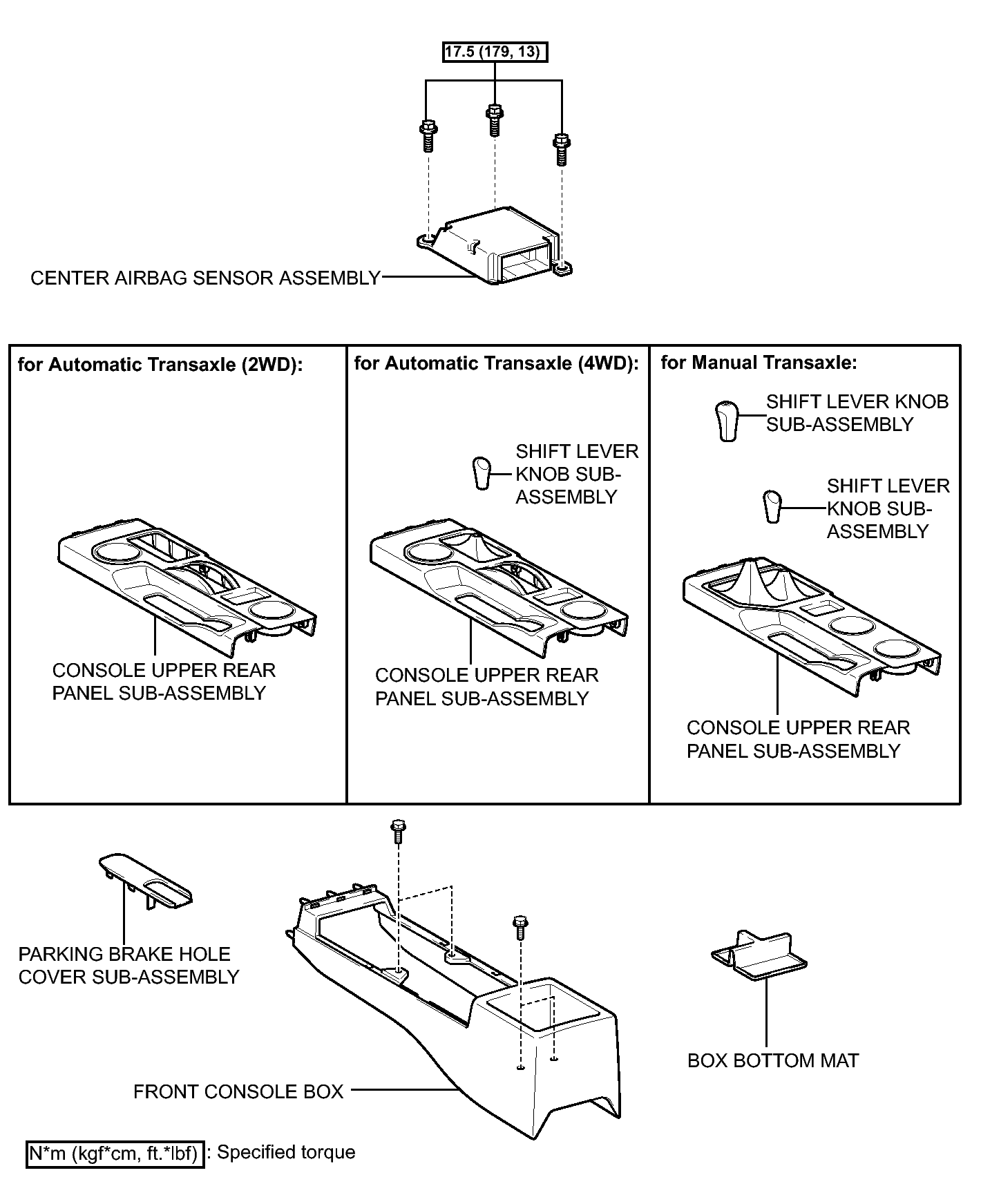

Fig 1: Identifying Center Airbag Sensor Assembly Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
