Cruise Control Main Switch: Removal: Removal
WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:- w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.
Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal
Condition Waiting Time Vehicle enrolled in safety connect system 6 minutes Vehicle not enrolled in safety connect system 1 minute - When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- w/ Navigation System:
- REMOVE LOWER NO. 3 STEERING WHEEL COVER . Refer to REMOVAL - Step 2
- REMOVE LOWER NO. 2 STEERING WHEEL COVER . Refer to REMOVAL - Step 3
- REMOVE STEERING PAD . Refer to REMOVAL - Step 4

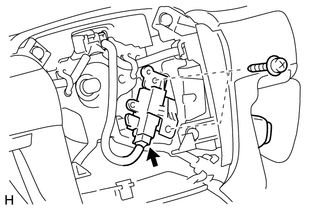

- REMOVE CRUISE CONTROL MAIN SWITCH
- Disconnect the connector.
- Remove the 2 screws and switch.
