Steering Wheel: Components: Illustration

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (1 Of 5)
GTY319644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

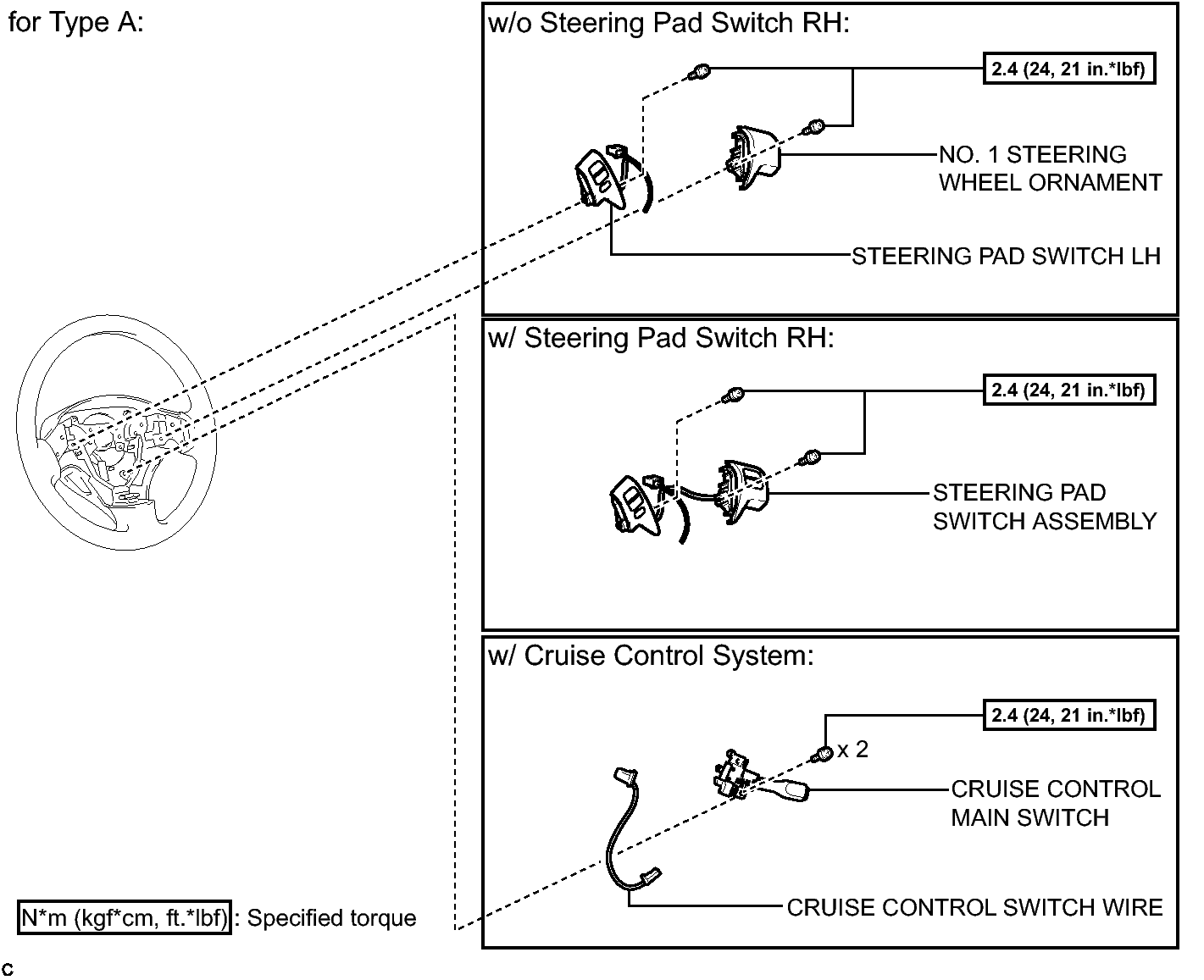

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (2 Of 5)
GTY316981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

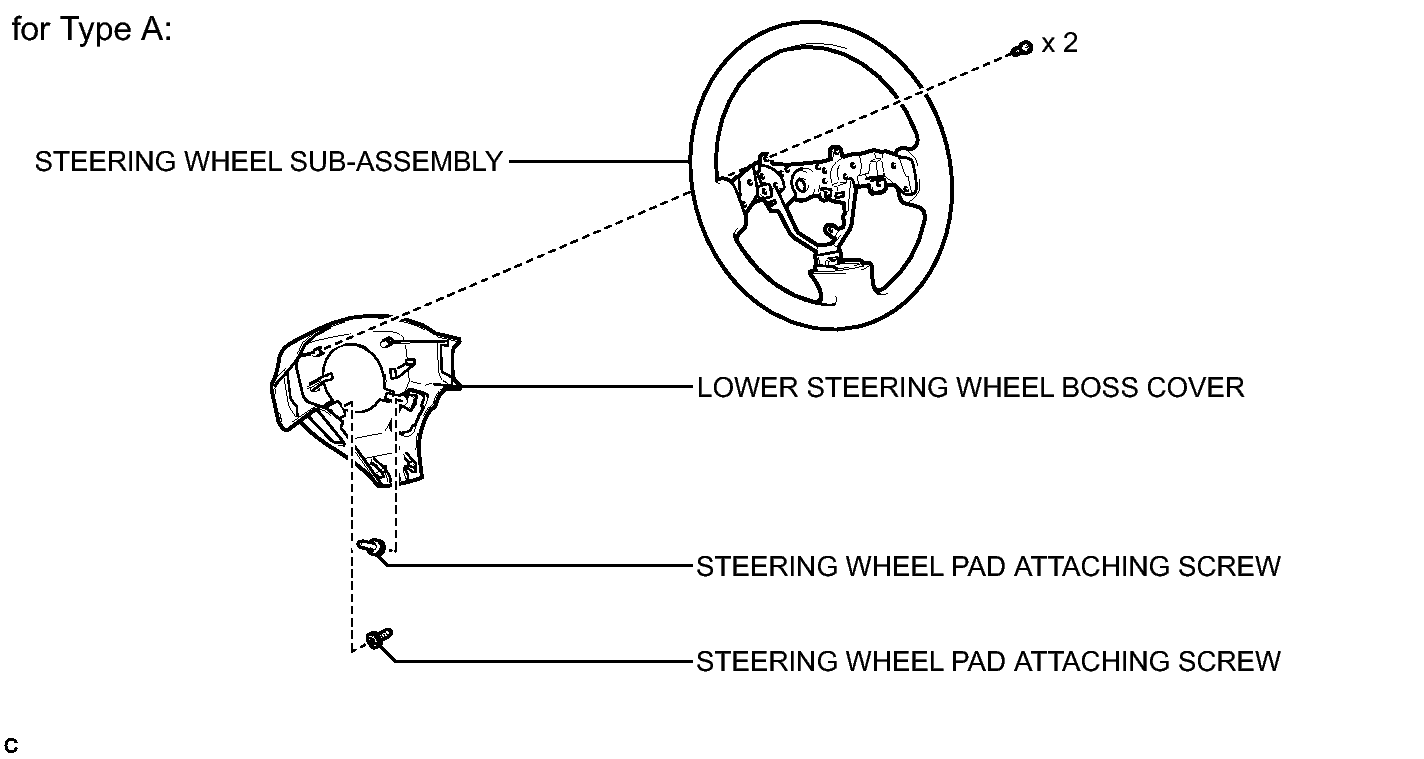

Fig 1: Identifying Steering Wheel Replacement Components (3 Of 5)
GTY315256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (4 Of 5)
GTY317976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

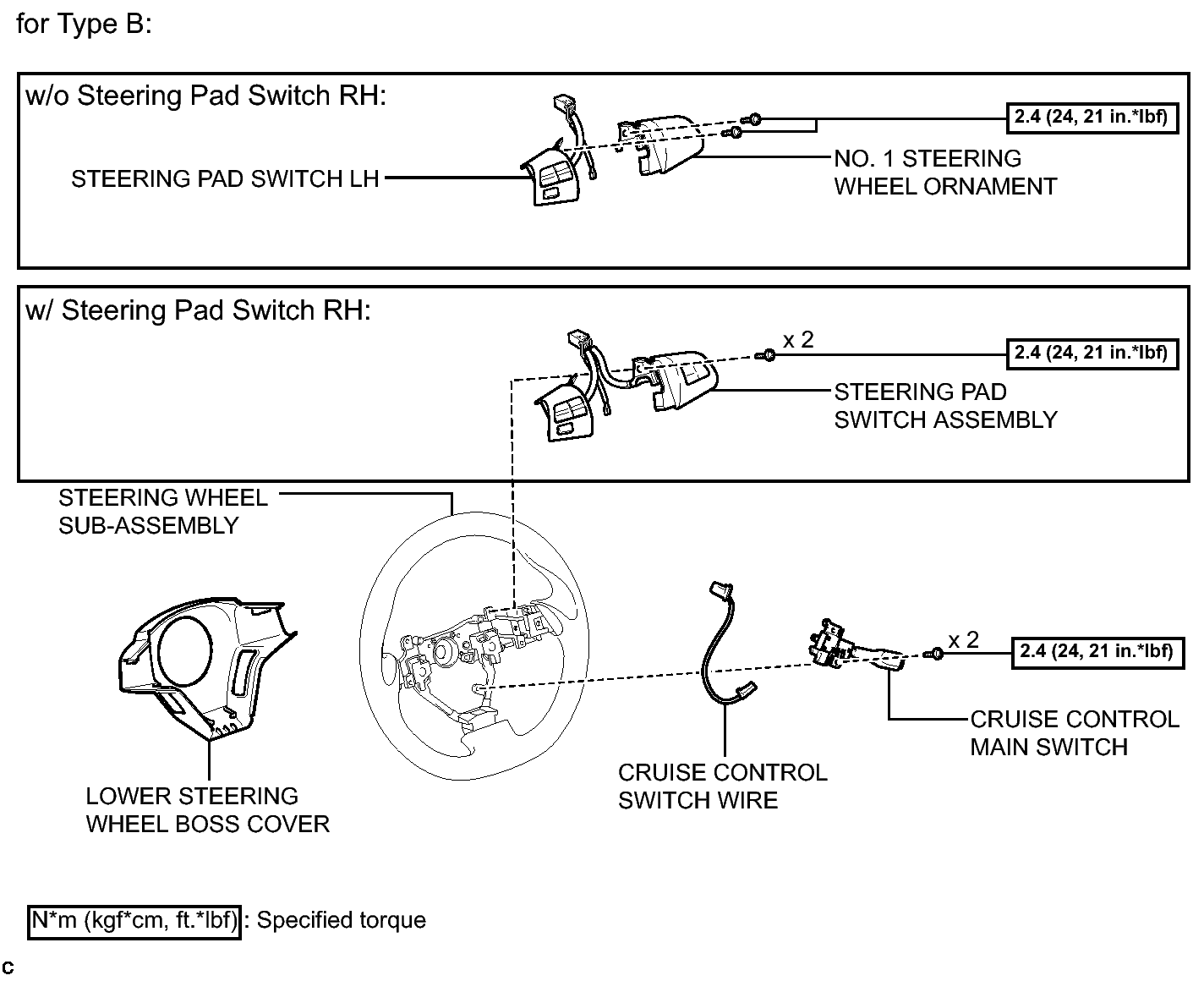

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (5 Of 5)
GTY321823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
