Spiral Cable: Components: Illustration

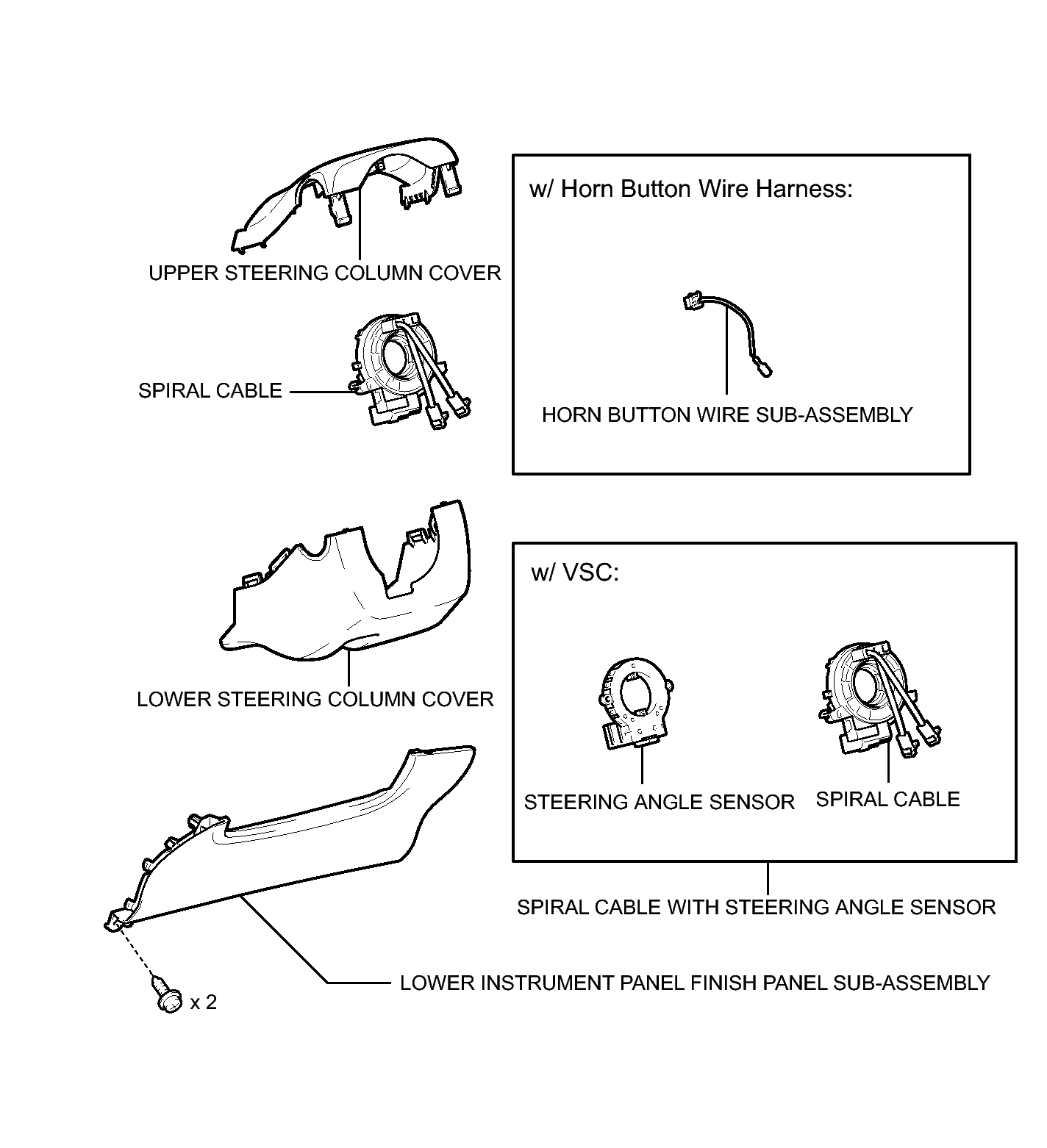

Fig 1: Identifying Spiral Cable Replacement Components
GTY291847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
